Tool # 23928

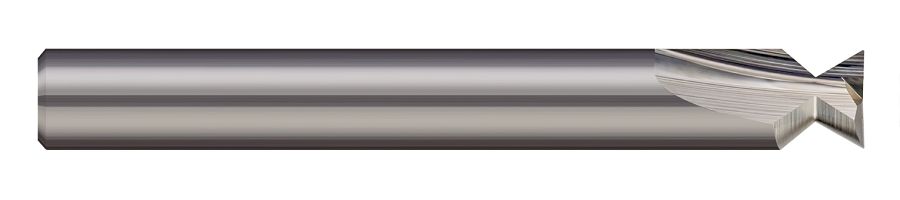

Dovetail Cutters - Parker Hannifin O-Ring Dovetail Cutters WITHOUT Drop Hole Allowance, Specialty Profiles
- O-Ring X-Section: 0.2100"
- Cutter Diameter: 0.1710"
- Length of Cut: 0.1760"
- Corner Radius: 0.0310" (1/32)
- Neck Diameter: 0.0480"
- Tool #: 23928
- Quantity Available: 55
- Price: $81.90
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Dovetailing
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)
TOOL DIMENSIONS
- O-Ring X-Section 0.2100"
- Cutter Diameter 0.1710"
- Length of Cut 0.1760"
- Corner Radius 0.0310" (1/32)
- Neck Diameter 0.0480"
- Shank Diameter 0.1875" (3/16)
- Included Angle 48
- Overall Length 2.0000" (2)
- Flutes 2
- Coating UN
- Profile Dovetail
- Catalog Page 417
