Hexalobe Cutters - Countersinks
Specialty Profiles
Optimize your precision machining with our Hexalobe Cutter Preparer, featuring a 140° tip angle and 120° chamfer angle. Crafted from solid carbide, it ensures high precision cuts with h6 shank tolerance. Center cutting design, CNC ground in the USA for top performance.

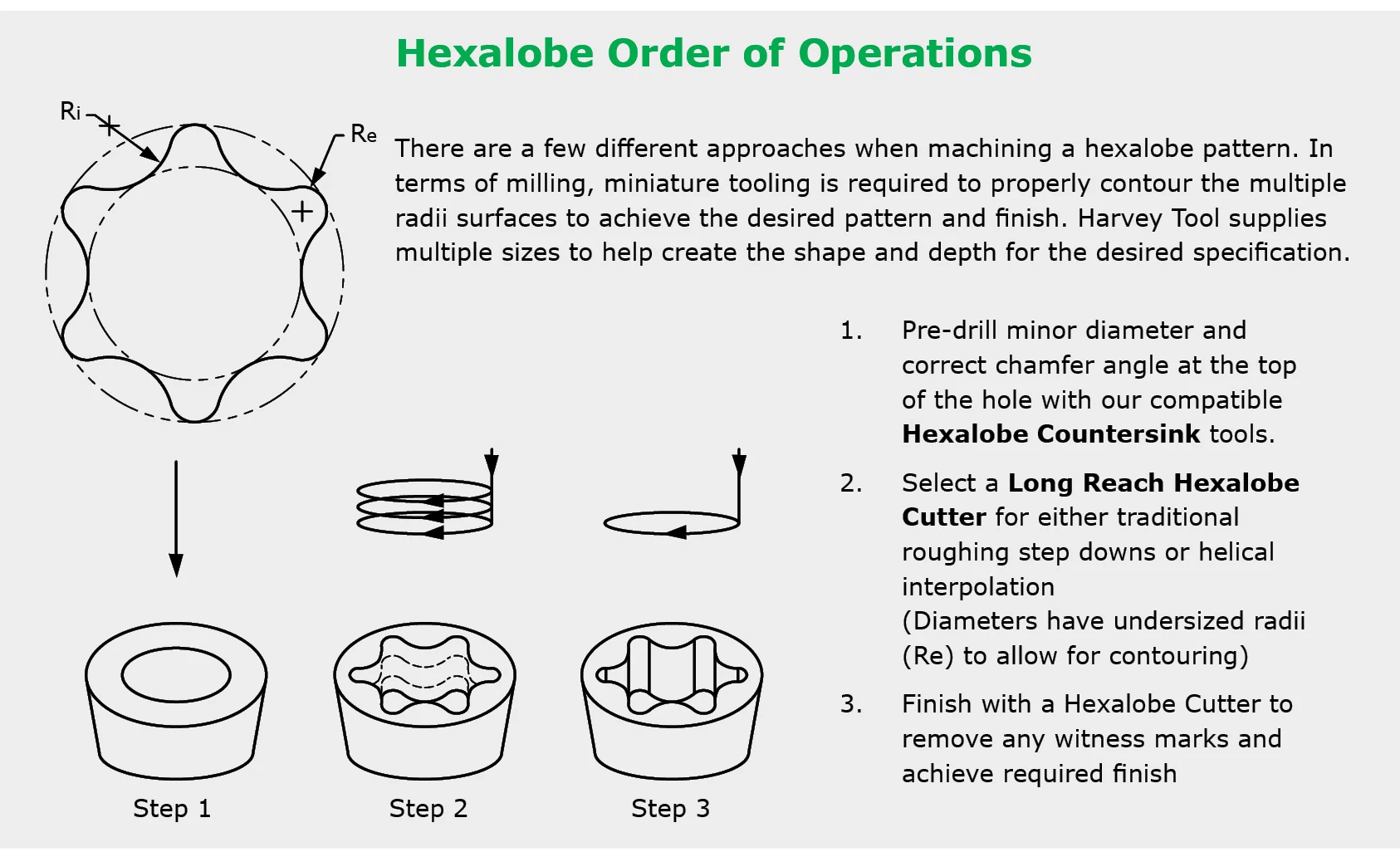

- Designed to be used before a Hexalobe cutter

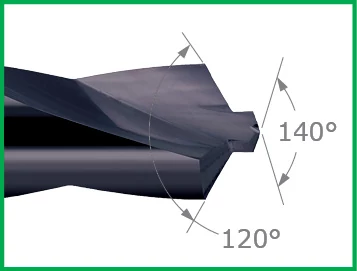

- 140° included tip angle
- 120° included chamfer angle
- h6 shank tolerance for high precision tool holders
- Center cutting
- Solid carbide
- CNC ground in the USA
Countersinking
Advanced Search
| HEXALOBULAR SOCKET NUMBER | DRILL DIAMETER |
PILOT LENGTH | PILOT FLUTE LENGTH |
SHANK DIAMETER |
OAL | AlTiN NANO COATED | Add to Cart | |
|---|---|---|---|---|---|---|---|---|
| D1 +.0015"+.0005" |
L4 +.005"-.000" |
L2 | D2(h6) | L1 | 2 FL | PRICE | ||
| HEXALOBULAR SOCKET NUMBER | DRILL DIAMETER |
PILOT LENGTH | PILOT FLUTE LENGTH |
SHANK DIAMETER |
OAL | AlTiN NANO COATED | Add to Cart | |
|---|---|---|---|---|---|---|---|---|
| D1 +.001"-.001" |
L4 +.010"-.000" |
L2 | D2(h6) | L1 | 2 FL | PRICE | ||
Running Parameters
SIM Files / Tool Libraries
