Chamfer Cutters - Cobalt - Pointed

Specialty Profiles
Specialty Profiles

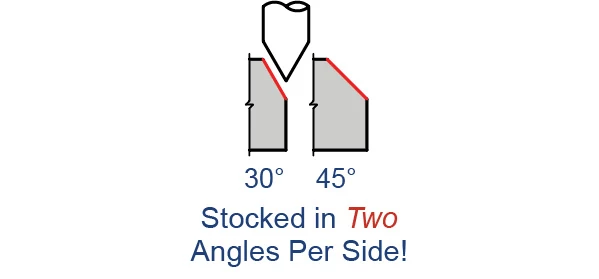

Harvey Tool's offering of Chamfer Cutters - Cobalt - Pointed are fully ground in the USA out of M-42 steel to a pointed style, yielding web thickness at the tip. This offering includes tools with 4 flutes and either a 30° angle per side or a 45° angle per side.

  • 4 flutes (2 flutes to center)
  • M-42 steel (8% cobalt)

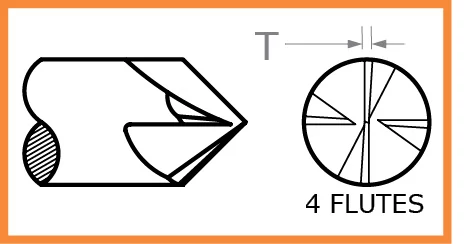

  • Type I pointed style ground to a point, yielding web thickness at tip (T)
  • CNC ground in the USA

Advanced Search

ANGLE PER SIDE LENGTH OF CUT TIP SHANK DIA. OAL UNCOATED Add to Cart Default Sort
A1
+30'-30'
L2 T(Max.) D2 L1 4 FL PRICE
30° .217 .010 1/4 2 18116 $38.80 00000001
30° .325 .010 3/8 2-1/2 18124 $46.70 00000002
30° .433 .010 1/2 3 18132 $60.20 00000003
45° .125 .010 1/4 2 18016 $38.80 00000004
45° .188 .010 3/8 2-1/2 18024 $46.70 00000005
45° .250 .010 1/2 3 18032 $60.20 00000006
