Drill/End Mills - Cobalt - Mill Style - 2 & 4 Flute

Specialty Profiles
Drill/End Mills - Cobalt - Mill Style - 2 & 4 Flute

Specialty Profiles

Featuring a 90° included angle point, this fully stocked Harvey Tool offering of Drill / End Mills - Cobalt - Mill Style - 2 & 4 Flute are recommended for chamfering, O.D. Milling, and light duty spotting operations.

  • M-42 steel (8% Cobalt)
  • 90° included angle point
  • Weldon flat
  • CNC ground in the USA

Advanced Search

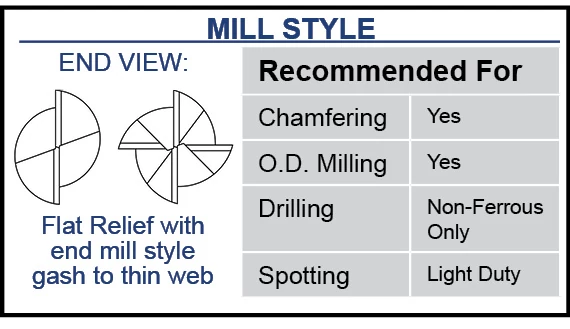

*2 flute style is two flutes to center. 4 flute style is two flutes to center and two flutes cut back.
INCLUDED ANGLE CUTTER DIAMETER LENGTH OF CUT FLUTES* SHANK DIAMETER OVERALL LENGTH UNCOATED Add to Cart Default Sort
A
+1°-1°
D1
+.000"-.002"
L2
+.030"-.000"
  D2 L1 TOOL # PRICE
90° 1/8 3/8 4 3/8 2-5/16 14308 $60.90 00000001
90° 1/8 3/8 2 3/8 2-5/16 14308-2 00000002
90° 3/16 1/2 4 3/8 2-3/8 14312 $60.90 00000003
90° 1/4 5/8 4 3/8 2-1/2 14316 $60.90 00000004
90° 1/4 5/8 2 3/8 2-1/2 14316-2 00000005
90° 5/16 3/4 4 3/8 2-1/2 14320 $60.90 00000006
90° 3/8 3/4 4 3/8 2-1/2 14324 $60.90 00000007
90° 3/8 3/4 2 3/8 2-1/2 14324-2 00000008
90° 7/16 1 4 3/8 2-11/16 14328 $71.80 00000009
90° 1/2 1-1/4 4 1/2 3-1/4 14332 $71.80 00000010
90° 1/2 1-1/4 2 1/2 3-1/4 14332-2 00000011
90° 5/8 1-5/8 4 5/8 3-3/4 14340 $105.00 00000012
90° 3/4 1-5/8 4 3/4 3-7/8 14348 $123.40 00000013
90° 1 1-7/8 4 3/4 4-1/8 14364-A $179.80 00000014
90° 1 2 4 1 4-1/2 14364 $179.80 00000015
