Drill/End Mills - Helical Tip - 2 Flute

Specialty Profiles
Drill/End Mills - Helical Tip - 2 Flute

Specialty Profiles

Designed for chamfering, milling, and some spotting applications (but not recommended for drilling), this 2 flute offering of Drill / End Mills - Helical Tip - 2 Flute features a variable helix design on the O.D. to reduce chatter and harmonics, while increasing material removal rates (MRR).

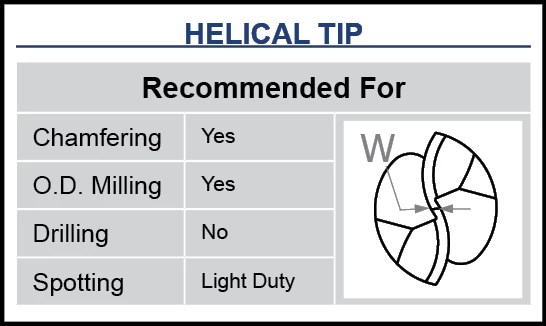

  • Designed for chamfering, milling, and some spotting applications
  • Not recommended for drilling
  • 2 flutes

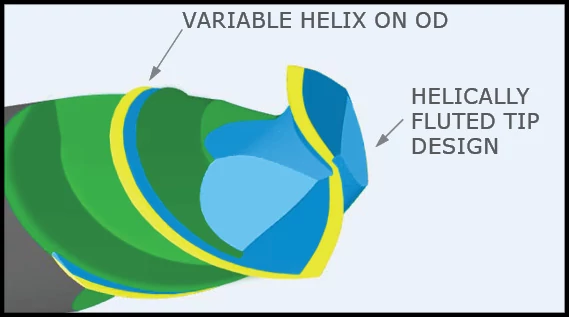

  • Specialized helically fluted tip design for superior performance, surface finish and chip evacuation
  • Variable helix design on OD (approx. 35°) reduces chatter and harmonics and increases material removal rates
  • AlTiN Nano coating for superior performance in ferrous and difficult to machine materials
  • TiB2 coating for outstanding performance in non-ferrous materials due to its extremely low affinity to aluminum
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Solid carbide
  • CNC ground in the USA

Advanced Search

INCL.

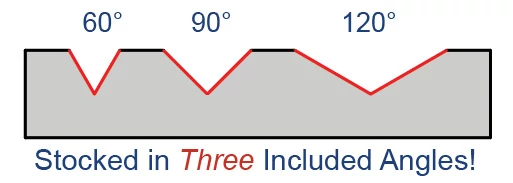

ANGLE		 CUTTER
DIAMETER		 LENGTH
OF CUT		 WEB THICKNESS SHANK
DIAMETER		 OVERALL
LENGTH		 AlTiN NANO COATED TiB2 COATED Add to Cart Default Sort
A
+1°-1°
 D1
+.000"-.002"
 L2
+.030"-.000"
 W D2(h6) L1 2 FL PRICE 2 FL PRICE
60° 1/32 3/32 .003 1/8 1-1/2 872502-C6 $50.20 872502-C8 $48.40 00000001
60° 1/16 3/16 .005 1/8 1-1/2 872504-C6 $50.20 872504-C8 $48.40 00000002
60° 1/8 1/2 .008 1/8 1-1/2 872508-C6 $50.20 872508-C8 $50.20 00000003
60° 3/16 5/8 .009 3/16 2 872512-C6 $55.50 872512-C8 $55.50 00000004
60° 1/4 3/4 .009 1/4 2-1/2 872516-C6 $70.60 872516-C8 $70.60 00000005
60° 3/8 7/8 .012 3/8 2-1/2 872524-C6 $87.30 872524-C8 $87.30 00000006
60° 1/2 1 .012 1/2 3 872532-C6 $111.60 872532-C8 $111.60 00000007
90° 1/32 3/32 .003 1/8 1-1/2 859602-C6 $45.60 859602-C8 $43.90 00000008
90° 1/16 3/16 .005 1/8 1-1/2 859604-C6 $45.60 859604-C8 $43.90 00000009
90° 5/64 1/4 .006 1/8 1-1/2 859605-C6 $47.80 859605-C8 $46.00 00000010
90° 3/32 3/8 .007 1/8 1-1/2 859606-C6 $47.80 859606-C8 $46.00 00000011
90° 1/8 1/2 .008 1/8 1-1/2 859608-C6 $50.20 859608-C8 $50.20 00000012
90° 3/16 5/8 .009 3/16 2 859612-C6 $55.50 859612-C8 $55.50 00000013
90° 1/4 3/4 .009 1/4 2-1/2 859616-C6 $70.60 859616-C8 $70.60 00000014
90° 3/8 7/8 .012 3/8 2-1/2 859624-C6 $87.30 859624-C8 $87.30 00000015
90° 1/2 1 .012 1/2 3 859632-C6 $111.60 859632-C8 $111.60 00000016
120° 1/8 1/2 .008 1/8 1-1/2 847708-C6 $50.20 847708-C8 $50.20 00000017
120° 3/16 5/8 .009 3/16 2 847712-C6 $55.50 847712-C8 $55.50 00000018
120° 1/4 3/4 .009 1/4 2-1/2 847716-C6 $70.60 847716-C8 $70.60 00000019
120° 3/8 7/8 .012 3/8 2-1/2 847724-C6 $87.30 847724-C8 $87.30 00000020
120° 1/2 1 .012 1/2 3 847732-C6 $111.60 847732-C8 $111.60 00000021
