Drill/End Mills - Mill Style - 2 Flute

Specialty Profiles
Drill/End Mills - Mill Style - 2 Flute

Specialty Profiles

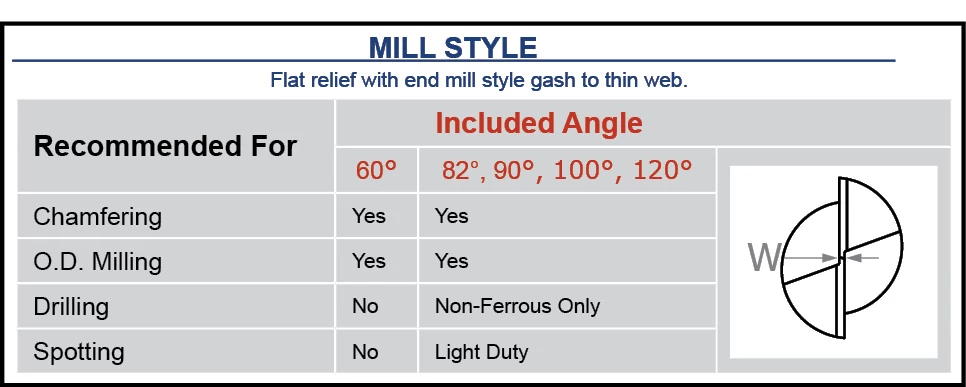

Designed for chamfering, milling, and some spotting applications, this Harvey Tool offering of fully stocked Drill / End Mills - Mill Style - 2 Flute is offered in 5 included angles. Choose between uncoated, AlTiN coated, and TiB2 coated styles.

  • Designed for chamfering, milling, and some spotting applications
  • Not recommended for drilling steel
  • 2 flutes
  • Solid carbide
  • CNC ground in the USA

Advanced Search

INCL.
ANGLE		 CUTTER
DIA.		 LOC WEB THICKNESS SHANK
DIA.		 OAL UNCOATED AlTiN COATED TiB2 COATED Add to Cart Default Sort
A
+1°-1°
 D1
+.000"-.002"
 L2
+.030"-.000"
 W D2 L1 2 FL PRICE 2 FL PRICE 2 FL PRICE
60° 1/32 3/32 .0030 1/8 1-1/2 991702 $31.30 991702-C3 $36.20 00000001
60° 1/16 3/16 .0050 1/8 1-1/2 991704 $31.30 991704-C3 $36.20 00000002
60° 3/32 3/8 .0050 1/8 1-1/2 991706 $31.30 991706-C3 $36.20 00000003
60° 1/8 1/2 .0050 1/8 1-1/2 991708 $31.30 991708-C3 $36.20 991708-C8 $38.50 00000004
60° 5/32 9/16 .0060 3/16 2 991710 $32.50 991710-C3 $37.80 00000005
60° 3/16 5/8 .0060 3/16 2 991712 $32.50 991712-C3 $37.80 991712-C8 $39.70 00000006
60° 1/4 3/4 .0060 1/4 2-1/2 991716 $45.90 991716-C3 $53.10 991716-C8 $53.60 00000007
60° 5/16 13/16 .0070 5/16 2-1/2 991720 $48.30 991720-C3 $56.70 00000008
60° 3/8 7/8 .0080 3/8 2-1/2 991724 $57.80 991724-C3 $67.30 991724-C8 $77.70 00000009
60° 1/2 1 .0080 1/2 3 991732 $91.60 991732-C3 $105.80 991732-C8 $115.00 00000010
60° 5/8 1-1/4 .0090 5/8 3-1/2 991740 $140.00 991740-C3 $154.20 00000011
60° 3/4 1-1/2 .0100 3/4 4 991748 $212.30 991748-C3 $227.70 00000012
82° 1/16 3/16 .0050 1/8 1-1/2 949404 $33.30 949404-C3 $38.20 00000013
82° 3/32 3/8 .0050 1/8 1-1/2 949406 $33.30 949406-C3 $38.20 00000014
82° 1/8 1/2 .0050 1/8 1-1/2 949408 $33.30 949408-C3 $38.20 949408-C8 $40.50 00000015
82° 3/16 5/8 .0060 3/16 2 949412 $34.20 949412-C3 $39.50 00000016
82° 1/4 3/4 .0060 1/4 2-1/2 949416 $48.60 949416-C3 $55.80 949416-C8 $56.30 00000017
82° 5/16 13/16 .0070 5/16 2-1/2 949420 $50.70 949420-C3 $59.10 00000018
82° 3/8 7/8 .0080 3/8 2-1/2 949424 $61.20 949424-C3 $70.70 00000019
82° 1/2 1 .0080 1/2 3 949432 $96.70 949432-C3 $110.90 00000020
90° 1/64 3/64 .0015 1/8 1-1/2 15301-2 $31.30 72201-C3 $36.20 00000021
90° .020 1/16 .0020 1/8 1-1/2 15367-2 $31.30 72220-C3 $36.20 00000022
90° 1/32 3/32 .0030 1/8 1-1/2 15302-2 $31.30 72231-C3 $36.20 72231-C8 $38.50 00000023
90° 1 mm 1/8 .0030 1/8 1-1/2 1531M-2 $31.30 72239-C3 $36.20 00000024
90° .040 1/8 .0030 1/8 1-1/2 15371-2 $31.30 72240-C3 $36.20 00000025
90° 3/64 9/64 .0030 1/8 1-1/2 15303-2 $31.30 72247-C3 $36.20 00000026
90° 1/16 3/16 .0050 1/8 1-1/2 15304-2 $29.80 72262-C3 $34.70 72262-C8 $37.00 00000027
90° 5/64 1/4 .0050 1/8 1-1/2 15305-2 $29.80 72278-C3 $34.70 72278-C8 $37.00 00000028
90° 3/32 3/8 .0050 1/8 1-1/2 15306-2 $29.80 72293-C3 $34.70 72293-C8 $37.00 00000029
90° 7/64 3/8 .0050 1/8 1-1/2 15307-2 $31.30 72302-C3 $36.20 00000030
90° 3 mm 3/8 .0050 1/8 1-1/2 1533M-2 $31.30 72305-C3 $36.20 00000031
90° 1/8 1/2 .0050 1/8 1-1/2 15308-2 $29.80 72308-C3 $34.70 72308-C8 $37.00 00000032
90° 9/64 9/16 .0060 3/16 2 15309-2 $32.50 72309-C3 $37.80 00000033
90° 5/32 9/16 .0060 3/16 2 15310-2 $32.50 72310-C3 $37.80 00000034
90° 3/16 5/8 .0060 3/16 2 15312-2 $30.80 72312-C3 $36.10 72312-C8 $38.00 00000035
90° 1/4 3/4 .0060 1/4 2-1/2 15316-2 $43.60 72316-C3 $50.80 72316-C8 $51.30 00000036
90° 5/16 13/16 .0070 5/16 2-1/2 15320-2 $45.70 72320-C3 $54.10 72320-C8 $62.10 00000037
90° 3/8 7/8 .0080 3/8 2-1/2 15324-2 $54.70 72324-C3 $64.20 72324-C8 $74.60 00000038
90° 1/2 1 .0080 1/2 3 15332-2 $86.80 72332-C3 $101.00 72332-C8 $110.20 00000039
90° 5/8 1-1/4 .0090 5/8 3-1/2 15340-2 $132.60 72340-C3 $146.80 00000040
90° 3/4 1-1/2 .0100 3/4 4 15348-2 $201.20 72348-C3 $216.60 00000041
100° 1/16 3/16 .0050 1/8 1-1/2 928562 $31.30 928562-C3 $36.20 00000042
100° 3/32 3/8 .0050 1/8 1-1/2 928593 $31.30 928593-C3 $36.20 00000043
100° 1/8 1/2 .0050 1/8 1-1/2 928508 $33.30 928508-C3 $38.20 928508-C8 $40.50 00000044
100° 3/16 5/8 .0060 3/16 2 928512 $34.20 928512-C3 $39.50 00000045
100° 1/4 3/4 .0060 1/4 2-1/2 928516 $48.60 928516-C3 $55.80 928516-C8 $56.30 00000046
100° 5/16 13/16 .0070 5/16 2-1/2 928520 $50.70 928520-C3 $59.10 00000047
100° 3/8 7/8 .0080 3/8 2-1/2 928524 $61.20 928524-C3 $70.70 00000048
100° 1/2 1 .0080 1/2 3 928532 $96.70 928532-C3 $110.90 00000049
120° 1/16 3/16 .0050 1/8 1-1/2 985504 $33.30 985504-C3 $38.20 00000050
120° 3/32 3/8 .0050 1/8 1-1/2 985506 $33.30 985506-C3 $38.20 00000051
120° 1/8 1/2 .0050 1/8 1-1/2 985508 $33.30 985508-C3 $38.20 985508-C8 $40.50 00000052
120° 3/16 5/8 .0060 3/16 2 985512 $34.30 985512-C3 $39.60 00000053
120° 1/4 3/4 .0060 1/4 2-1/2 985516 $48.10 985516-C3 $55.30 985516-C8 $55.80 00000054
120° 5/16 13/16 .0070 5/16 2-1/2 985520 $50.10 985520-C3 $58.50 00000055
120° 3/8 7/8 .0080 3/8 2-1/2 985524 $59.70 985524-C3 $69.20 985524-C8 $79.60 00000056
120° 1/2 1 .0080 1/2 3 985532 $93.30 985532-C3 $107.50 00000057
