End Mills - Ball - Reduced Shank

Miniature End Mills
End Mills - Ball - Reduced Shank

Miniature End Mills

The reduced shank of this offering of Miniature End Mills - Ball - Reduced Shank allows for chucking any depth, while its long length design allows for deep cavity machining. CNC ground from solid carbide, this tool was engineered to maximize rigidity during machining operations.

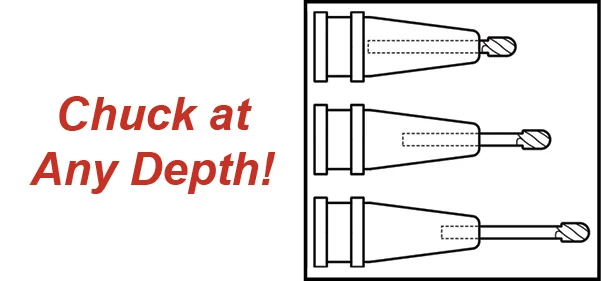

  • Reduced straight shank allows any chucking depth
  • Solid carbide construction for maximum rigidity
  • Long length design for deep cavity machining
  • Length of cut = 1½ x diameter
  • 2 flutes
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Advanced Search

CUTTER DIAMETER LENGTH OF CUT FLUTES SHANK DIAMETER OVERALL LENGTH UNCOATED AlTiN COATED Add to Cart Default Sort
D1
+.000"-.002"
L2
+.030"-.000"
# D2 L1 TOOL # PRICE TOOL # PRICE   rank
1/8 3/16 2 3 mm 2-1/2 24708 $91.40 24708-C3 $96.00 4 00000001
1/8 3/16 4 3 mm 2-1/2 804208 $94.60 804208-C3 $99.20 4 00000002
5/32 15/64 2 1/8 2-1/2 24710 $91.40 24710-C3 $96.40 4 00000003
3/16 9/32 2 1/8 2-1/2 24712 $91.40 24712-C3 $96.40 4 00000004
3/16 9/32 2 5/32 2-1/2 24713 $94.30 24713-C3 $99.30 4 00000005
3/16 9/32 4 5/32 2-1/2 804212 $97.60 804212-C3 $102.60 4 00000006
1/4 3/8 2 3/16 3 24716 $99.00 24716-C3 $105.80 4 00000007
1/4 3/8 4 3/16 3 804216 $102.50 804216-C3 $109.30 4 00000008
5/16 15/32 2 1/4 4 24720 $121.60 24720-C3 $131.10 4 00000009
3/8 9/16 2 5/16 4 24724 $143.60 24724-C3 $155.90 4 00000010
7/16 21/32 2 3/8 6 24728 $211.50 24728-C3 $226.50 4 00000011
1/2 3/4 2 7/16 6 24732 $221.00 24732-C3 $234.90 00000012
5/8 15/16 2 1/2 6 24740 $286.50 24740-C3 $306.50 00000013
3/4 1-1/8 2 5/8 6 24748 $354.00 24748-C3 $375.00 00000014
