End Mills for Composites - Diamond Cut - End Mill Style

Material Specific End Mills

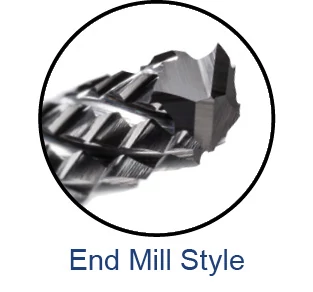

End Mills for Composites - Diamond Cut - End Mill Style

Material Specific End Mills

The diamond cut style and high flute count featured on tools within this End Mills for Composites - Diamond Cut - End Mill Style offering allows for effective roughing and profiling in abrasive composite materials, especially carbon and glass fiber composites.

  • Diamond cut style and high flute count allows for effective roughing and profiling in abrasive composites
  • Ideally suited for Carbon and Glass Fiber composites and other composites with high fiber reinforcement
  • Center cutting (two flutes to center) on end with downcut geometry on OD
  • Solid carbide
  • CNC ground in the USA

Advanced Search

CUTTER DIA. LENGTH OF CUT RIGHT HAND TEETH LEFT HAND TEETH SHANK DIA. OAL UNCOATED AMORPHOUS DIAMOND COATED CVD DIAMOND (4 µm) Add to Cart Default Sort
D1
+.000"-.001"
L2
+.020"-.000"
  " # D2 L1 TOOL # PRICE TOOL # PRICE TOOL # PRICE    rank
.062 (1/16) .186 (3x) 6 8 1/8 1-1/2 920962 $38.10 920962-C4 $49.80 6 00000001
.078 (5/64) .234 (3x) 7 9 1/8 1-1/2 920978 $38.10 920978-C4 $49.80 6 00000002
.093 (3/32) .279 (3x) 7 9 1/8 1-1/2 920993 $38.10 920993-C4 $49.80 6 00000003
.109 (7/64) .327 (3x) 8 10 1/8 1-1/2 921002 $41.20 921002-C4 $52.90 6 00000004
#N/A 00000005
D1
+.000"-.002"
L2
+.030"-.000"
L2
+.030"-.000"
D2 L1 TOOL # TOOL # TOOL # #N/A 00000006
.125 (1/8) .375 (3x) 8 10 1/8 1-1/2 921008 $38.10 921008-C4 $49.80 799008 $84.70 6 00000007
.125 (1/8) .625 (5x) 8 10 1/8 1-1/2 894508 $41.20 894508-C4 $52.90 6 00000008
.156 (5/32) .469 (3x) 9 11 3/16 2 921010 $45.40 921010-C4 $61.50 6 00000009
.187 (3/16) .563 (3x) 9 11 3/16 2 921012 $45.40 921012-C4 $61.50 799012 $101.00 6 00000010
.187 (3/16) 1.000 (5x) 9 11 3/16 2 894512 $49.50 894512-C4 $65.60 6 00000011
.250 (1/4) .750 (3x) 10 12 1/4 2-1/2 921016 $62.70 921016-C4 $81.00 799016 $126.50 6 00000012
.250 (1/4) 1.250 (5x) 10 12 1/4 2-1/2 894516 $68.10 894516-C4 $86.40 6 00000013
.312 (5/16) 1.000 (3x) 10 12 5/16 2-1/2 921020 $81.30 921020-C4 $103.40 6 00000014
.375 (3/8) 1.125 (3x) 11 13 3/8 2-1/2 921024 $98.40 921024-C4 $120.50 6 00000015
.500 (1/2) 1.500 (3x) 12 14 1/2 3 921032 $166.70 921032-C4 $193.30 6 00000016
