Keyseat Cutters - Corner Radius - Reduced Shank

Specialty Profiles
Keyseat Cutters - Corner Radius - Reduced Shank

Specialty Profiles

A solid carbide head brazed onto a steel shank, this Harvey Tool offering of Keyseat Cutters - Corner Radius - Reduced Shank features a Weldon flat for added tool holding security and a corner radius profile for improved strength during slotting applications.

  • Solid Carbide Head Brazed onto a Steel Shank
  • Both Sides of Cutter are Dished for Clearance
  • Corner Raius for improved strength
  • Weldon Flat
  • CNC ground in the USA

Advanced Search

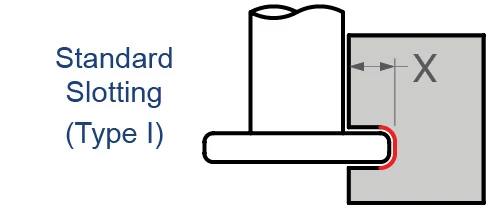

*Radial DOC accounts for max transition radius at neck
CUTTER DIA. CUTTER WIDTH CORNER RADIUS RADIAL DOC* TYPE FLUTES SHANK DIA. OAL UNCOATED AlTiN COATED Add to Cart Default Sort
D1
+.000"-.002"
L2
+.001"-.001"
R
+.001"-.001"
         D2 L1 TOOL # PRICE TOOL # PRICE
3/4 .031 (1/32) .005 .177 I 10 3/8 3-1/32 841505 $115.60 841505-C3 $130.10 00000001
3/4 .062 (1/16) .005 .177 I 10 3/8 3-1/16 841520 $115.60 841520-C3 $130.10 00000002
3/4 .062 (1/16) .010 .177 I 10 3/8 3-1/16 923820 $115.60 923820-C3 $130.10 00000003
3/4 .078 (5/64) .005 .177 I 10 3/8 3-5/64 841530 $115.60 841530-C3 $130.10 00000004
3/4 .078 (5/64) .010 .177 I 10 3/8 3-5/64 923830 $115.60 923830-C3 $130.10 00000005
3/4 .093 (3/32) .005 .177 I 10 3/8 3-3/32 841540 $115.60 841540-C3 $130.10 00000006
3/4 .093 (3/32) .010 .177 I 10 3/8 3-3/32 923840 $115.60 923840-C3 $130.10 00000007
3/4 .093 (3/32) .030 .177 I 10 3/8 3-3/32 905240 $115.60 905240-C3 $130.10 00000008
3/4 .125 (1/8) .005 .177 I 10 3/8 3-1/8 841550 $115.60 841550-C3 $130.10 00000009
3/4 .125 (1/8) .010 .177 I 10 3/8 3-1/8 923850 $115.60 923850-C3 $130.10 00000010
3/4 .125 (1/8) .015 .177 I 10 3/8 3-1/8 840950 $115.60 840950-C3 $130.10 00000011
3/4 .125 (1/8) .030 .177 I 10 3/8 3-1/8 905250 $115.60 905250-C3 $130.10 00000012
3/4 .187 (3/16) .010 .177 I 10 3/8 3-3/16 923860 $122.40 923860-C3 $136.90 00000013
3/4 .187 (3/16) .015 .177 I 10 3/8 3-3/16 840960 $122.40 840960-C3 $136.90 00000014
3/4 .187 (3/16) .030 .177 I 10 3/8 3-3/16 905260 $122.40 905260-C3 $136.90 00000015
3/4 .250 (1/4) .010 .177 I 10 3/8 3-1/4 923870 $128.80 923870-C3 $143.30 00000016
3/4 .250 (1/4) .015 .177 I 10 3/8 3-1/4 840970 $128.80 840970-C3 $143.30 00000017
3/4 .250 (1/4) .030 .177 I 10 3/8 3-1/4 905270 $128.80 905270-C3 $143.30 00000018
3/4 .250 (1/4) .060 .177 I 10 3/8 3-1/4 894070 $131.90 894070-C3 $146.40 00000019
1 .031 (1/32) .005 .240 I 12 1/2 3-1/32 840305 $128.10 840305-C3 $150.20 00000020
1 .062 (1/16) .005 .240 I 12 1/2 3-1/16 840320 $128.10 840320-C3 $150.20 00000021
1 .062 (1/16) .010 .240 I 12 1/2 3-1/16 918520 $128.10 918520-C3 $150.20 00000022
1 .078 (5/64) .005 .240 I 12 1/2 3-5/64 840330 $128.10 840330-C3 $150.20 00000023
1 .078 (5/64) .010 .240 I 12 1/2 3-5/64 918530 $128.10 918530-C3 $150.20 00000024
1 .093 (3/32) .005 .240 I 12 1/2 3-3/32 840340 $128.10 840340-C3 $150.20 00000025
1 .093 (3/32) .010 .240 I 12 1/2 3-3/32 918540 $128.10 918540-C3 $150.20 00000026
1 .093 (3/32) .030 .240 I 12 1/2 3-3/32 910040 $128.10 910040-C3 $150.20 00000027
1 .125 (1/8) .005 .240 I 12 1/2 3-1/8 840350 $128.10 840350-C3 $150.20 00000028
1 .125 (1/8) .010 .240 I 12 1/2 3-1/8 918550 $128.10 918550-C3 $150.20 00000029
1 .125 (1/8) .015 .240 I 12 1/2 3-1/8 839750 $128.10 839750-C3 $150.20 00000030
1 .125 (1/8) .030 .240 I 12 1/2 3-1/8 910050 $128.10 910050-C3 $150.20 00000031
1 .187 (3/16) .010 .240 I 12 1/2 3-3/16 918560 $135.20 918560-C3 $157.30 00000032
1 .187 (3/16) .015 .240 I 12 1/2 3-3/16 839760 $135.20 839760-C3 $157.30 00000033
1 .187 (3/16) .030 .240 I 12 1/2 3-3/16 910060 $135.20 910060-C3 $157.30 00000034
1 .250 (1/4) .010 .240 I 12 1/2 3-1/4 918570 $140.60 918570-C3 $162.70 00000035
1 .250 (1/4) .015 .240 I 12 1/2 3-1/4 839770 $140.60 839770-C3 $162.70 00000036
1 .250 (1/4) .030 .240 I 12 1/2 3-1/4 910070 $140.60 910070-C3 $162.70 00000037
1 .250 (1/4) .060 .240 I 12 1/2 3-1/4 897570 $140.60 897570-C3 $162.70 00000038
1 .375 (3/8) .010 .240 I 12 1/2 3-3/8 918590 $147.50 918590-C3 $169.60 00000039
1 .375 (3/8) .015 .240 I 12 1/2 3-3/8 839790 $147.50 839790-C3 $169.60 00000040
1 .375 (3/8) .030 .240 I 12 1/2 3-3/8 910090 $147.50 910090-C3 $169.60 00000041
1-1/2 .125 (1/8) .010 .365 I 16 3/4 3-3/8 839150 $165.30 839150-C3 $192.90 00000042
1-1/2 .125 (1/8) .030 .365 I 16 3/4 3-3/8 838550 $165.30 838550-C3 $192.90 00000043
1-1/2 .187 (3/16) .010 .365 I 16 3/4 3-7/16 839160 $165.30 839160-C3 $192.90 00000044
1-1/2 .187 (3/16) .030 .365 I 16 3/4 3-7/16 838560 $165.30 838560-C3 $192.90 00000045
1-1/2 .250 (1/4) .010 .365 I 16 3/4 3-1/2 839170 $177.00 839170-C3 $204.60 00000046
1-1/2 .250 (1/4) .030 .365 I 16 3/4 3-1/2 838570 $177.00 838570-C3 $204.60 00000047
1-1/2 .375 (3/8) .010 .365 I 16 3/4 3-5/8 839190 $224.30 839190-C3 $251.90 00000048
1-1/2 .375 (3/8) .030 .365 I 16 3/4 3-5/8 838590 $224.30 838590-C3 $251.90 00000049
1-1/2 .500 (1/2) .010 .365 I 16 3/4 3-3/4 839195 $258.70 839195-C3 $286.30 00000050
1-1/2 .500 (1/2) .030 .365 I 16 3/4 3-3/4 838595 $258.70 838595-C3 $286.30 00000051
