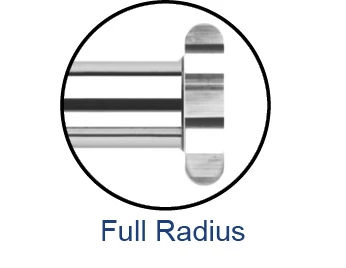

Keyseat Cutters - Full Radius

Specialty Profiles
Specialty Profiles

Available in standard slotting and deep slotting styles, Harvey Tool's offering of fully stocked, ready-to-ship Keyseat Cutters - Full Radius are CNC ground in the USA from solid carbide, and are offered in both uncoated and AlTiN coated styles.

  • Ground form relieved (can be re-ground without losing radius)
  • 6 flutes
  • Both sides of cutter are dished for clearance
  • Solid Carbide
  • CNC ground in the USA

Advanced Search

*Radial DOC accounts for max transition radius at neck
RADIUS CUTTER DIA. CUTTER WIDTH NECK DIA. NECK LENGTH Radial DOC* TYPE FLUTES SHANK DIA. OAL UNCOATED AlTiN COATED Add to Cart Default Sort
R
+.001"-.001"
D1
+.000"-.002"
L2   L3
+.020"-.000"
   X . # D2 L1 TOOL # PRICE TOOL # PRICE
.0075 3/32 .015 (1/64) 3/64 9/64 (1.5x) .020 I 4 1/8 1-1/2 976907 $73.90 976907-C3 $78.50 00000001
.0075 1/8 .015 (1/64) 1/16 3/16 (1.5x) .022 I 6 1/8 1-1/2 67507 $76.60 67507-C3 $81.20 00000002
.0075 1/4 .015 (1/64) 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 67707 $94.80 67707-C3 $101.60 00000003
.0100 3/32 .020 3/64 9/64 (1.5x) .020 I 4 1/8 1-1/2 976910 $71.80 976910-C3 $76.40 00000004
.0100 1/8 .020 1/16 3/16 (1.5x) .022 I 6 1/8 1-1/2 67510 $74.50 67510-C3 $79.10 00000005
.0100 5/32 .020 5/64 15/64 (1.5x) .029 I 6 3/16 2 965310 $78.30 965310-C3 $83.30 00000006
.0100 3/16 .020 3/32 9/32 (1.5x) .037 I 6 3/16 2 68310 $86.00 68310-C3 $91.00 00000007
.0100 1/4 .020 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 67710 $92.60 67710-C3 $99.40 00000008
.0100 5/16 .020 5/32 1/2 (1.5x) .068 I 6 5/16 2-1/2 944410 $102.40 944410-C3 $110.30 00000009
.0100 3/8 .020 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 68410 $110.00 68410-C3 $119.00 00000010
.0156 (1/64) 3/32 .031 (1/32) 3/64 9/64 (1.5x) .020 I 4 1/8 1-1/2 976915 $64.00 976915-C3 $68.60 00000011
.0156 (1/64) 1/8 .031 (1/32) 1/16 3/16 (1.5x) .022 I 6 1/8 1-1/2 67515 $66.30 67515-C3 $70.90 00000012
.0156 (1/64) 1/8 .031 (1/32) 1/16 3/8 (3x) .022 I 6 1/8 1-1/2 895215 $70.70 895215-C3 $75.30 00000013
.0156 (1/64) 5/32 .031 (1/32) 5/64 15/64 (1.5x) .029 I 6 3/16 2 965315 $78.30 965315-C3 $83.30 00000014
.0156 (1/64) 3/16 .031 (1/32) 3/32 9/32 (1.5x) .037 I 6 3/16 2 68315 $78.50 68315-C3 $83.50 00000015
.0156 (1/64) 3/16 .031 (1/32) 3/32 9/16 (3x) .037 I 6 3/16 2 924415 $91.80 924415-C3 $96.80 00000016
.0156 (1/64) 1/4 .031 (1/32) 5/64 1/8 (.5x) .076 II 6 1/4 2-1/2 953915 $87.70 953915-C3 $94.50 00000017
.0156 (1/64) 1/4 .031 (1/32) 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 43315 $84.40 43315-C3 $91.20 00000018
.0156 (1/64) 1/4 .031 (1/32) 1/8 3/4 (3x) .053 I 6 1/4 2-1/2 971415 $97.80 971415-C3 $104.60 00000019
.0156 (1/64) 5/16 .031 (1/32) 5/32 1/2 (1.5x) .068 I 6 5/16 2-1/2 944415 $93.90 944415-C3 $101.80 00000020
.0156 (1/64) 3/8 .031 (1/32) 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 68415 $101.80 68415-C3 $110.80 00000021
.0156 (1/64) 1/2 .031 (1/32) 1/4 3/4 (1.5x) .115 I 6 1/2 3 67915 $104.90 67915-C3 $118.30 00000022
.0200 1/8 .040 1/16 3/16 (1.5x) .022 I 6 1/8 1-1/2 67520 $66.30 67520-C3 $70.90 00000023
.0200 5/32 .040 5/64 15/64 (1.5x) .029 I 6 3/16 2 965320 $78.30 965320-C3 $83.30 00000024
.0200 3/16 .040 3/32 9/32 (1.5x) .037 I 6 3/16 2 68320 $78.50 68320-C3 $83.50 00000025
.0200 3/16 .040 3/32 9/16 (3x) .037 I 6 3/16 2 924420 $91.80 924420-C3 $96.80 00000026
.0200 1/4 .040 5/64 1/8 (.5x) .076 II 6 1/4 2-1/2 953920 $87.70 953920-C3 $94.50 00000027
.0200 1/4 .040 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 67720 $85.30 67720-C3 $92.10 00000028
.0200 1/4 .040 1/8 3/4 (3x) .053 I 6 1/4 2-1/2 971420 $97.80 971420-C3 $104.60 00000029
.0200 5/16 .040 5/32 1/2 (1.5x) .068 I 6 5/16 2-1/2 944420 $93.90 944420-C3 $101.80 00000030
.0200 3/8 .040 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 68420 $102.70 68420-C3 $111.70 00000031
.0200 3/8 .040 3/16 1-1/8 (3x) .084 I 6 3/8 3 968520 $115.60 968520-C3 $124.60 00000032
.0200 1/2 .040 1/4 3/4 (1.5x) .115 I 6 1/2 3 67920 $105.40 67920-C3 $118.80 00000033
.0250 3/16 .050 3/32 9/32 (1.5x) .037 I 6 3/16 2 68325 $78.50 68325-C3 $83.50 00000034
.0250 1/4 .050 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 67725 $85.30 67725-C3 $92.10 00000035
.0250 3/8 .050 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 68425 $102.70 68425-C3 $111.70 00000036
.0300 5/32 .060 5/64 15/64 (1.5x) .029 I 6 3/16 2 965330 $78.30 965330-C3 $83.30 00000037
.0300 3/16 .060 3/32 9/32 (1.5x) .037 I 6 3/16 2 68330 $78.50 68330-C3 $83.50 00000038
.0300 1/4 .060 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 67730 $85.30 67730-C3 $92.10 00000039
.0312 (1/32) 3/16 .062 (1/16) 3/32 9/32 (1.5x) .037 I 6 3/16 2 68331 $78.50 68331-C3 $83.50 00000040
.0312 (1/32) 3/16 .062 (1/16) 3/32 9/16 (3x) .037 I 6 3/16 2 924431 $91.80 924431-C3 $96.80 00000041
.0312 (1/32) 1/4 .062 (1/16) 5/64 1/8 (.5x) .076 II 6 1/4 2-1/2 953931 $87.70 953931-C3 $94.50 00000042
.0312 (1/32) 1/4 .062 (1/16) 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 43331 $84.40 43331-C3 $91.20 00000043
.0312 (1/32) 1/4 .062 (1/16) 1/8 3/4 (3x) .053 I 6 1/4 2-1/2 971431 $97.80 971431-C3 $104.60 00000044
.0312 (1/32) 5/16 .062 (1/16) 5/32 1/2 (1.5x) .068 I 6 5/16 2-1/2 944431 $93.90 944431-C3 $101.80 00000045
.0312 (1/32) 3/8 .062 (1/16) 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 68431 $101.80 68431-C3 $110.80 00000046
.0312 (1/32) 1/2 .062 (1/16) 5/32 1/4 (.5x) .162 II 6 1/2 3 898531 $109.30 898531-C3 $122.70 00000047
.0312 (1/32) 1/2 .062 (1/16) 1/4 3/4 (1.5x) .115 I 6 1/2 3 67931 $104.90 67931-C3 $118.30 00000048
.0312 (1/32) 1/2 .062 (1/16) 1/4 1-1/2 (3x) .115 I 6 1/2 3-1/2 942731 $114.40 942731-C3 $127.80 00000049
.0312 (1/32) 5/8 .062 (1/16) .300 1 (1.5x) .152 I 6 5/8 3-1/2 43431 $171.80 43431-C3 $185.20 00000050
.0394 (1 mm) 1/4 .078 (2 mm) 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 67739 $85.30 67739-C3 $92.10 00000051
.0394 (1 mm) 5/16 .078 (2 mm) 5/32 1/2 (1.5x) .068 I 6 5/16 2-1/2 944439 $95.10 944439-C3 $103.00 00000052
.0394 (1 mm) 3/8 .078 (2 mm) 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 43339 $102.70 43339-C3 $111.70 00000053
.0394 (1 mm) 3/8 .078 (2 mm) 3/16 1-1/8 (3x) .084 I 6 3/8 3 968539 $115.60 968539-C3 $124.60 00000054
.0394 (1 mm) 1/2 .078 (2 mm) 1/4 3/4 (1.5x) .115 I 6 1/2 3 67939 $105.40 67939-C3 $118.80 00000055
.0469 (3/64) 1/4 .093 (3/32) 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 67747 $84.40 67747-C3 $91.20 00000056
.0469 (3/64) 5/16 .093 (3/32) 5/32 1/2 (1.5x) .068 I 6 5/16 2-1/2 944447 $93.90 944447-C3 $101.80 00000057
.0469 (3/64) 3/8 .093 (3/32) 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 43347 $101.80 43347-C3 $110.80 00000058
.0469 (3/64) 3/8 .093 (3/32) 3/16 1-1/8 (3x) .084 I 6 3/8 3 968547 $115.60 968547-C3 $124.60 00000059
.0469 (3/64) 1/2 .093 (3/32) 1/4 3/4 (1.5x) .115 I 6 1/2 3 67947 $104.90 67947-C3 $118.30 00000060
.0469 (3/64) 5/8 .093 (3/32) .300 1 (1.5x) .152 I 6 5/8 3-1/2 43447 $171.80 43447-C3 $185.20 00000061
.0500 3/8 .100 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 68450 $105.20 68450-C3 $114.20 00000062
.0500 1/2 .100 1/4 3/4 (1.5x) .115 I 6 1/2 3 67950 $119.00 67950-C3 $132.40 00000063
.0590 (1.5 mm) 5/16 .118 (3 mm) 5/32 1/2 (1.5x) .068 I 6 5/16 2-1/2 944459 $95.10 944459-C3 $103.00 00000064
.0590 (1.5 mm) 3/8 .118 (3 mm) 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 68459 $102.70 68459-C3 $111.70 00000065
.0590 (1.5 mm) 1/2 .118 (3 mm) 1/4 3/4 (1.5x) .115 I 6 1/2 3 67959 $105.40 67959-C3 $118.80 00000066
.0625 (1/16) 5/16 .125 (1/8) 5/32 1/2 (1.5x) .068 I 6 5/16 2-1/2 944462 $93.90 944462-C3 $101.80 00000067
.0625 (1/16) 3/8 .125 (1/8) 1/8 3/16 (.5x) .115 II 6 3/8 2-1/2 949262 $105.70 949262-C3 $114.70 00000068
.0625 (1/16) 3/8 .125 (1/8) 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 43362 $101.80 43362-C3 $110.80 00000069
.0625 (1/16) 3/8 .125 (1/8) 3/16 1-1/8 (3x) .084 I 6 3/8 3 968562 $115.60 968562-C3 $124.60 00000070
.0625 (1/16) 1/2 .125 (1/8) 5/32 1/4 (.5x) .162 II 6 1/2 3 898562 $109.30 898562-C3 $122.70 00000071
.0625 (1/16) 1/2 .125 (1/8) 1/4 3/4 (1.5x) .115 I 6 1/2 3 67962 $104.90 67962-C3 $118.30 00000072
.0625 (1/16) 1/2 .125 (1/8) 1/4 1-1/2 (3x) .115 I 6 1/2 3-1/2 942762 $145.90 942762-C3 $159.30 00000073
.0625 (1/16) 5/8 .125 (1/8) .300 1 (1.5x) .152 I 6 5/8 3-1/2 43462 $171.80 43462-C3 $185.20 00000074
.0781 (5/64) 3/8 .156 (5/32) 3/16 9/16 (1.5x) .084 I 6 3/8 2-1/2 68478 $101.80 68478-C3 $110.80 00000075
.0781 (5/64) 1/2 .156 (5/32) 5/32 1/4 (.5x) .162 II 6 1/2 3 898578 $109.90 898578-C3 $123.30 00000076
.0781 (5/64) 1/2 .156 (5/32) 1/4 3/4 (1.5x) .115 I 6 1/2 3 43378 $105.40 43378-C3 $118.80 00000077
.0781 (5/64) 5/8 .156 (5/32) .300 1 (1.5x) .152 I 6 5/8 3-1/2 43478 $171.80 43478-C3 $185.20 00000078
.0937 (3/32) 1/2 .187 (3/16) 5/32 1/4 (.5x) .162 II 6 1/2 3 898593 $109.90 898593-C3 $123.30 00000079
.0937 (3/32) 1/2 .187 (3/16) 1/4 3/4 (1.5x) .115 I 6 1/2 3 43393 $105.40 43393-C3 $118.80 00000080
.0937 (3/32) 1/2 .187 (3/16) 1/4 1-1/2 (3x) .115 I 6 1/2 3-1/2 942793 $123.10 942793-C3 $136.50 00000081
.0937 (3/32) 5/8 .187 (3/16) .300 1 (1.5x) .152 I 6 5/8 3-1/2 43493 $171.80 43493-C3 $185.20 00000082
.1181 (3 mm) 5/8 .236 (6 mm) .300 1 (1.5x) .152 I 6 5/8 3-1/2 4343M $171.80 4343M-C3 $185.20 00000083
.1250 (1/8) 5/8 .250 (1/4) .300 1 (1.5x) .152 I 6 5/8 3-1/2 43408 $171.80 43408-C3 $185.20 00000084
.1250 (1/8) 5/8 .250 (1/4) .300 2 (3x) .152 I 6 5/8 4 983008 $193.90 983008-C3 $208.40 00000085
