Miniature End Mills - Corner Radius - Stub & Standard

Miniature End Mills
Miniature End Mills

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool. Browse from 2 flute, 3 flute, and 4 flute designs, and in uncoated, AlTiN coated, and Amorphous Diamond coated styles.

  • Corner radius for improved strength
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Advanced Search

CUTTER DIA. CORNER RADIUS LENGTH
OF CUT
SHANK DIA. OAL UNCOATED AlTiN COATED AMORPHOUS
DIAMOND COATED
Add to Cart Default Sort
D1
+.0005"-.0005"
R
+.001"-001"
L2
+.010"-.000"

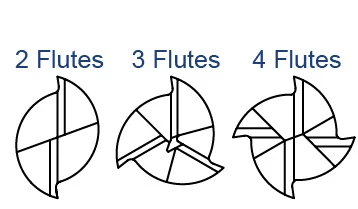

  D2 L1 2 FL 3 FL 4 FL PRICE 3 FL 4 FL PRICE 4 FL PRICE
.008 .002 .012 (1.5x) 1/8 1-1/2 856008 $48.00 856008-C3 $52.60 00000001
.008 .002 .024 (3x) 1/8 1-1/2 854208 $48.00 854208-C3 $52.60 00000002
.010 .003 .015 (1.5x) 1/8 1-1/2 987510 $43.30 987510-C3 $47.90 00000003
.010 .003 .030 (3x) 1/8 1-1/2 47210 $43.30 47210-C3 $47.90 00000004
.015 (1/64) .003 .023 (1.5x) 1/8 1-1/2 987515 $43.30 987515-C3 $47.90 00000005
.015 (1/64) .003 .045 (3x) 1/8 1-1/2 45415 47215 $43.30 47215-C3 $47.90 47215-C4 $55.00 00000006
.015 (1/64) .005 .023 (1.5x) 1/8 1-1/2 993815 $43.30 993815-C3 $47.90 00000007
.015 (1/64) .005 .045 (3x) 1/8 1-1/2 44715 26315 $43.30 26315-C3 $47.90 00000008
.018 .005 .054 (3x) 1/8 1-1/2 26318 $43.30 26318-C3 $47.90 00000009
.020 (.5 mm) .003 .030 (1.5x) 1/8 1-1/2 987520 $41.50 987520-C3 $46.10 00000010
.020 (.5 mm) .003 .060 (3x) 1/8 1-1/2 47220 $41.50 47220-C3 $46.10 00000011
.020 (.5 mm) .005 .030 (1.5x) 1/8 1-1/2 993820 $41.50 993820-C3 $46.10 00000012
.020 (.5 mm) .005 .060 (3x) 1/8 1-1/2 44720 848320 26320 $41.50 848320-C3 26320-C3 $46.10 26320-C4 $53.20 00000013
.022 .005 .066 (3x) 1/8 1-1/2 26322 $37.80 26322-C3 $42.40 00000014
.024 (.6 mm) .005 .072 (3x) 1/8 1-1/2 26324 $37.80 26324-C3 $42.40 00000015
.025 .003 .075 (3x) 1/8 1-1/2 47225 $37.80 47225-C3 $42.40 00000016
.025 .005 .038 (1.5x) 1/8 1-1/2 993825 $37.80 993825-C3 $42.40 00000017
.025 .005 .075 (3x) 1/8 1-1/2 44725 26325 $37.80 26325-C3 $42.40 26325-C4 $49.50 00000018
.025 .008 .075 (3x) 1/8 1-1/2 953025 $37.80 953025-C3 $42.40 00000019
.028 (.7mm) .005 .084 (3x) 1/8 1-1/2 26328 $35.00 26328-C3 $39.60 00000020
.030 .003 .090 (3x) 1/8 1-1/2 47230 $35.00 47230-C3 $39.60 00000021
.030 .005 .045 (1.5x) 1/8 1-1/2 993830 $35.00 993830-C3 $39.60 00000022
.030 .005 .090 (3x) 1/8 1-1/2 44730 26330 $35.00 26330-C3 $39.60 26330-C4 $46.70 00000023
.030 .008 .090 (3x) 1/8 1-1/2 953030 $35.00 953030-C3 $39.60 00000024
.030 .010 .045 (1.5x) 1/8 1-1/2 994530 $35.00 994530-C3 $39.60 00000025
.030 .010 .090 (3x) 1/8 1-1/2 45230 27230 $35.00 27230-C3 $39.60 27230-C4 $46.70 00000026
.031 (1/32) .003 .047 (1.5x) 1/8 1-1/2 987531 $35.00 987531-C3 $39.60 00000027
.031 (1/32) .003 .093 (3x) 1/8 1-1/2 47231 $35.00 47231-C3 $39.60 00000028
.031 (1/32) .005 .047 (1.5x) 1/8 1-1/2 993831 $35.00 993831-C3 $39.60 00000029
.031 (1/32) .005 .093 (3x) 1/8 1-1/2 44731 848331 26331 $35.00 848331-C3 26331-C3 $39.60 26331-C4 $46.70 00000030
.031 (1/32) .008 .047 (1.5x) 1/8 1-1/2 913731 $35.00 913731-C3 $39.60 00000031
.031 (1/32) .008 .093 (3x) 1/8 1-1/2 953031 $35.00 953031-C3 $39.60 00000032
.031 (1/32) .010 .047 (1.5x) 1/8 1-1/2 994531 $35.00 994531-C3 $39.60 00000033
.031 (1/32) .010 .093 (3x) 1/8 1-1/2 45231 854131 27231 $35.00 854131-C3 27231-C3 $39.60 27231-C4 $46.70 00000034
.034 .005 .102 (3x) 1/8 1-1/2 26334 $29.40 26334-C3 $34.00 00000035
.035 (.9 mm) .005 .053 (1.5x) 1/8 1-1/2 993835 $29.40 993835-C3 $34.00 00000036
.035 (.9 mm) .005 .105 (3x) 1/8 1-1/2 44735 26335 $29.40 26335-C3 $34.00 26335-C4 $41.10 00000037
.035 (.9 mm) .010 .053 (1.5x) 1/8 1-1/2 994535 $29.40 994535-C3 $34.00 00000038
.035 (.9 mm) .010 .105 (3x) 1/8 1-1/2 45235 27235 $29.40 27235-C3 $34.00 27235-C4 $41.10 00000039
.037 .005 .111 (3x) 1/8 1-1/2 26337 $29.40 26337-C3 $34.00 00000040
.039 (1 mm) .003 .117 (3x) 1/8 1-1/2 47239 $22.80 47239-C3 $27.40 00000041
.039 (1 mm) .005 .059 (1.5x) 1/8 1-1/2 993839 $22.80 993839-C3 $27.40 00000042
.039 (1 mm) .005 .117 (3x) 1/8 1-1/2 26339 $22.80 26339-C3 $27.40 00000043
.039 (1 mm) .008 .117 (3x) 1/8 1-1/2 953039 $22.80 953039-C3 $27.40 00000044
.039 (1 mm) .010 .059 (1.5x) 1/8 1-1/2 994539 $22.80 994539-C3 $27.40 00000045
.039 (1 mm) .010 .117 (3x) 1/8 1-1/2 27239 $22.80 27239-C3 $27.40 00000046
.040 .003 .120 (3x) 1/8 1-1/2 47240 $22.40 47240-C3 $27.00 00000047
.040 .005 .060 (1.5x) 1/8 1-1/2 865140 993840 $22.40 865140-C3 993840-C3 $27.00 00000048
.040 .005 .120 (3x) 1/8 1-1/2 44740 848340 26340 $22.40 848340-C3 26340-C3 $27.00 26340-C4 $34.10 00000049
.040 .008 .120 (3x) 1/8 1-1/2 953040 $22.40 953040-C3 $27.00 00000050
.040 .010 .060 (1.5x) 1/8 1-1/2 994540 $22.40 994540-C3 $27.00 00000051
.040 .010 .120 (3x) 1/8 1-1/2 45240 27240 $22.40 27240-C3 $27.00 27240-C4 $34.10 00000052
.045 .005 .068 (1.5x) 1/8 1-1/2 993845 $22.40 993845-C3 $27.00 00000053
.045 .005 .135 (3x) 1/8 1-1/2 44745 26345 $22.40 26345-C3 $27.00 26345-C4 $34.10 00000054
.045 .010 .068 (1.5x) 1/8 1-1/2 994545 $22.40 994545-C3 $27.00 00000055
.045 .010 .135 (3x) 1/8 1-1/2 45245 27245 $22.40 27245-C3 $27.00 27245-C4 $34.10 00000056
.045 .015 .068 (1.5x) 1/8 1-1/2 997945 $22.40 997945-C3 $27.00 00000057
.045 .015 .135 (3x) 1/8 1-1/2 45545 28145 $22.40 28145-C3 $27.00 28145-C4 $34.10 00000058
.046 .005 .138 (3x) 1/8 1-1/2 26346 $22.40 26346-C3 $27.00 00000059
.047 (3/64) .003 .071 (1.5x) 1/8 1-1/2 987547 $22.40 987547-C3 $27.00 00000060
.047 (3/64) .003 .141 (3x) 1/8 1-1/2 47247 $22.40 47247-C3 $27.00 00000061
.047 (3/64) .005 .071 (1.5x) 1/8 1-1/2 993847 $22.40 993847-C3 $27.00 00000062
.047 (3/64) .005 .141 (3x) 1/8 1-1/2 44747 848347 26347 $22.40 848347-C3 26347-C3 $27.00 26347-C4 $34.10 00000063
.047 (3/64) .008 .071 (1.5x) 1/8 1-1/2 913747 $22.40 913747-C3 $27.00 00000064
.047 (3/64) .008 .141 (3x) 1/8 1-1/2 953047 $22.40 953047-C3 $27.00 00000065
.047 (3/64) .010 .071 (1.5x) 1/8 1-1/2 994547 $22.40 994547-C3 $27.00 00000066
.047 (3/64) .010 .141 (3x) 1/8 1-1/2 45247 27247 $22.40 27247-C3 $27.00 27247-C4 $34.10 00000067
.047 (3/64) .012 .141 (3x) 1/8 1-1/2 966947 $22.40 966947-C3 $27.00 00000068
.047 (3/64) .015 .071 (1.5x) 1/8 1-1/2 830147 860847 997947 $22.40 860847-C3 997947-C3 $27.00 00000069
.047 (3/64) .015 .141 (3x) 1/8 1-1/2 45547 867247 28147 $22.40 867247-C3 28147-C3 $27.00 28147-C4 $34.10 00000070
.050 .003 .150 (3x) 1/8 1-1/2 47250 $22.40 47250-C3 $27.00 00000071
.050 .005 .075 (1.5x) 1/8 1-1/2 993850 $22.40 993850-C3 $27.00 00000072
.050 .005 .150 (3x) 1/8 1-1/2 44750 848350 26350 $22.40 848350-C3 26350-C3 $27.00 26350-C4 $34.10 00000073
.050 .008 .075 (1.5x) 1/8 1-1/2 913750 $22.40 913750-C3 $27.00 00000074
.050 .008 .150 (3x) 1/8 1-1/2 953050 $22.40 953050-C3 $27.00 00000075
.050 .010 .075 (1.5x) 1/8 1-1/2 994550 $22.40 994550-C3 $27.00 00000076
.050 .010 .150 (3x) 1/8 1-1/2 45250 27250 $22.40 27250-C3 $27.00 27250-C4 $34.10 00000077
.050 .015 .075 (1.5x) 1/8 1-1/2 997950 $22.40 997950-C3 $27.00 00000078
.050 .015 .150 (3x) 1/8 1-1/2 45550 28150 $22.40 28150-C3 $27.00 28150-C4 $34.10 00000079
.055 (1.4 mm) .003 .165 (3x) 1/8 1-1/2 47255 $22.40 47255-C3 $27.00 00000080
.055 (1.4 mm) .005 .083 (1.5x) 1/8 1-1/2 993855 $22.40 993855-C3 $27.00 00000081
.055 (1.4 mm) .005 .165 (3x) 1/8 1-1/2 44755 26355 $22.40 26355-C3 $27.00 26355-C4 $34.10 00000082
.055 (1.4 mm) .008 .165 (3x) 1/8 1-1/2 953055 $22.40 953055-C3 $27.00 00000083
.055 (1.4 mm) .010 .083 (1.5x) 1/8 1-1/2 994555 $22.40 994555-C3 $27.00 00000084
.055 (1.4 mm) .010 .165 (3x) 1/8 1-1/2 45255 27255 $22.40 27255-C3 $27.00 27255-C4 $34.10 00000085
.055 (1.4 mm) .015 .083 (1.5x) 1/8 1-1/2 997955 $22.40 997955-C3 $27.00 00000086
.055 (1.4 mm) .015 .165 (3x) 1/8 1-1/2 45555 28155 $22.40 28155-C3 $27.00 28155-C4 $34.10 00000087
.059 .005 .177 (3x) 1/8 1-1/2 26359 $22.40 26359-C3 $27.00 00000088
.060 .003 .180 (3x) 1/8 1-1/2 47260 $22.40 47260-C3 $27.00 00000089
.060 .005 .090 (1.5x) 1/8 1-1/2 993860 $22.40 993860-C3 $27.00 00000090
.060 .005 .180 (3x) 1/8 1-1/2 44760 848360 26360 $22.40 848360-C3 26360-C3 $27.00 26360-C4 $34.10 00000091
.060 .008 .180 (3x) 1/8 1-1/2 953060 $22.40 953060-C3 $27.00 00000092
.060 .010 .090 (1.5x) 1/8 1-1/2 994560 $22.40 994560-C3 $27.00 00000093
.060 .010 .180 (3x) 1/8 1-1/2 45260 27260 $22.40 27260-C3 $27.00 27260-C4 $34.10 00000094
.060 .015 .090 (1.5x) 1/8 1-1/2 997960 $22.40 997960-C3 $27.00 00000095
.060 .015 .180 (3x) 1/8 1-1/2 45560 28160 $22.40 28160-C3 $27.00 28160-C4 $34.10 00000096
.060 .020 .090 (1.5x) 1/8 1-1/2 966460 $22.40 966460-C3 $27.00 00000097
.060 .020 .180 (3x) 1/8 1-1/2 51660 $22.40 51660-C3 $27.00 00000098
.062 (1/16) .003 .093 (1.5x) 1/8 1-1/2 987562 $22.40 987562-C3 $27.00 00000099
.062 (1/16) .003 .186 (3x) 1/8 1-1/2 45462 47262 $22.40 47262-C3 $27.00 00000100
.062 (1/16) .005 .093 (1.5x) 1/8 1-1/2 804562 865162 993862 $22.40 865162-C3 993862-C3 $27.00 00000101
.062 (1/16) .005 .186 (3x) 1/8 1-1/2 44762 848362 26362 $22.40 848362-C3 26362-C3 $27.00 26362-C4 $34.10 00000102
.062 (1/16) .008 .093 (1.5x) 1/8 1-1/2 913762 $22.40 913762-C3 $27.00 00000103
.062 (1/16) .008 .186 (3x) 1/8 1-1/2 843962 953062 $22.40 953062-C3 $27.00 00000104
.062 (1/16) .010 .093 (1.5x) 1/8 1-1/2 830362 864662 994562 $22.40 864662-C3 994562-C3 $27.00 994562-C4 $34.10 00000105
.062 (1/16) .010 .186 (3x) 1/8 1-1/2 45262 854162 27262 $22.40 854162-C3 27262-C3 $27.00 27262-C4 $34.10 00000106
.062 (1/16) .012 .093 (1.5x) 1/8 1-1/2 904862 $22.40 904862-C3 $27.00 00000107
.062 (1/16) .012 .186 (3x) 1/8 1-1/2 966962 $22.40 966962-C3 $27.00 00000108
.062 (1/16) .015 .093 (1.5x) 1/8 1-1/2 830162 860862 997962 $22.40 860862-C3 997962-C3 $27.00 00000109
.062 (1/16) .015 .186 (3x) 1/8 1-1/2 45562 867262 28162 $22.40 867262-C3 28162-C3 $27.00 28162-C4 $34.10 00000110
.062 (1/16) .020 .093 (1.5x) 1/8 1-1/2 810662 966462 $22.40 966462-C3 $27.00 00000111
.062 (1/16) .020 .186 (3x) 1/8 1-1/2 51362 857762 51662 $22.40 857762-C3 51662-C3 $27.00 51662-C4 $34.10 00000112
.065 .005 .098 (1.5x) 1/8 1-1/2 993865 $22.40 993865-C3 $27.00 00000113
.065 .005 .195 (3x) 1/8 1-1/2 44765 26365 $22.40 26365-C3 $27.00 26365-C4 $34.10 00000114
.065 .010 .098 (1.5x) 1/8 1-1/2 994565 $22.40 994565-C3 $27.00 00000115
.065 .010 .195 (3x) 1/8 1-1/2 45265 27265 $22.40 27265-C3 $27.00 27265-C4 $34.10 00000116
.065 .015 .195 (3x) 1/8 1-1/2 45565 28165 $22.40 28165-C3 $27.00 28165-C4 $34.10 00000117
.065 .020 .195 (3x) 1/8 1-1/2 51665 $22.40 51665-C3 $27.00 00000118
.070 .003 .210 (3x) 1/8 1-1/2 47270 $22.40 47270-C3 $27.00 00000119
.070 .005 .105 (1.5x) 1/8 1-1/2 993870 $22.40 993870-C3 $27.00 00000120
.070 .005 .210 (3x) 1/8 1-1/2 44770 26370 $22.40 26370-C3 $27.00 26370-C4 $34.10 00000121
.070 .008 .210 (3x) 1/8 1-1/2 953070 $22.40 953070-C3 $27.00 00000122
.070 .010 .105 (1.5x) 1/8 1-1/2 994570 $22.40 994570-C3 $27.00 00000123
.070 .010 .210 (3x) 1/8 1-1/2 45270 27270 $22.40 27270-C3 $27.00 27270-C4 $34.10 00000124
.070 .015 .210 (3x) 1/8 1-1/2 45570 28170 $22.40 28170-C3 $27.00 28170-C4 $34.10 00000125
.070 .020 .210 (3x) 1/8 1-1/2 51670 $22.40 51670-C3 $27.00 00000126
.075 .005 .113 (1.5x) 1/8 1-1/2 993875 $22.40 993875-C3 $27.00 00000127
.075 .005 .225 (3x) 1/8 1-1/2 44775 26375 $22.40 26375-C3 $27.00 26375-C4 $34.10 00000128
.075 .010 .113 (1.5x) 1/8 1-1/2 994575 $22.40 994575-C3 $27.00 00000129
.075 .010 .225 (3x) 1/8 1-1/2 45275 27275 $22.40 27275-C3 $27.00 27275-C4 $34.10 00000130
.075 .015 .225 (3x) 1/8 1-1/2 45575 28175 $22.40 28175-C3 $27.00 28175-C4 $34.10 00000131
.078 (5/64) .003 .234 (3x) 1/8 1-1/2 47278 $22.40 47278-C3 $27.00 00000132
.078 (5/64) .005 .117 (1.5x) 1/8 1-1/2 993878 $22.40 993878-C3 $27.00 00000133
.078 (5/64) .005 .234 (3x) 1/8 1-1/2 44778 848378 26378 $22.40 848378-C3 26378-C3 $27.00 26378-C4 $34.10 00000134
.078 (5/64) .008 .117 (1.5x) 1/8 1-1/2 913778 $22.40 913778-C3 $27.00 00000135
.078 (5/64) .008 .234 (3x) 1/8 1-1/2 953078 $22.40 953078-C3 $27.00 00000136
.078 (5/64) .010 .117 (1.5x) 1/8 1-1/2 830378 864678 994578 $22.40 864678-C3 994578-C3 $27.00 00000137
.078 (5/64) .010 .234 (3x) 1/8 1-1/2 45278 854178 27278 $22.40 854178-C3 27278-C3 $27.00 27278-C4 $34.10 00000138
.078 (5/64) .012 .234 (3x) 1/8 1-1/2 966978 $22.40 966978-C3 $27.00 00000139
.078 (5/64) .015 .117 (1.5x) 1/8 1-1/2 860878 997978 $22.40 860878-C3 997978-C3 $27.00 00000140
.078 (5/64) .015 .234 (3x) 1/8 1-1/2 45578 867278 28178 $22.40 867278-C3 28178-C3 $27.00 28178-C4 $34.10 00000141
.078 (5/64) .020 .117 (1.5x) 1/8 1-1/2 810678 966478 $22.40 966478-C3 $27.00 00000142
.078 (5/64) .020 .234 (3x) 1/8 1-1/2 51378 51678 $22.40 51678-C3 $27.00 51678-C4 $34.10 00000143
.078 (5/64) .025 .117 (1.5x) 1/8 1-1/2 964078 $22.40 964078-C3 $27.00 00000144
.078 (5/64) .025 .234 (3x) 1/8 1-1/2 842678 957178 $22.40 842678-C3 957178-C3 $27.00 00000145
.080 .003 .240 (3x) 1/8 1-1/2 47280 $22.40 47280-C3 $27.00 00000146
.080 .005 .120 (1.5x) 1/8 1-1/2 993880 $22.40 993880-C3 $27.00 00000147
.080 .005 .240 (3x) 1/8 1-1/2 44780 26380 $22.40 26380-C3 $27.00 26380-C4 $34.10 00000148
.080 .008 .240 (3x) 1/8 1-1/2 953080 $22.40 953080-C3 $27.00 00000149
.080 .010 .120 (1.5x) 1/8 1-1/2 994580 $22.40 994580-C3 $27.00 00000150
.080 .010 .240 (3x) 1/8 1-1/2 45280 27280 $22.40 27280-C3 $27.00 27280-C4 $34.10 00000151
.080 .015 .240 (3x) 1/8 1-1/2 45580 28180 $22.40 28180-C3 $27.00 28180-C4 $34.10 00000152
.080 .020 .240 (3x) 1/8 1-1/2 51680 $22.40 51680-C3 $27.00 00000153
.085 .005 .128 (1.5x) 1/8 1-1/2 993885 $22.40 993885-C3 $27.00 00000154
.085 .005 .255 (3x) 1/8 1-1/2 44785 26385 $22.40 26385-C3 $27.00 26385-C4 $34.10 00000155
.085 .010 .128 (1.5x) 1/8 1-1/2 994585 $22.40 994585-C3 $27.00 00000156
.085 .010 .255 (3x) 1/8 1-1/2 45285 27285 $22.40 27285-C3 $27.00 27285-C4 $34.10 00000157
.085 .015 .255 (3x) 1/8 1-1/2 45585 28185 $22.40 28185-C3 $27.00 28185-C4 $34.10 00000158
.090 .003 .270 (3x) 1/8 1-1/2 47290 $22.40 47290-C3 $27.00 00000159
.090 .005 .135 (1.5x) 1/8 1-1/2 993890 $22.40 993890-C3 $27.00 00000160
.090 .005 .270 (3x) 1/8 1-1/2 44790 26390 $22.40 26390-C3 $27.00 26390-C4 $34.10 00000161
.090 .008 .270 (3x) 1/8 1-1/2 953090 $22.40 953090-C3 $27.00 00000162
.090 .010 .135 (1.5x) 1/8 1-1/2 994590 $22.40 994590-C3 $27.00 00000163
.090 .010 .270 (3x) 1/8 1-1/2 45290 27290 $22.40 27290-C3 $27.00 27290-C4 $34.10 00000164
.090 .015 .135 (1.5x) 1/8 1-1/2 997990 $22.40 997990-C3 $27.00 00000165
.090 .015 .270 (3x) 1/8 1-1/2 45590 28190 $22.40 28190-C3 $27.00 28190-C4 $34.10 00000166
.090 .020 .135 (1.5x) 1/8 1-1/2 966490 $22.40 966490-C3 $27.00 00000167
.090 .020 .270 (3x) 1/8 1-1/2 51690 $22.40 51690-C3 $27.00 00000168
.090 .030 .135 (1.5x) 1/8 1-1/2 958890 $22.40 958890-C3 $27.00 00000169
.090 .030 .270 (3x) 1/8 1-1/2 28690 $22.40 28690-C3 $27.00 00000170
.093 (3/32) .003 .140 (1.5x) 1/8 1-1/2 987593 $22.40 987593-C3 $27.00 00000171
.093 (3/32) .003 .279 (3x) 1/8 1-1/2 45493 47293 $22.40 47293-C3 $27.00 00000172
.093 (3/32) .005 .140 (1.5x) 1/8 1-1/2 804593 865193 993893 $22.40 865193-C3 993893-C3 $27.00 00000173
.093 (3/32) .005 .279 (3x) 1/8 1-1/2 44793 848393 26393 $22.40 848393-C3 26393-C3 $27.00 26393-C4 $34.10 00000174
.093 (3/32) .008 .140 (1.5x) 1/8 1-1/2 913793 $22.40 913793-C3 $27.00 00000175
.093 (3/32) .008 .279 (3x) 1/8 1-1/2 843993 953093 $22.40 953093-C3 $27.00 00000176
.093 (3/32) .010 .140 (1.5x) 1/8 1-1/2 830393 864693 994593 $22.40 864693-C3 994593-C3 $27.00 994593-C4 $34.10 00000177
.093 (3/32) .010 .279 (3x) 1/8 1-1/2 45293 854193 27293 $22.40 854193-C3 27293-C3 $27.00 27293-C4 $34.10 00000178
.093 (3/32) .012 .140 (1.5x) 1/8 1-1/2 904893 $22.40 904893-C3 $27.00 00000179
.093 (3/32) .012 .279 (3x) 1/8 1-1/2 966993 $22.40 966993-C3 $27.00 00000180
.093 (3/32) .015 .140 (1.5x) 1/8 1-1/2 830193 860893 997993 $22.40 860893-C3 997993-C3 $27.00 00000181
.093 (3/32) .015 .279 (3x) 1/8 1-1/2 45593 867293 28193 $22.40 867293-C3 28193-C3 $27.00 28193-C4 $34.10 00000182
.093 (3/32) .020 .140 (1.5x) 1/8 1-1/2 810693 858793 966493 $22.40 858793-C3 966493-C3 $27.00 00000183
.093 (3/32) .020 .279 (3x) 1/8 1-1/2 51393 857793 51693 $22.40 857793-C3 51693-C3 $27.00 51693-C4 $34.10 00000184
.093 (3/32) .025 .140 (1.5x) 1/8 1-1/2 964093 $22.40 964093-C3 $27.00 00000185
.093 (3/32) .025 .279 (3x) 1/8 1-1/2 957193 $22.40 957193-C3 $27.00 00000186
.093 (3/32) .030 .140 (1.5x) 1/8 1-1/2 958893 $22.40 958893-C3 $27.00 00000187
.093 (3/32) .030 .279 (3x) 1/8 1-1/2 73993 853493 28693 $22.40 853493-C3 28693-C3 $27.00 28693-C4 $34.10 00000188
.095 .005 .143 (1.5x) 1/8 1-1/2 993895 $22.40 993895-C3 $27.00 00000189
.095 .005 .285 (3x) 1/8 1-1/2 44795 26395 $22.40 26395-C3 $27.00 26395-C4 $34.10 00000190
.095 .010 .143 (1.5x) 1/8 1-1/2 994595 $22.40 994595-C3 $27.00 00000191
.095 .010 .285 (3x) 1/8 1-1/2 45295 27295 $22.40 27295-C3 $27.00 27295-C4 $34.10 00000192
.095 .015 .285 (3x) 1/8 1-1/2 45595 28195 $22.40 28195-C3 $27.00 28195-C4 $34.10 00000193
.095 .020 .285 (3x) 1/8 1-1/2 51695 $22.40 51695-C3 $27.00
