Miniature High Performance Drills - Deep Hole Coolant-Through

Holemaking & Threading
Miniature High Performance Drills - Deep Hole Coolant-Through

Holemaking & Threading

Drill up to 20x diameter in depth with this fully stocked Harvey Tool offering of High Performance Drills - Deep Hole - Coolant-Through, offered in 12x and 20x flute length options. Its coolant through design improves chip removal in deep holes.

  • Drill up to 20x diameter in depth

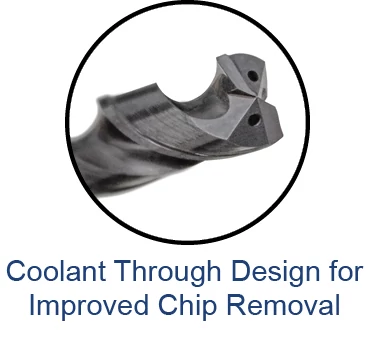

  • Coolant-through design for improved chip removal and heat reduction at the drill tip
  • 140° point angle
  • Specialized flute shape for improved chip evacuation and maximum rigidity
  • h6 shank tolerance for high precision tool holders
  • AlTiN coated for improved lubricity and heat resistance
  • CNC ground in Germany
  • Solid carbide

Advanced Search

DRILL
DIAMETER
FLUTE
LENGTH
SHANK
DIAMETER
OVERALL
LENGTH
AlTiN COATED Add to Cart Default Sort
inch wire mm
D1 +.000mm/-.013mm
inch mm
L2 +.25mm/-.000mm
hole depth D2(h6) mm TOOL # PRICE
.0520 #55 1.320 mm .709 18.00 mm (12x) 3 mm 63 mm ACD0520-C3 $160.90 00000001
.0550 #54 1.397 mm .748 19.00 mm (12x) 3 mm 63 mm ACD0550-C3 $160.90 00000002
.0590 1.500 mm .827 21.00 mm (12x) 3 mm 63 mm ACD0590-C3 $160.90 00000003
.0590 1.500 mm 1.280 32.50 mm (20x) 3 mm 75 mm CXZ0590-C3 $191.10 00000004
.0595 #53 1.511 mm .827 21.00 mm (12x) 3 mm 63 mm ACD0595-C3 $160.90 00000005
.0625 (1/16) 1.587 mm .866 22.00 mm (12x) 3 mm 63 mm ACD0625-C3 $160.90 00000006
.0625 (1/16) 1.587 mm 1.358 34.50 mm (20x) 3 mm 75 mm CXZ0625-C3 $191.10 00000007
.0700 #50 1.778 mm .945 24.00 mm (12x) 3 mm 63 mm ACD0700-C3 $160.90 00000008
.0781 (5/64) 1.984 mm 1.063 27.00 mm (12x) 3 mm 63 mm ACD0781-C3 $160.90 00000009
.0781 (5/64) 1.984 mm 1.693 43.00 mm (20x) 3 mm 100 mm CXZ0781-C3 $191.10 00000010
.0787 2.000 mm 1.102 28.00 mm (12x) 4 mm 63 mm ACD0787-C3 $166.60 00000011
.0787 2.000 mm 1.732 44.00 mm (20x) 4 mm 100 mm CXZ0787-C3 $211.80 00000012
.0890 #43 2.260 mm 1.220 31.00 mm (12x) 4 mm 75 mm ACD0890-C3 $166.60 00000013
.0937 (3/32) 2.381 mm 1.299 33.00 mm (12x) 4 mm 75 mm ACD0937-C3 $166.60 00000014
.0937 (3/32) 2.381 mm 2.047 52.00 mm (20x) 4 mm 100 mm CXZ0937-C3 $211.80 00000015
.1015 #38 2.578 mm 1.378 35.00 mm (12x) 4 mm 75 mm ACD1015-C3 $166.60 00000016
.1065 #36 2.705 mm 1.457 37.00 mm (12x) 4 mm 75 mm ACD1065-C3 $166.60 00000017
.1093 (7/64) 2.778 mm 1.496 38.00 mm (12x) 4 mm 75 mm ACD1093-C3 $166.60 00000018
.1093 (7/64) 2.778 mm 2.362 60.00 mm (20x) 4 mm 100 mm CXZ1093-C3 $211.80 00000019
.1181 3.000 mm 1.654 42.00 mm (12x) 4 mm 100 mm ACD1181-C3 $166.60 00000020
.1181 3.000 mm 2.559 65.00 mm (20x) 4 mm 100 mm CXZ1181-C3 $211.80 00000021
