Thread Milling Cutters - Multi-Form - Coolant-Through - UN Threads

Holemaking & Threading
Thread Milling Cutters - Multi-Form - Coolant-Through - UN Threads

Holemaking & Threading

With its coolant through design, this fully stocked offering of Thread Milling Cutters - Multi-Form - Coolant-Through - Metric are designed to maximize chip ejection in blind holes. These helically fluted tools are able to cut larger threads of the same pitch.

  • Designed for maximum chip ejection in blind holes

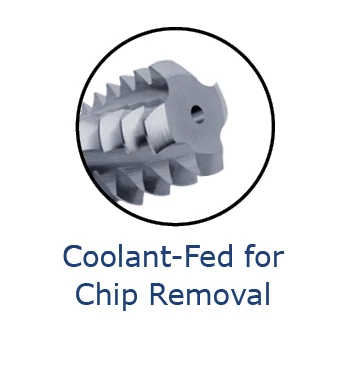

  • Coolant through
  • Mills right hand and left hand 60° UN threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA

Advanced Search

THREAD SIZE CUTTER DIA. LOC FLUTES SHANK DIA. OAL UNCOATED AlTiN COATED Add to Cart Default Sort
  D1
+.0005"-.0005"
 L2 # D2 L1 TOOL # PRICE TOOL # PRICE
10-24 .145 .312 3 3/16 2-3/8 17334 $106.20 17334-C3 $111.20 00000001
10-32 .150 .312 3 3/16 2-3/8 17336 $106.20 17336-C3 $111.20 00000002
1/4-20 .180 .500 3 3/16 2-3/8 17344 $128.70 17344-C3 $133.70 00000003
1/4-28 .180 .500 3 3/16 2-3/8 17346 $128.70 17346-C3 $133.70 00000004
5/16-18 .235 .625 3 1/4 2-3/8 17354 $138.60 17354-C3 $145.40 00000005
5/16-24 .235 .625 3 1/4 2-3/8 17356 $161.90 17356-C3 $168.70 00000006
3/8-16 .285 .750 4 5/16 3 17364 $186.70 17364-C3 $194.60 00000007
3/8-24 .285 .750 4 5/16 3 17366 $186.70 17366-C3 $194.60 00000008
7/16-14 .305 .750 4 5/16 3 17374 $186.70 17374-C3 $194.60 00000009
7/16-20 .335 .875 4 3/8 3 17376 $201.20 17376-C3 $210.20 00000010
1/2-13 .350 .875 4 3/8 3 17384 $207.60 17384-C3 $216.60 00000011
