Thread Milling Cutters - Single Form - UN Threads - For Hardened Steels

Holemaking & Threading
Thread Milling Cutters - Single Form - UN Threads - For Hardened Steels

Holemaking & Threading

Designed for threading hardened steels 46-68Rc, this single thread form tool is designed to mill common pitch sizes. The top of its included angle is ground to a flat for increased wear resistance, ensuring that your tool life is maximized.

  • Designed for threading hardened steel 48-68Rc
  • Single thread form designed to mill common pitch sizes

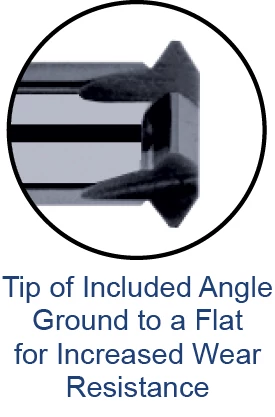

  • Tip of included angle ground to a flat for increased wear resistance
  • Large rigid core diameter and eccentric relief for improved strength
  • Mills left hand and right hand threads
  • Cuts internal and external 60° UN threads
  • h6 shank tolerance for high precision tool holders
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • Select carbide grade for improved edge retention
  • CNC ground in the USA

Advanced Search

* Tools are designed to produce an 83% depth of thread maximum
THREAD
SIZE
PITCH
RANGE*
CUTTER
DIA.
TIP
FLAT
NECK
DIA.
MAX DEPTH
OF THREAD
FLUTES SHANK
DIA.
OAL AlTiN NANO COATED Add to Cart Default Sort
     D1
+.000"-.002"
F
+.0000"-.0005"
" L3
+.020"-.000"
# D2 L1 TOOL # PRICE
0 80 .044 .0013 .028 3/32 3 1/8 1-1/2 986602-C6 $85.50 00000001
0 80 .044 .0013 .028 1/8 3 1/8 1-1/2 993102-C6 $89.10 00000002
0 80 .044 .0013 .028 3/16 3 1/8 1-1/2 959502-C6 $93.20 00000003
0 80 .044 .0013 .028 1/4 3 1/8 1-1/2 930302-C6 $97.30 00000004
0 80 .044 .0013 .028 5/16 3 1/8 1-1/2 898902-C6 $101.00 00000005
1 64-72 .054 .0014 .034 1/8 3 1/8 1-1/2 986604-C6 $85.50 00000006
1 64-72 .054 .0014 .034 3/16 3 1/8 1-1/2 993104-C6 $89.10 00000007
1 64-72 .054 .0014 .034 1/4 3 1/8 1-1/2 959504-C6 $93.20 00000008
1 64-72 .054 .0014 .034 5/16 3 1/8 1-1/2 930304-C6 $97.10 00000009
2 56-64 .064 .0016 .041 5/32 3 1/8 1-1/2 986606-C6 $85.50 00000010
2 56-64 .064 .0016 .041 7/32 3 1/8 1-1/2 993106-C6 $89.10 00000011
2 56-64 .064 .0016 .041 5/16 3 1/8 1-1/2 959506-C6 $93.20 00000012
2 56-64 .064 .0016 .041 7/16 3 1/8 1-1/2 930306-C6 $97.30 00000013
3 48-56 .072 .0018 .046 5/32 3 1/8 1-1/2 986608-C6 $85.50 00000014
3 48-56 .072 .0018 .046 1/4 3 1/8 1-1/2 993108-C6 $89.10 00000015
3 48-56 .072 .0018 .046 3/8 3 1/8 1-1/2 959508-C6 $93.20 00000016
4 40-48 .080 .0021 .050 5/32 3 3/16 2 986610-C6 $86.10 00000017
4 40-48 .080 .0021 .050 1/4 3 3/16 2 993110-C6 $91.20 00000018
4 40-48 .080 .0021 .050 5/16 3 3/16 2 771710-C6 $93.10 00000019
4 40-48 .080 .0021 .050 3/8 3 3/16 2 959510-C6 $95.00 00000020
4 40-48 .080 .0021 .050 1/2 3 3/16 2 930310-C6 $99.00 00000021
4 40-48 .080 .0021 .050 5/8 3 3/16 2 898910-C6 $102.90 00000022
5 40-44 .093 .0023 .063 3/16 4 3/16 2 986615-C6 $91.20 00000023
5 40-44 .093 .0023 .063 1/2 4 3/16 2 959515-C6 $95.00 00000024
5 40-44 .093 .0023 .063 5/8 4 3/16 2 930315-C6 $99.00 00000025
6 32-40 .098 .0025 .062 1/4 4 3/16 2 986620-C6 $86.10 00000026
6 32-40 .098 .0025 .062 5/16 4 3/16 2 773220-C6 $88.60 00000027
6 32-40 .098 .0025 .062 3/8 4 3/16 2 993120-C6 $91.20 00000028
6 32-40 .098 .0025 .062 1/2 4 3/16 2 959520-C6 $95.00 00000029
6 32-40 .098 .0025 .062 5/8 4 3/16 2 930320-C6 $99.00 00000030
8 32-36 .120 .0028 .084 5/16 4 1/4 2-1/2 986630-C6 $90.40 00000031
8 32-36 .120 .0028 .084 1/2 4 1/4 2-1/2 993130-C6 $95.70 00000032
8 32-36 .120 .0028 .084 5/8 4 1/4 2-1/2 959530-C6 $100.70 00000033
8 32-36 .120 .0028 .084 3/4 4 1/4 2-1/2 930330-C6 $105.70 00000034
8 32-36 .120 .0028 .084 7/8 4 1/4 2-1/2 898930-C6 $110.70 00000035
10 24-36 .135 .0028 .086 5/16 5 1/4 2-1/2 986640-C6 $90.40 00000036
10 24-36 .135 .0028 .086 3/8 5 1/4 2-1/2 773240-C6 $93.10 00000037
10 24-36 .135 .0028 .086 1/2 5 1/4 2-1/2 993140-C6 $95.70 00000038
10 24-36 .135 .0028 .086 5/8 5 1/4 2-1/2 959540-C6 $100.70 00000039
10 24-36 .135 .0028 .086 7/8 5 1/4 2-1/2 930340-C6 $105.70 00000040
10 24-36 .135 .0028 .086 1-1/8 5 1/4 2-1/2 898940-C6 $110.70 00000041
12 24-32 .160 .0030 .111 3/8 5 1/4 2-1/2 986645-C6 $90.40 00000042
12 24-32 .160 .0030 .111 5/8 5 1/4 2-1/2 993145-C6 $100.70 00000043
1/4 20-32 .180 .0030 .122 5/16 5 1/4 2-1/2 845750-C6 $90.40 00000044
1/4 20-32 .180 .0030 .122 1/2 5 1/4 2-1/2 986650-C6 $95.70 00000045
1/4 20-32 .180 .0030 .122 5/8 5 1/4 2-1/2 773250-C6 $98.20 00000046
1/4 20-32 .180 .0030 .122 3/4 5 1/4 2-1/2 993150-C6 $100.70 00000047
1/4 20-32 .180 .0030 .122 1 5 1/4 2-1/2 959550-C6 $105.70 00000048
1/4 20-32 .180 .0030 .122 1-1/4 5 1/4 2-1/2 930350-C6 $110.50 00000049
5/16 18-28 .240 .0036 .174 3/8 5 1/4 2-1/2 845755-C6 $90.40 00000050
5/16 18-28 .240 .0036 .174 1/2 5 1/4 2-1/2 986655-C6 $95.70 00000051
5/16 18-28 .240 .0036 .174 5/8 5 1/4 2-1/2 773255-C6 $98.20 00000052
5/16 18-28 .240 .0036 .174 3/4 5 1/4 2-1/2 993155-C6 $100.70 00000053
5/16 18-28 .240 .0036 .174 1 5 1/4 2-1/2 959555-C6 $105.70 00000054
5/16 18-28 .240 .0036 .174 1-1/4 5 1/4 2-1/2 930355-C6 $110.50 00000055
3/8 16-28 .300 .0036 .227 1/2 5 3/8 2-1/2 845760-C6 $116.60 00000056
3/8 16-28 .300 .0036 .227 3/4 5 3/8 2-1/2 986660-C6 $121.70 00000057
3/8 16-28 .300 .0036 .227 1 5 3/8 2-1/2 993160-C6 $126.80 00000058
3/8 16-28 .300 .0036 .227 1-1/4 5 3/8 2-1/2 959560-C6 $131.90 00000059
3/8 16-28 .300 .0036 .227 1-1/2 5 3/8 3 930360-C6 $136.90 00000060
1/2 12-18 .388 .0056 .294 3/4 5 1/2 3 986670-C6 $134.40 00000061
1/2 12-18 .388 .0056 .294 1-1/4 5 1/2 3 993170-C6 $143.40 00000062
1/2 12-18 .388 .0056 .294 1-3/4 5 1/2 4 959570-C6 $148.60 00000063
1/2 12-18 .388 .0056 .294 2-1/4 5 1/2 4 930370-C6 $153.60 00000064
3/4 10-16 .495 .0063 .385 1 6 1/2 3 986680-C6 $142.50 00000065
3/4 10-16 .495 .0063 .385 1-3/8 6 1/2 3 993180-C6 $154.40 00000066
3/4 10-16 .495 .0063 .385 1-3/4 6 1/2 4 959580-C6 $166.50 00000067
3/4 10-16 .495 .0063 .385 2-1/4 6 1/2 4 930380-C6 $178.50 00000068
1 8-14 .620 .0071 .480 1-5/16 6 5/8 3-1/2 986690-C6 $168.70 00000069
1 8-14 .620 .0071 .480 1-3/4 6 5/8 3-1/2 993190-C6 $180.80 00000070
