Tool # 692470-C3

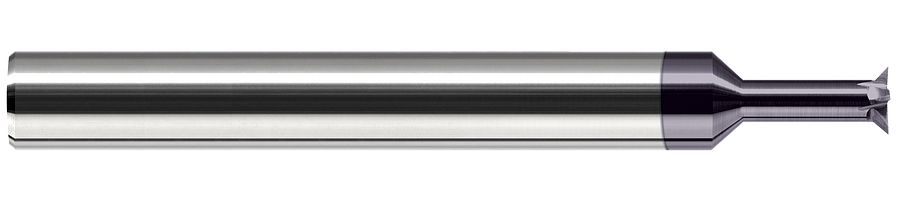

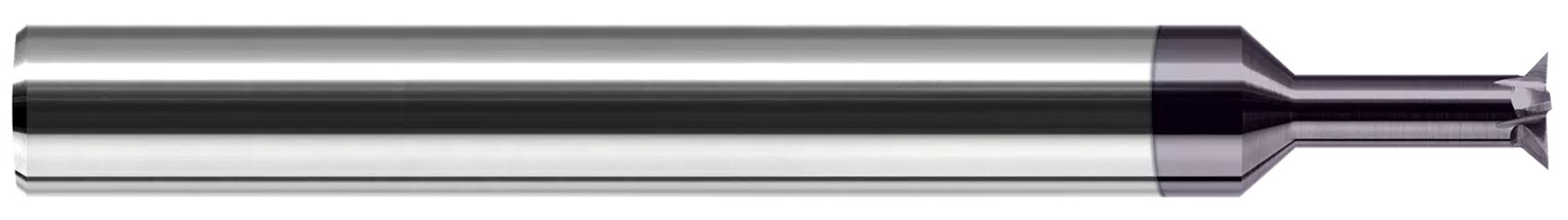

Chamfer Cutters - Back Chamfer Cutters, Specialty Profiles
- Head Diameter: 0.3750" (3/8)
- Axial Length Of Cut: 0.1180"
- Neck Diameter: 0.2370"
- Neck Length: 0.7500" (3/4)
- Flutes: 6
- Tool #: 692470-C3
- Quantity Available: 8
- Price: $166.30
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
Undercutting
Deburring
Chamfering
Materials
Aluminum
Non-Ferrous Metal
Cast Iron
Steel
Stainless Steel
Exotic Metal
Titanium
Plastic
Wood
Composites
Graphite
Hardened Alloys
Green (unfired)

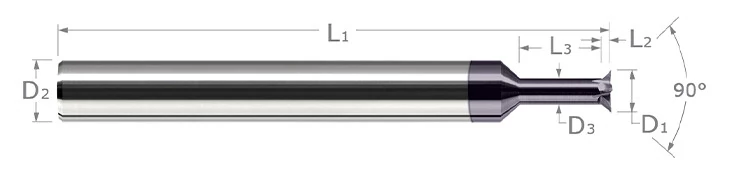

TOOL DIMENSIONS
- Head Diameter 0.3750" (3/8)
- Axial Length Of Cut 0.1180"
- Neck Diameter 0.2370"
- Neck Length 0.7500" (3/4)
- Flutes 6
- Shank Diameter 0.3750" (3/8)
- Overall Length 2.5000" (2-1/2)
- Included Angle 60
- Coating C3
- Profile Back Chamfer
- Catalog Page 353
