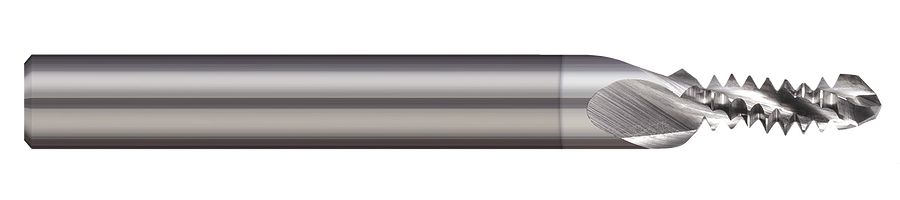

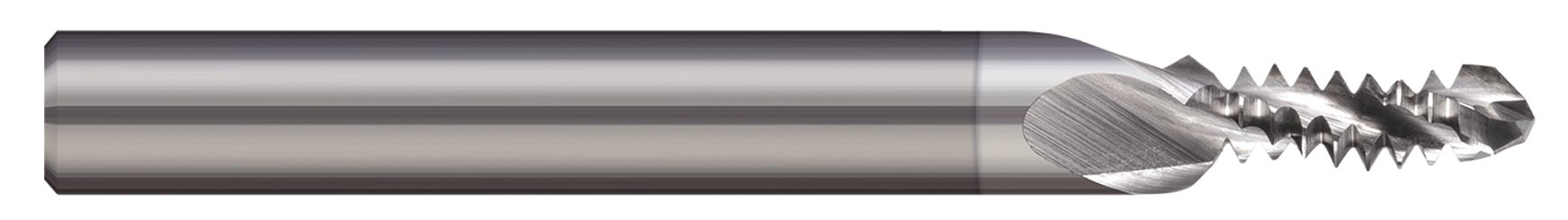

Tool # 820622-C8

Combination Drill/Thread Mills, Holemaking & Threading
tool-details-820622-C8
tool-details-820622-C8
tool-details-820622-C8
TOOL # 820622-C8
  • Thread Size: 6-32
  • Drill Diameter: 0.1076"
  • Length of Cut: 0.3323"
  • Secondary Point Angle Dia: 0.0475"
  • Length of Tip: 0.0707"
see more dimensions
  • Tool #: 820622-C8
  • Quantity Available: 13
  • Price: $124.60
  • Customer Rating:
RESOURCES
OPTIMIZED FOR
Operations
Drilling Drilling
Threading Threading
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel Exotic Metal Titanium Plastic Wood Composites Graphite Hardened Alloys Green (unfired)

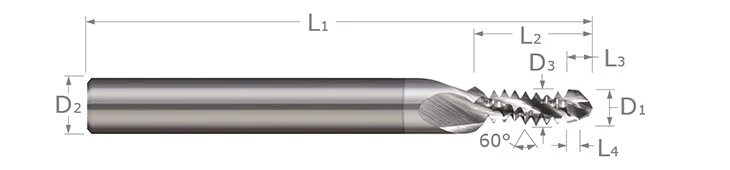

TOOL DIMENSIONS
  • Thread Size 6-32
  • Drill Diameter 0.1076"
  • Length of Cut 0.3323"
  • Secondary Point Angle Dia 0.0475"
  • Length of Tip 0.0707"
  • Length of Thread Relief 0.0312" (1/32)
  • Chamfer Length 0.0284"
  • Shank Diameter 0.1875" (3/16)
  • Overall Length 2.0000" (2)
  • Thread Diameter 0.1000"
  • Included Angle 90
  • Point Angle 130
  • Flutes 3
  • Coating C8
  • Catalog Page 475
