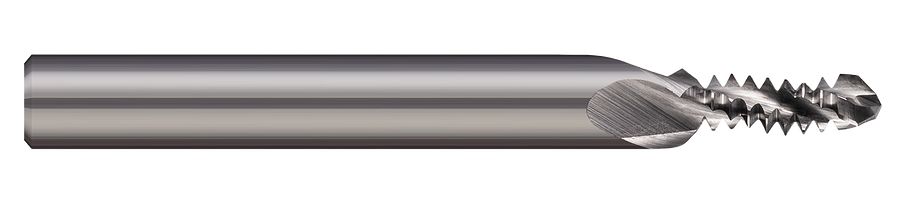

Tool # 820664
Combination Drill/Thread Mills, Holemaking & Threading
![tool-details-820664](https://harveyperformance.widen.net/content/kquubhex7a/jpeg/Harvey-Combined-002_UN_Rep.jpeg?w=900&h=200&position=c&color=ffffffff&quality=80&u=fcaax3)
![tool-details-820664](https://harveyperformance.widen.net/content/szw9vdjsun/png/Harvey-Combined-002_TableDims.png?position=c&color=ffffff00&quality=80&u=d9orjt)
![tool-details-820664](https://harveyperformance.widen.net/content/hzjrdf36ht/jpeg/Harvey-Combined-002_TableRep.jpeg?w=1743&h=245&position=c&color=ffffffff&quality=80&u=d9orjt)
- Thread Size: 3/8-16
- Drill Diameter: 0.3141"
- Length of Cut: 1.0190"
- Secondary Point Angle Dia: 0.2140"
- Length of Tip: 0.1592"
- Tool #: 820664
- Quantity Available: 14
- Price: $259.40
- Customer Rating:
Resources
SIM Files / Tool Libraries
OPTIMIZED FOR
Operations
![Drilling](https://harveyperformance.widen.net/content/cisw5ozix8/png/Icon-Drilling.png?w=200&h=200&position=c&color=ffffffff&quality=80&u=fcaax3)
![Threading](https://harveyperformance.widen.net/content/tkgemac2cl/png/Icon-Threading.png?w=200&h=200&position=c&color=ffffffff&quality=80&u=fcaax3)
Materials
TOOL DIMENSIONS
- Thread Size 3/8-16
- Drill Diameter 0.3141"
- Length of Cut 1.0190"
- Secondary Point Angle Dia 0.2140"
- Length of Tip 0.1592"
- Length of Thread Relief 0.0625" (1/16)
- Chamfer Length 0.0468"
- Shank Diameter 0.5000" (1/2)
- Overall Length 3.0000" (3)
- Thread Diameter 0.2850"
- Included Angle 90
- Point Angle 130
- Flutes 3
- Coating UN
- Catalog Page 502
