Tool # 899916-C6

Thread Milling Cutters - Tri-Form - UN Threads, Holemaking & Threading
tool-details-899916-C6
Tool # 899916-C6
  • Thread Size: 4-40
  • Cutter Diameter: 0.0850"
  • Length of Cut: 0.0750"
  • Neck Diameter: 0.0530"
  • Max Depth Of Thread: 0.0930" (3/32)
see more dimensions
  • Tool #: 899916-C6
  • Quantity Available: 17
  • Price: $166.20
  • Customer Rating:
RESOURCES
OPTIMIZED FOR
Operations
Threading Threading
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel High Temp Alloys Titanium Plastic Wood Composites Graphite Hardened Alloys Green (unfired)

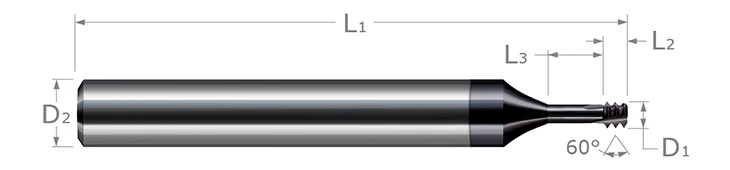

TOOL DIMENSIONS
  • Thread Size 4-40
  • Cutter Diameter 0.0850"
  • Length of Cut 0.0750"
  • Neck Diameter 0.0530"
  • Max Depth Of Thread 0.0930" (3/32)
  • Flutes 3
  • Shank Diameter 0.2500" (1/4)
  • Overall Length 2.5000" (2-1/2)
  • Included Angle 60
  • Coating C6
  • Profile Tri-Form
