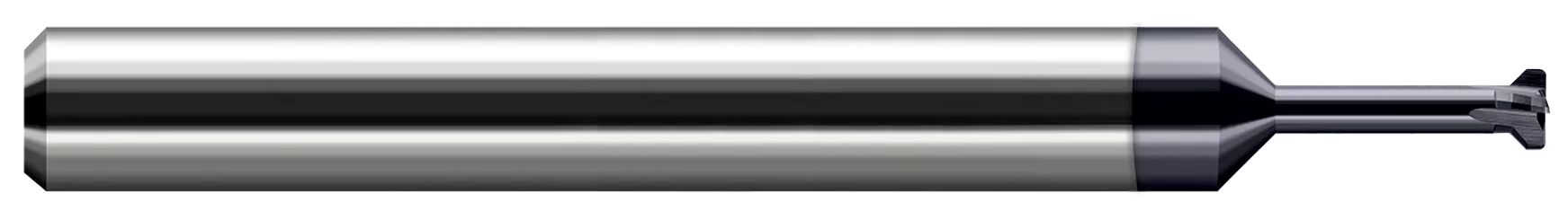

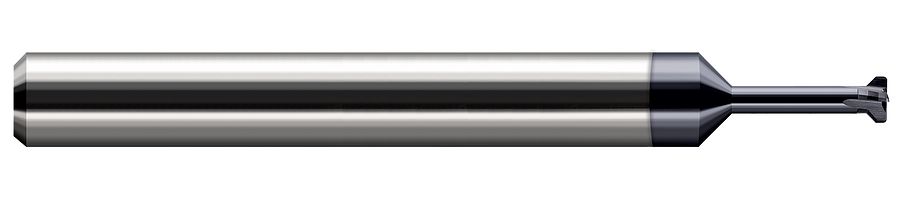

Tool # 946027-C3

Thread Milling Cutters - Thread Relief Cutter, Holemaking & Threading
tool-details-946027-C3
tool-details-946027-C3
tool-details-946027-C3
TOOL # 946027-C3
  • Cutter Diameter: 0.2450"
  • Length of Cut: 0.1020"
  • Width (TSC): 0.0600"
  • Radius 1: 0.0200"
  • Radius: 0.0200"
see more dimensions
  • Tool #: 946027-C3
  • Quantity Available: 5
  • Price: $86.70
  • Customer Rating:
Resources
OPTIMIZED FOR
Operations
Undercutting Undercutting
Threading Threading
Chamfering Chamfering
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel Exotic Metal Titanium Plastic Wood Composites Graphite Hardened Alloys Green (unfired)

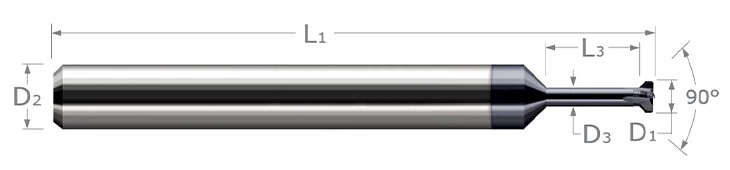

TOOL DIMENSIONS
  • Cutter Diameter 0.2450"
  • Length of Cut 0.1020"
  • Width (TSC) 0.0600"
  • Radius 1 0.0200"
  • Radius 0.0200"
  • Neck Diameter 0.1550"
  • Neck Length 0.7970" (51/64)
  • Radial Depth Of Cut 0.0420"
  • Shank Diameter 0.2500" (1/4)
  • Overall Length 2.5000" (2-1/2)
  • Flutes 4
  • Included Angle 90
  • Coating C3
  • Profile Thread Relief
  • Catalog Page 534
