Double Angle Shank Cutters - Pointed

Specialty Profiles
Specialty Profiles

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations, while its 60° angle allows it to be used for thread milling, as well.

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • 60° angle can also be used for thread milling
  • Solid carbide
  • CNC ground in the USA

Advanced Search

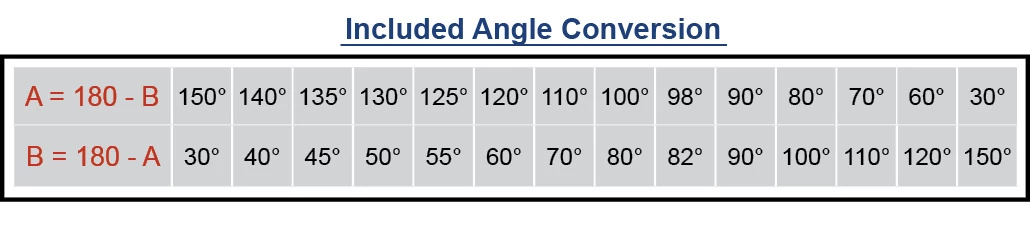

INCL. ANGLE CUTTER DIA. CUTTER WIDTH NECK DIA. NECK LENGTH FLUTES SHANK DIA. OAL UNCOATED AlTiN COATED Add to Cart Default Sort
B
+1°-1°
D1
+.000"-.002"
L2   L3
+.020"-.000"
# D2 L1 TOOL # PRICE TOOL # PRICE
30° 1/16 .008 1/32 .093 2 1/8 1-1/2 66062 $48.10 66062-C3 $52.70 00000001
30° 5/64 .010 .039 .118 2 1/8 1-1/2 66078 $48.10 66078-C3 $52.70 00000002
30° 3/32 .012 3/64 .141 2 1/8 1-1/2 66093 $48.10 66093-C3 $52.70 00000003
30° 1/8 .017 1/16 .187 4 1/8 1-1/2 66108 $47.00 66108-C3 $51.60 00000004
30° 1/8 .017 1/16 .500 4 1/8 1-1/2 934308 $48.10 934308-C3 $52.70 00000005
30° 3/16 .025 3/32 .312 4 3/16 2 66112 $48.70 66112-C3 $53.70 00000006
30° 1/4 .033 1/8 .312 4 1/4 2 66116 $61.90 66116-C3 $68.70 00000007
30° 1/4 .033 1/8 .625 4 1/4 2 921716 $72.90 921716-C3 $79.70 00000008
30° 3/8 .033 1/4 .500 6 3/8 2-1/2 66105 $81.40 66105-C3 $90.40 00000009
30° 3/8 .033 1/4 1.500 6 3/8 3-1/2 934324 $96.80 934324-C3 $105.80 00000010
30° 1/2 .050 5/16 .500 6 1/2 3 66110 $112.00 66110-C3 $125.40 00000011
30° 1/2 .050 5/16 1.500 6 1/2 4 934332 $142.90 934332-C3 $156.30 00000012
40° 1/4 .045 1/8 .312 4 1/4 2 29720 $62.20 29720-C3 $69.00 00000013
40° 1/4 .045 1/8 .625 4 1/4 2 918116 $72.40 918116-C3 $79.20 00000014
40° 3/8 .045 1/4 .500 6 3/8 2-1/2 909924 $78.70 909924-C3 $87.70 00000015
40° 3/8 .045 1/4 1.500 6 3/8 3-1/2 967505 $97.80 967505-C3 $106.80 00000016
40° 1/2 .068 5/16 .500 6 1/2 3 909932 $107.20 909932-C3 $120.60 00000017
40° 1/2 .068 5/16 1.500 6 1/2 4 967510 $139.40 967510-C3 $152.80 00000018
45° 1/8 .026 1/16 .187 4 1/8 1-1/2 905608 $48.10 905608-C3 $52.70 00000019
45° 3/16 .039 3/32 .312 4 3/16 2 905612 $48.70 905612-C3 $53.70 00000020
45° 1/4 .052 1/8 .312 4 1/4 2 29723 $61.90 29723-C3 $68.70 00000021
45° 1/4 .052 1/8 .625 4 1/4 2 917016 $72.90 917016-C3 $79.70 00000022
45° 1/4 .052 1/8 1.000 4 1/4 3 984903 $75.80 984903-C3 $82.60 00000023
45° 3/8 .052 1/4 .500 6 3/8 2-1/2 905624 $78.30 905624-C3 $87.30 00000024
45° 3/8 .052 1/4 1.000 6 3/8 2-1/2 917024 $89.30 917024-C3 $98.30 00000025
45° 3/8 .052 1/4 1.500 6 3/8 3-1/2 984905 $97.30 984905-C3 $106.30 00000026
45° 1/2 .078 5/16 .500 6 1/2 3 905632 $106.70 905632-C3 $120.10 00000027
45° 1/2 .078 5/16 1.500 6 1/2 4 984910 $138.70 984910-C3 $152.10 00000028
50° 1/8 .029 1/16 .187 4 1/8 1-1/2 985801 $46.50 985801-C3 $51.10 00000029
50° 1/8 .029 1/16 .500 4 1/8 1-1/2 974401 $55.60 974401-C3 $60.20 00000030
50° 3/16 .044 3/32 .312 4 3/16 2 985802 $49.70 985802-C3 $54.70 00000031
50° 3/16 .044 3/32 .750 4 3/16 2-1/2 974402 $57.70 974402-C3 $62.70 00000032
50° 1/4 .058 1/8 .312 4 1/4 2 29725 $65.80 29725-C3 $72.60 00000033
50° 1/4 .058 1/8 1.000 4 1/4 3 974403 $76.10 974403-C3 $82.90 00000034
50° 3/8 .058 1/4 .500 6 3/8 2-1/2 985805 $80.90 985805-C3 $89.90 00000035
50° 3/8 .058 1/4 1.500 6 3/8 3-1/2 974405 $99.20 974405-C3 $108.20 00000036
50° 1/2 .088 5/16 .500 6 1/2 3 985810 $110.20 985810-C3 $123.60 00000037
50° 1/2 .088 5/16 1.500 6 1/2 4 974410 $141.40 974410-C3 $154.80 00000038
55° 1/4 .065 1/8 .312 4 1/4 2 29728 $66.10 29728-C3 $72.90 00000039
60° 1/16 .018 1/32 .093 2 1/8 1-1/2 47362 $46.70 47362-C3 $51.30 00000040
60° 1/16 .018 1/32 .156 2 1/8 1-1/2 965562 $46.70 965562-C3 $51.30 00000041
60° 5/64 .023 .039 .118 2 1/8 1-1/2 47378 $46.70 47378-C3 $51.30 00000042
60° 3/32 .027 3/64 .141 2 1/8 1-1/2 47393 $46.70 47393-C3 $51.30 00000043
60° 3/32 .027 3/64 .250 2 1/8 1-1/2 965593 $46.70 965593-C3 $51.30 00000044
60° 1/8 .036 1/16 .125 4 1/8 1-1/2 937501 $43.10 937501-C3 $47.70 00000045
60° 1/8 .036 1/16 .187 4 1/8 1-1/2 16201 $43.10 16201-C3 $47.70 00000046
60° 1/8 .036 1/16 .312 4 1/8 1-1/2 984401 $48.40 984401-C3 $53.00 00000047
60° 1/8 .036 1/16 .500 4 1/8 2 27501 $52.70 27501-C3 $57.30 00000048
60° 1/8 .036 1/16 .875 4 1/8 2 981001 $57.60 981001-C3 $62.20 00000049
60° 5/32 .045 5/64 .250 4 3/16 2 16256 $46.70 16256-C3 $51.70 00000050
60° 5/32 .045 5/64 .625 4 3/16 2-1/2 27556 $52.70 27556-C3 $57.70 00000051
60° 3/16 .055 3/32 .187 4 3/16 2 937502 $45.90 937502-C3 $50.90 00000052
60° 3/16 .055 3/32 .312 4 3/16 2 16202 $45.90 16202-C3 $50.90 00000053
60° 3/16 .055 3/32 .500 4 3/16 2 984402 $53.10 984402-C3 $58.10 00000054
60° 3/16 .055 3/32 .750 4 3/16 2-1/2 27502 $56.40 27502-C3 $61.40 00000055
60° 3/16 .055 3/32 1.000 4 3/16 2-1/2 925502 $59.00 925502-C3 $64.00 00000056
60° 1/4 .072 1/8 .187 4 1/4 2 937503 $61.90 937503-C3 $68.70 00000057
60° 1/4 .072 1/8 .312 4 1/4 2 16203 $61.90 16203-C3 $68.70 00000058
60° 1/4 .072 1/8 .312 6 1/4 2 808016 $66.30 808016-C3 $73.10 00000059
60° 1/4 .072 1/8 .625 4 1/4 2-1/2 984403 $69.40 984403-C3 $76.20 00000060
60° 1/4 .072 1/8 1.000 4 1/4 3 27503 $74.00 27503-C3 $80.80 00000061
60° 1/4 .072 1/8 1.312 4 1/4 3 925503 $74.40 925503-C3 $81.20 00000062
60° 1/4 .072 1/8 1.750 4 1/4 3 981003 $75.50 981003-C3 $82.30 00000063
60° 5/16 .072 3/16 .375 6 5/16 2-1/2 16272 $75.00 16272-C3 $82.90 00000064
60° 5/16 .072 3/16 .875 6 5/16 2-1/2 984472 $77.20 984472-C3 $85.10 00000065
60° 3/8 .072 1/4 .312 6 3/8 2-1/2 937505 $78.90 937505-C3 $87.90 00000066
60° 3/8 .072 1/4 .500 6 3/8 2-1/2 16205 $78.90 16205-C3 $87.90 00000067
60° 3/8 .072 1/4 1.000 6 3/8 2-1/2 984405 $88.90 984405-C3 $97.90 00000068
60° 3/8 .072 1/4 1.500 6 3/8 3-1/2 27505 $98.80 27505-C3 $107.80 00000069
60° 3/8 .072 1/4 2.000 6 3/8 3-1/2 925505 $103.50 925505-C3 $112.50 00000070
60° 1/2 .109 5/16 .500 6 1/2 3 16210 $108.00 16210-C3 $121.40 00000071
60° 1/2 .109 5/16 1.000 6 1/2 3 984410 $117.70 984410-C3 $131.10 00000072
60° 1/2 .109 5/16 1.500 6 1/2 4 27510 $137.70 27510-C3 $151.10 00000073
60° 1/2 .109 5/16 2.000 6 1/2 4 925510 $141.20 925510-C3 $154.60 00000074
60° 1/2 .109 5/16 2.625 6 1/2 4 981010 $144.90 981010-C3 $158.30 00000075
60° 5/8 .144 3/8 .750 6 5/8 3-1/2 16215 $194.40 16215-C3 $207.80 00000076
70° 1/4 .088 1/8 .312 4 1/4 2 871903 $66.10 871903-C3 $72.90 00000077
70° 3/8 .088 1/4 1.500 6 3/8 3-1/2 791005 $104.30 791005-C3 $113.30 00000078
80° 1/4 .105 1/8 .312 4 1/4 2 29740 $66.10 29740-C3 $72.90 00000079
80° 3/8 .105 1/4 1.500 6 3/8 3-1/2 792005 $104.30 792005-C3 $113.30 00000080
82° 1/4 .109 1/8 .312 4 1/4 2 29741 $66.10 29741-C3 $72.90 00000081
82° 3/8 .109 1/4 1.500 6 3/8 3-1/2 920805 $104.30 920805-C3 $113.30 00000082
82° 1/2 .163 5/16 1.500 6 1/2 4 920810 $145.30 920810-C3 $158.70 00000083
90° 1/32 .015 1/64 .093 2 1/8 1-1/2 45131 $42.00 45131-C3 $46.60 00000084
90° 1/16 .031 1/32 .062 2 1/8 1-1/2 946862 $42.00 946862-C3 $46.60 00000085
90° 1/16 .031 1/32 .093 2 1/8 1-1/2 19162 $42.00 19162-C3 $46.60 00000086
90° 1/16 .031 1/32 .125 2 1/8 1-1/2 807662 $42.00 807662-C3 $46.60 00000087
90° 1/16 .031 1/32 .156 2 1/8 1-1/2 45162 $46.70 45162-C3 $51.30 00000088
90° 1/16 .031 1/32 .156 4 1/8 1-1/2 832404 $49.10 832404-C3 $53.70 00000089
90° 1/16 .031 1/32 .250 2 1/8 1-1/2 71662 $51.20 71662-C3 $55.80 00000090
90° 1/16 .031 1/32 .312 2 1/8 1-1/2 857862 $51.20 857862-C3 $55.80 00000091
90° 1/16 .031 1/32 .375 2 1/8 1-1/2 963662 $51.20 963662-C3 $55.80 00000092
90° 5/64 .039 .039 .078 2 1/8 1-1/2 946878 $42.00 946878-C3 $46.60 00000093
90° 5/64 .039 .039 .093 2 1/8 1-1/2 807105 $42.00 807105-C3 $46.60 00000094
90° 5/64 .039 .039 .118 2 1/8 1-1/2 19178 $42.00 19178-C3 $46.60 00000095
90° 5/64 .039 .039 .125 2 1/8 1-1/2 807005 $42.00 807005-C3 $46.60 00000096
90° 5/64 .039 .039 .187 2 1/8 1-1/2 45178 $46.70 45178-C3 $51.30 00000097
90° 5/64 .039 .039 .187 4 1/8 1-1/2 832405 $49.10 832405-C3 $53.70 00000098
90° 5/64 .039 .039 .250 2 1/8 1-1/2 822178 $49.10 822178-C3 $58.10 00000099
90° 5/64 .039 .039 .312 2 1/8 1-1/2 71678 $51.20 71678-C3 $55.80 00000100
90° 5/64 .039 .039 .500 2 1/8 1-1/2 963678 $51.20 963678-C3 $55.80 00000101
90° 3/32 .047 3/64 .093 2 1/8 1-1/2 946893 $42.00 946893-C3 $46.60 00000102
90° 3/32 .047 3/64 .141 2 1/8 1-1/2 19193 $42.00 19193-C3 $46.60 00000103
90° 3/32 .047 3/64 .141 4 1/8 1-1/2 838806 $42.00 838806-C3 $46.60 00000104
90° 3/32 .047 3/64 .187 2 1/8 1-1/2 807693 $42.00 807693-C3 $46.60 00000105
90° 3/32 .047 3/64 .250 2 1/8 1-1/2 45193 $46.70 45193-C3 $51.30 00000106
90° 3/32 .047 3/64 .250 4 1/8 1-1/2 832406 $49.10 832406-C3 $53.70 00000107
90° 3/32 .047 3/64 .312 2 1/8 1-1/2 807493 $51.20 807493-C3 $55.80 00000108
90° 3/32 .047 3/64 .375 2 1/8 1-1/2 71693 $51.20 71693-C3 $55.80 00000109
90° 3/32 .047 3/64 .375 4 1/8 1-1/2 792906 $51.20 792906-C3 $55.80 00000110
90° 3/32 .047 3/64 .500 2 1/8 1-1/2 857893 $51.20 857893-C3 $55.80 00000111
90° 3/32 .047 3/64 .625 2 1/8 2 963693 $53.10 963693-C3 $57.70 00000112
90° 3/32 .047 3/64 .750 2 1/8 2 855793 $55.30 855793-C3 $59.90 00000113
90° 3 mm .059 .059 .187 2 1/8 1-1/2 1913M $42.70 1913M-C3 $47.30 00000114
90° 3 mm .059 .059 .312 2 1/8 1-1/2 4513M $49.10 4513M-C3 $53.70 00000115
90° 1/8 .062 1/16 .125 4 1/8 1-1/2 946901 $42.00 946901-C3 $46.60 00000116
90° 1/8 .062 1/16 .125 6 1/8 1-1/2 791908 $42.00 791908-C3 $46.60 00000117
90° 1/8 .062 1/16 .187 4 1/8 1-1/2 19201 $42.00 19201-C3 $46.60 00000118
90° 1/8 .062 1/16 .187 6 1/8 1-1/2 838808 $44.00 838808-C3 $48.60 00000119
90° 1/8 .062 1/16 .250 4 1/8 1-1/2 807308 $44.60 807308-C3 $49.20 00000120
90° 1/8 .062 1/16 .312 4 1/8 1-1/2 72601 $47.20 72601-C3 $51.80 00000121
90° 1/8 .062 1/16 .312 6 1/8 1-1/2 847408 $49.60 847408-C3 $54.20 00000122
90° 1/8 .062 1/16 .375 4 1/8 1-1/2 806908 $47.20 806908-C3 $51.80 00000123
90° 1/8 .062 1/16 .500 4 1/8 2 19501 $54.50 19501-C3 $59.10 00000124
90° 1/8 .062 1/16 .500 6 1/8 2 807908 $56.90 807908-C3 $61.50 00000125
90° 1/8 .062 1/16 .625 4 1/8 2 71701 $56.40 71701-C3 $61.00 00000126
90° 1/8 .062 1/16 .750 4 1/8 2 821808 $57.80 821808-C3 $64.60 00000127
90° 1/8 .062 1/16 .875 4 1/8 2 26801 $59.40 26801-C3 $64.00 00000128
90° 1/8 .062 1/16 1.125 4 1/8 2-1/2 963701 $65.20 963701-C3 $69.80 00000129
90° 5/32 .078 5/64 .156 4 3/16 2 946956 $42.50 946956-C3 $47.50 00000130
90° 5/32 .078 5/64 .250 4 3/16 2 19256 $44.70 19256-C3 $49.70 00000131
90° 5/32 .078 5/64 .250 6 3/16 2 838810 $46.00 838810-C3 $51.00 00000132
90° 5/32 .078 5/64 .375 4 3/16 2 807310 $47.90 807310-C3 $52.90 00000133
90° 5/32 .078 5/64 .437 4 3/16 2 72656 $51.20 72656-C3 $56.20 00000134
90° 5/32 .078 5/64 .500 4 3/16 2 807210 $51.20 807210-C3 $56.20 00000135
90° 5/32 .078 5/64 .625 4 3/16 2-1/2 19556 $55.10 19556-C3 $60.10 00000136
90° 5/32 .078 5/64 1.125 4 3/16 2-1/2 26856 $61.60 26856-C3 $66.60 00000137
90° 3/16 .093 3/32 .187 4 3/16 2 946902 $43.00 946902-C3 $48.00 00000138
90° 3/16 .093 3/32 .187 6 3/16 2 807812 $45.30 807812-C3 $50.30 00000139
90° 3/16 .093 3/32 .250 4 3/16 2 807112 $43.80 807112-C3 $48.80 00000140
90° 3/16 .093 3/32 .312 4 3/16 2 19202 $43.80 19202-C3 $48.80 00000141
90° 3/16 .093 3/32 .312 6 3/16 2 838812 $46.10 838812-C3 $51.10 00000142
90° 3/16 .093 3/32 .375 4 3/16 2 807312 $47.90 807312-C3 $52.90 00000143
90° 3/16 .093 3/32 .500 4 3/16 2 72602 $52.10 72602-C3 $57.10 00000144
90° 3/16 .093 3/32 .500 6 3/16 2 847412 $54.60 847412-C3 $59.60 00000145
90° 3/16 .093 3/32 .625 4 3/16 2 807212 $55.30 807212-C3 $60.30 00000146
90° 3/16 .093 3/32 .750 4 3/16 2-1/2 19502 $55.30 19502-C3 $60.30 00000147
90° 3/16 .093 3/32 .750 6 3/16 2-1/2 822612 $56.60 822612-C3 $61.60 00000148
90° 3/16 .093 3/32 1.000 4 3/16 2-1/2 71702 $60.40 71702-C3 $65.40 00000149
90° 3/16 .093 3/32 1.312 4 3/16 2-1/2 26802 $61.90 26802-C3 $66.90 00000150
90° 3/16 .093 3/32 1.625 4 3/16 3 963702 $68.70 963702-C3 $73.70 00000151
90° 6 mm .118 .118 .312 4 1/4 2 19262 $68.40 19262-C3 $75.20 00000152
90° 6 mm .118 .118 .625 4 1/4 2 72662 $70.70 72662-C3 $77.50 00000153
90° 6 mm .118 .118 1.000 4 1/4 2-1/2 19562 $73.00 19562-C3 $79.80 00000154
90° 1/4 .125 1/8 .187 4 1/4 2 946903 $52.70 946903-C3 $59.50 00000155
90° 1/4 .125 1/8 .250 4 1/4 2 807116 $53.70 807116-C3 $60.50 00000156
90° 1/4 .125 1/8 .312 4 1/4 2 19203 $53.70 19203-C3 $60.50 00000157
90° 1/4 .125 1/8 .312 6 1/4 2 838816 $56.40 838816-C3 $63.20 00000158
90° 1/4 .125 1/8 .375 4 1/4 2-1/2 807016 $59.40 807016-C3 $66.20 00000159
90° 1/4 .125 1/8 .500 4 1/4 2 807316 $54.30 807316-C3 $61.10 00000160
90° 1/4 .125 1/8 .625 4 1/4 2-1/2 72603 $59.60 72603-C3 $66.40 00000161
90° 1/4 .125 1/8 .625 6 1/4 2-1/2 847416 $62.60 847416-C3 $69.40 00000162
90° 1/4 .125 1/8 .750 4 1/4 2-1/2 807216 $59.60 807216-C3 $66.40 00000163
90° 1/4 .125 1/8 1.000 4 1/4 3 19503 $65.20 19503-C3 $72.00 00000164
90° 1/4 .125 1/8 1.000 6 1/4 3 822616 $68.20 822616-C3 $72.80 00000165
90° 1/4 .125 1/8 1.250 4 1/4 3 822216 $69.70 822216-C3 $76.50 00000166
90° 1/4 .125 1/8 1.312 4 1/4 3 71703 $69.70 71703-C3 $76.50 00000167
90° 1/4 .125 1/8 1.500 4 1/4 3 821816 $71.80 821816-C3 $78.60 00000168
90° 1/4 .125 1/8 1.750 4 1/4 3 26803 $71.80 26803-C3 $78.60 00000169
90° 1/4 .125 1/8 2.125 4 1/4 4 963703 $77.70 963703-C3 $85.60 00000170
90° 5/16 .125 3/16 .250 6 5/16 2-1/2 946904 $72.60 946904-C3 $80.50 00000171
90° 5/16 .125 3/16 .375 6 5/16 2-1/2 19272 $75.00 19272-C3 $82.90 00000172
90° 5/16 .125 3/16 .625 6 5/16 2-1/2 833572 $76.00 833572-C3 $83.90 00000173
90° 5/16 .125 3/16 .875 6 5/16 2-1/2 72672 $76.00 72672-C3 $83.90 00000174
90° 5/16 .125 3/16 1.000 6 5/16 3 807220 $81.40 807220-C3 $89.30 00000175
90° 5/16 .125 3/16 1.250 6 5/16 3 19572 $81.40 19572-C3 $89.30 00000176
90° 5/16 .125 3/16 1.625 6 5/16 3 71772 $84.50 71772-C3 $92.40 00000177
90° 5/16 .125 3/16 2.125 6 5/16 3 26872 $87.60 26872-C3 $95.50 00000178
90° 3/8 .125 1/4 .312 6 3/8 2-1/2 946905 $72.90 946905-C3 $81.90 00000179
90° 3/8 .125 1/4 .375 6 3/8 2-1/2 807124 $75.30 807124-C3 $84.30 00000180
90° 3/8 .125 1/4 .500 6 3/8 2-1/2 19205 $76.60 19205-C3 $84.50 00000181
90° 3/8 .125 1/4 .500 8 3/8 2-1/2 838824 $80.50 838824-C3 $89.50 00000182
90° 3/8 .125 1/4 .750 6 3/8 2-1/2 807324 $81.00 807324-C3 $90.00 00000183
90° 3/8 .125 1/4 1.000 6 3/8 2-1/2 72605 $85.30 72605-C3 $94.30 00000184
90° 3/8 .125 1/4 1.000 8 3/8 2-1/2 847424 $94.10 847424-C3 $103.10 00000185
90° 3/8 .125 1/4 1.500 6 3/8 3-1/2 19505 $96.40 19505-C3 $105.40 00000186
90° 3/8 .125 1/4 1.500 8 3/8 3-1/2 822624 $100.20 822624-C3 $104.80 00000187
90° 3/8 .125 1/4 1.750 6 3/8 3-1/2 822224 $101.10 822224-C3 $109.00 00000188
90° 3/8 .125 1/4 2.000 6 3/8 3-1/2 71705 $101.10 71705-C3 $110.10 00000189
90° 3/8 .125 1/4 2.312 6 3/8 3-1/2 26805 $103.80 26805-C3 $112.80 00000190
90° 3/8 .125 1/4 2.625 6 3/8 4 963705 $109.90 963705-C3 $122.20 00000191
90° 7/16 .157 9/32 .500 6 7/16 2-3/4 19208 $113.10 19208-C3 $124.30 00000192
90° 7/16 .157 9/32 1.500 6 7/16 3-1/2 19508 $131.00 19508-C3 $144.40 00000193
90° 1/2 .187 5/16 .312 6 1/2 3 946910 $99.20 946910-C3 $112.60 00000194
90° 1/2 .187 5/16 .500 6 1/2 3 19210 $102.40 19210-C3 $115.80 00000195
90° 1/2 .187 5/16 .500 8 1/2 3 838832 $107.50 838832-C3 $120.90 00000196
90° 1/2 .187 5/16 1.000 6 1/2 3 72610 $111.70 72610-C3 $125.10 00000197
90° 1/2 .187 5/16 1.000 8 1/2 3 847432 $113.50 847432-C3 $126.90 00000198
90° 1/2 .187 5/16 1.250 6 1/2 3-1/2 822432 $114.40 822432-C3 $122.30 00000199
90° 1/2 .187 5/16 1.500 6 1/2 4 19510 $131.00 19510-C3 $144.40 00000200
90° 1/2 .187 5/16 1.500 8 1/2 4 807932 $136.10 807932-C3 $149.50 00000201
90° 1/2 .187 5/16 2.000 6 1/2 4 71710 $135.70 71710-C3 $149.10 00000202
90° 1/2 .187 5/16 2.625 6 1/2 4 26810 $139.30 26810-C3 $152.70 00000203
90° 1/2 .187 5/16 3.125 6 1/2 6 963710 $145.70 963710-C3 $159.10 00000204
90° 5/8 .250 3/8 .750 6 5/8 3-1/2 19215 $194.90 19215-C3 $208.30 00000205
90° 5/8 .250 3/8 1.250 6 5/8 3-1/2 72615 $200.20 72615-C3 $213.60 00000206
100° 1/8 .075 1/16 .187 4 1/8 1-1/2 983401 $45.50 983401-C3 $50.10 00000207
100° 1/8 .075 1/16 .500 4 1/8 1-1/2 969901 $54.70 969901-C3 $59.30 00000208
100° 3/16 .113 3/32 .312 4 3/16 2 983402 $47.80 983402-C3 $52.80 00000209
100° 3/16 .113 3/32 .750 4 3/16 2-1/2 969902 $56.90 969902-C3 $61.90 00000210
100° 1/4 .149 1/8 .312 4 1/4 2 29750 $66.60 29750-C3 $73.40 00000211
100° 1/4 .149 1/8 1.000 4 1/4 3 969903 $76.20 969903-C3 $83.00 00000212
100° 3/8 .149 1/4 .500 6 3/8 2-1/2 983405 $78.60 983405-C3 $87.60 00000213
100° 3/8 .149 1/4 1.500 6 3/8 3-1/2 969905 $99.70 969905-C3 $108.70 00000214
100° 1/2 .224 5/16 .500 6 1/2 3 983410 $104.60 983410-C3 $118.00 00000215
100° 1/2 .224 5/16 1.500 6 1/2 4 969910 $135.40 969910-C3 $148.80 00000216
110° 1/4 .179 1/8 .312 4 1/4 2 830503 $69.80 830503-C3 $76.60 00000217
120° 1/8 .109 1/16 .125 4 1/8 1-1/2 903608 $43.10 903608-C3 $47.70 00000218
120° 1/8 .109 1/16 .187 4 1/8 1-1/2 39108 $43.10 39108-C3 $47.70 00000219
120° 1/8 .109 1/16 .500 4 1/8 2 989401 $51.20 989401-C3 $55.80 00000220
120° 3/16 .163 3/32 .187 4 3/16 2 903612 $46.30 903612-C3 $51.30 00000221
120° 3/16 .163 3/32 .312 4 3/16 2 39112 $47.00 39112-C3 $52.00 00000222
120° 3/16 .163 3/32 .750 4 3/16 2-1/2 989402 $55.10 989402-C3 $60.10 00000223
120° 1/4 .216 1/8 .187 4 1/4 2 903616 $61.20 903616-C3 $68.00 00000224
120° 1/4 .216 1/8 .312 4 1/4 2 39116 $61.90 39116-C3 $68.70 00000225
120° 1/4 .216 1/8 .625 4 1/4 2-1/2 910716 $59.60 910716-C3 $66.40 00000226
120° 1/4 .216 1/8 1.000 4 1/4 3 989403 $70.20 989403-C3 $77.00 00000227
120° 3/8 .216 1/4 .500 6 3/8 2-1/2 39124 $80.90 39124-C3 $89.90 00000228
120° 3/8 .216 1/4 1.000 6 3/8 2-1/2 910724 $89.70 910724-C3 $98.70 00000229
120° 3/8 .216 1/4 1.500 6 3/8 3-1/2 989405 $101.10 989405-C3 $110.10 00000230
120° 1/2 .325 5/16 .500 6 1/2 3 39132 $107.50 39132-C3 $120.90 00000231
120° 1/2 .325 5/16 1.000 6 1/2 3 910732 $116.70 910732-C3 $130.10 00000232
120° 1/2 .325 5/16 1.500 6 1/2 4 989410 $137.20 989410-C3 $150.60 00000233
150° 1/4 .467 1/8 .312 4 1/4 2 826003 $69.80 826003-C3 $76.60 00000234

Write A Review

Thank you for your review. It has been submitted to the website administrator for approval

Please select a rating.

Write A Review

Thank you for your review. It has been submitted to the website administrator for approval

Please select a rating.
