Double Angle Shank Cutters - Tip Radius

Specialty Profiles
Double Angle Shank Cutters - Tip Radius

Specialty Profiles

The tip radius on this Harvey Tool offering of Double Angle Shank Cutters improves strength and wear resistance. Use this tool for several machining operations, including back chamfering, chamfering, deburring, and milling a "V-groove."

  • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
  • Radius on tip for improved strength and wear resistance
  • Reduced neck for long reach machining
  • Solid carbide
  • CNC ground in the USA

Advanced Search

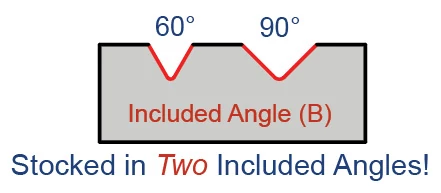

INCL.
ANGLE		 CUTTER
DIA.		 RADIUS CUTTER
WIDTH		 NECK
DIA.		 NECK
LENGTH		 FLUTES SHANK
DIA.		 OAL UNCOATED AlTiN COATED Add to Cart Default Sort
B
+1°-1°
 D1
+.000"-.002"
 R
+.001"-.001"
 L2 # L3
+.020"-.000"
 # D2 L1 TOOL # PRICE TOOL # PRICE
60° 1/8 .005 .042 1/16 .187 4 1/8 1-1/2 922508 $57.10 922508-C3 $62.00 00000001
60° 3/16 .005 .060 3/32 .312 4 3/16 2 922512 $60.10 922512-C3 $65.40 00000002
60° 1/4 .005 .078 1/8 .312 4 1/4 2 922516 $77.00 922516-C3 $84.20 00000003
60° 1/4 .010 .084 1/8 .312 4 1/4 2 934716 $77.00 934716-C3 $84.20 00000004
60° 1/4 .010 .084 1/8 1.000 4 1/4 3 930516 $86.40 930516-C3 $93.60 00000005
60° 3/8 .010 .084 1/4 .500 6 3/8 2-1/2 934724 $103.30 934724-C3 $112.80 00000006
60° 3/8 .015 .089 1/4 .500 6 3/8 2-1/2 911224 $103.30 911224-C3 $112.80 00000007
60° 1/2 .010 .120 5/16 .500 6 1/2 3 934732 $125.80 934732-C3 $140.00 00000008
60° 1/2 .015 .126 5/16 .500 6 1/2 3 911232 $125.80 911232-C3 $140.00 00000009
90° 1/16 .005 .035 1/32 .093 2 1/8 1-1/2 45804 $58.20 45804-C3 $63.10 00000010
90° 5/64 .005 .043 .039 .118 2 1/8 1-1/2 45805 $58.20 45805-C3 $63.10 00000011
90° 3/32 .005 .050 3/64 .141 2 1/8 1-1/2 45806 $58.20 45806-C3 $63.10 00000012
90° 1/8 .005 .067 1/16 .187 4 1/8 1-1/2 45808 $58.20 45808-C3 $63.10 00000013
90° 1/8 .005 .067 1/16 .500 4 1/8 1-1/2 928708 $71.80 928708-C3 $76.70 00000014
90° 1/8 .010 .071 1/16 .187 4 1/8 1-1/2 46608 $58.20 46608-C3 $63.10 00000015
90° 5/32 .005 .082 5/64 .250 4 3/16 2 45810 $61.30 45810-C3 $66.60 00000016
90° 5/32 .005 .082 5/64 .625 4 3/16 2-1/2 928710 $68.60 928710-C3 $73.90 00000017
90° 3/16 .005 .099 3/32 .312 4 3/16 2 45812 $61.30 45812-C3 $66.60 00000018
90° 3/16 .005 .099 3/32 .750 4 3/16 2-1/2 928712 $68.60 928712-C3 $73.90 00000019
90° 3/16 .010 .103 3/32 .312 4 3/16 2 46612 $61.30 46612-C3 $66.60 00000020
90° 1/4 .005 .129 1/8 .312 4 1/4 2 45816 $70.60 45816-C3 $77.80 00000021
90° 1/4 .005 .129 1/8 .625 4 1/4 2-1/2 898416 $75.70 898416-C3 $82.90 00000022
90° 1/4 .005 .129 1/8 1.000 4 1/4 3 928716 $82.40 928716-C3 $89.60 00000023
90° 1/4 .010 .133 1/8 .312 4 1/4 2 46616 $70.60 46616-C3 $77.80 00000024
90° 1/4 .010 .133 1/8 .625 4 1/4 2-1/2 890716 $75.70 890716-C3 $82.90 00000025
90° 1/4 .010 .133 1/8 1.000 4 1/4 3 931916 $82.40 931916-C3 $89.60 00000026
90° 1/4 .015 .137 1/8 .312 4 1/4 2 988616 $70.60 988616-C3 $77.80 00000027
90° 1/4 .020 .142 1/8 .312 4 1/4 2 831016 $70.60 831016-C3 $77.80 00000028
90° 5/16 .005 .130 3/16 1.250 6 5/16 3 928720 $87.30 928720-C3 $95.70 00000029
90° 5/16 .010 .134 3/16 .375 6 5/16 2-1/2 46620 $88.80 46620-C3 $97.20 00000030
90° 5/16 .010 .134 3/16 1.250 6 5/16 3 931920 $89.70 931920-C3 $98.10 00000031
90° 3/8 .010 .133 1/4 .500 6 3/8 2-1/2 46624 $94.70 46624-C3 $104.20 00000032
90° 3/8 .010 .133 1/4 1.000 6 3/8 2-1/2 890724 $97.20 890724-C3 $106.70 00000033
90° 3/8 .010 .133 1/4 1.500 6 3/8 3-1/2 931924 $115.30 931924-C3 $124.80 00000034
90° 3/8 .015 .137 1/4 .500 6 3/8 2-1/2 988624 $94.70 988624-C3 $104.20 00000035
90° 3/8 .015 .137 1/4 1.000 6 3/8 2-1/2 894124 $97.20 894124-C3 $106.70 00000036
90° 3/8 .015 .137 1/4 1.500 6 3/8 3-1/2 923524 $115.30 923524-C3 $124.80 00000037
90° 3/8 .020 .142 1/4 .500 6 3/8 2-1/2 831024 $94.70 831024-C3 $104.20 00000038
90° 1/2 .010 .196 5/16 .500 6 1/2 3 46632 $121.50 46632-C3 $135.70 00000039
90° 1/2 .010 .196 5/16 1.000 6 1/2 3 890732 $125.00 890732-C3 $139.20 00000040
90° 1/2 .010 .196 5/16 1.500 6 1/2 4 931932 $150.70 931932-C3 $164.90 00000041
90° 1/2 .015 .200 5/16 .500 6 1/2 3 988632 $121.50 988632-C3 $135.70 00000042
90° 1/2 .015 .200 5/16 1.000 6 1/2 3 894132 $125.00 894132-C3 $139.20 00000043
90° 1/2 .015 .200 5/16 1.500 6 1/2 4 923532 $150.70 923532-C3 $164.90 00000044
