Dovetail Cutters - Long Reach

Specialty Profiles
Specialty Profiles

With its reduced neck for long reach machining operations, and its corner radius profile for improved strength, this solid carbide offering of Dovetail Cutters is built to last. Browse from six included angles, and choose between uncoated or AlTiN coated styles.

  • Reduced neck for long reach machining
  • Corner radius for improved strength
  • Solid carbide
  • CNC ground in the USA

Advanced Search

* Diameter measured over radii (not to theoretical sharp corner)

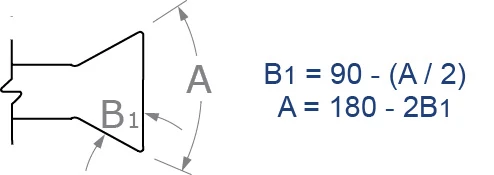

INCLUDED ANGLE CUTTER DIA.* LENGTH OF CUT NECK DIA. NECK LENGTH CORNER RADIUS FLUTES SHANK DIA. OAL UNCOATED AlTiN COATED Add to Cart Default Sort
A
+1°-1°
D1
+.000"-.002"
L2
+.020"-.000"
  L3
+.030"-.000"
R    D2 L1 TOOL # PRICE TOOL # PRICE
10° 1/8 .187 .094 .125 .010 2 1/8 1-1/2 899108 $96.20 899108-C3 $100.80 00000001
10° 1/4 .312 .197 .250 .010 2 1/4 2 899116 $122.40 899116-C3 $129.20 00000002
10° 1/2 .625 .392 .250 .010 3 1/2 3 899132 $185.80 899132-C3 $199.20 00000003
20° 1/8 .125 .085 .125 .010 2 1/8 1-1/2 877408 $84.20 877408-C3 $88.80 00000004
20° 1/4 .250 .166 .250 .010 2 1/4 2 877416 $106.70 877416-C3 $113.50 00000005
20° 1/2 .500 .328 .250 .010 3 1/2 3 877432 $162.00 877432-C3 $175.40 00000006
30° 1/16 .045 .041 .062 .005 2 1/8 1-1/2 849904 $87.20 849904-C3 $91.80 00000007
30° 3/32 .078 .057 .093 .010 2 1/8 1-1/2 914806 $84.20 914806-C3 $88.80 00000008
30° 1/8 .093 .081 .125 .010 2 1/8 1-1/2 914808 $84.20 914808-C3 $88.80 00000009
30° 3/16 .125 .127 .187 .010 2 3/16 2 914812 $87.40 914812-C3 $92.40 00000010
30° 1/4 .156 .172 .250 .010 2 1/4 2 914816 $104.90 914816-C3 $111.70 00000011
30° 3/8 .250 .247 .250 .010 3 3/8 2-1/2 914824 $156.90 914824-C3 $165.90 00000012
30° 1/2 .312 .339 .250 .010 3 1/2 3 914832 $159.50 914832-C3 $172.90 00000013
40° 1/8 .093 .066 .125 .010 2 1/8 1-1/2 864008 $87.20 864008-C3 $91.80 00000014
40° 1/4 .156 .145 .250 .010 2 1/4 2 864016 $104.90 864016-C3 $111.70 00000015
40° 1/2 .312 .281 .250 .010 3 1/2 3 864032 $159.50 864032-C3 $172.90 00000016
60° 1/16 .032 .032 .062 .005 2 1/8 1-1/2 865504 $84.60 865504-C3 $89.20 00000017
60° 3/32 .045 .056 .093 .010 2 1/8 1-1/2 925306 $81.70 925306-C3 $86.30 00000018
60° 1/8 .056 .060 .125 SHARP! 2 1/8 1-1/2 865908 $80.20 865908-C3 $84.80 00000019
60° 1/8 .062 .068 .125 .010 2 1/8 1-1/2 925308 $81.70 925308-C3 $86.30 00000020
60° 3/16 .093 .095 .187 .010 2 3/16 2 925312 $85.20 925312-C3 $90.20 00000021
60° 1/4 .118 .114 .250 SHARP! 2 1/4 2 865916 $101.10 865916-C3 $107.90 00000022
60° 1/4 .125 .120 .250 .010 2 1/4 2 925316 $102.70 925316-C3 $109.50 00000023
60° 3/8 .187 .174 .250 .010 3 3/8 2-1/2 925324 $114.50 925324-C3 $123.50 00000024
60° 1/2 .218 .248 .250 SHARP! 3 1/2 3 865932 $153.20 865932-C3 $166.60 00000025
60° 1/2 .250 .226 .250 .010 3 1/2 3 925332 $155.70 925332-C3 $169.10 00000026
90° 1/16 .023 .030 .062 .005 2 1/8 1-1/2 885704 $84.60 885704-C3 $89.20 00000027
90° 3/32 .031 .059 .093 .010 2 1/8 1-1/2 931006 $81.70 931006-C3 $86.30 00000028
90° 1/8 .034 .057 .125 SHARP! 2 1/8 1-1/2 884608 $80.20 884608-C3 $84.80 00000029
90° 1/8 .040 .073 .125 .010 2 1/8 1-1/2 931008 $80.40 931008-C3 $85.00 00000030
90° 3/16 .047 .122 .187 .010 2 3/16 2 931012 $85.20 931012-C3 $90.20 00000031
90° 1/4 .068 .114 .250 SHARP! 2 1/4 2 884616 $101.10 884616-C3 $107.90 00000032
90° 1/4 .062 .154 .250 .010 2 1/4 2 931016 $102.70 931016-C3 $109.50 00000033
90° 3/8 .125 .153 .250 .010 3 3/8 2-1/2 931024 $114.50 931024-C3 $123.50 00000034
90° 1/2 .141 .218 .250 SHARP! 3 1/2 3 884632 $153.20 884632-C3 $166.60 00000035
90° 1/2 .156 .216 .250 .010 3 1/2 3 931032 $155.70 931032-C3 $169.10 00000036
