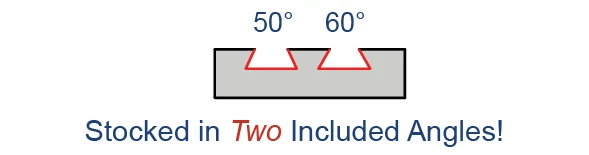

Designed for milling dovetail grooves for sight attachments, this fully stocked Harvey Tool product offering of Sight Groove Dovetail Cutters are CNC ground in the USA, feature a sharp corner profile, and are ready to ship in two included angles: 50° and 60°; and in two coating styles: uncoated or AlTiN coated.
INCLUDED ANGLE | CUTTER DIA.* | LENGTH OF CUT | NECK DIA. | FLUTES | SHANK DIA. | OAL | UNCOATED | AlTiN COATED | Add to Cart | ||
---|---|---|---|---|---|---|---|---|---|---|---|

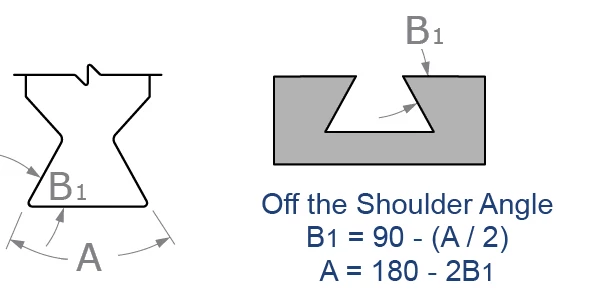

A +.5°-.5° |
D1 +.000"-.002" |
L2 | D2 | L1 | TOOL # | PRICE | TOOL # | PRICE | |||
50° | .330 | .093 | .242 | 3 | 3/8 | 2-1/2 | 806833 | $106.70 | 806833-C3 | $115.70 |
|
50° | .344 | .125 | .226 | 3 | 3/8 | 2-1/2 | 806834 | $106.70 | 806834-C3 | $115.70 |
|
50° | .495 | .250 | .261 | 3 | 1/2 | 3 | 806849 | $149.00 | 806849-C3 | $162.40 |
|
60° | .300 | .093 | .191 | 3 | 5/16 | 2-1/2 | 806730 | $95.10 | 806730-C3 | $103.00 |
|
60° | .359 | .125 | .213 | 3 | 3/8 | 2-1/2 | 806735 | $99.30 | 806735-C3 | $108.30 |
|
