Drill/End Mills - Drill Style - 2 Flute

Specialty Profiles
Specialty Profiles

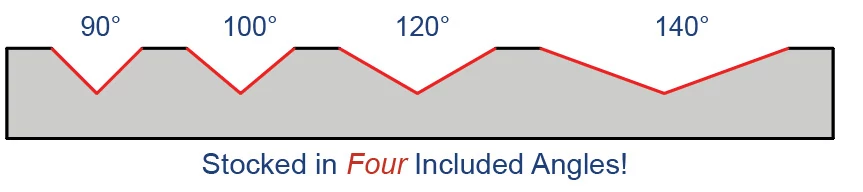

Recommended for O.D. milling, drilling, and spotting applications, this drill style, 2 flute Drill / End Mills is fully stocked in four included angles. Choose from uncoated and AlTiN coated styles that ship same day and can be in your machine as early as tomorrow morning.

  • Designed for Drilling and Milling Applications
  • 2 Flutes
  • Solid Carbide
  • CNC ground in the USA

Advanced Search

INCL. ANGLE CUTTER DIA. LENGTH OF CUT WEB THICKNESS SHANK DIA. OVERALL LENGTH UNCOATED AlTiN COATED TiB2 COATED Add to Cart Default Sort
A
+1°-1°
D1
+.000"-.002"
L2
+.030"-.000"
W D2 L1 2 FL PRICE 2 FL PRICE 2 FL PRICE
90° 1/32 3/32 .003 1/8 1-1/2 46502 $32.30 46502-C3 $36.90 00000001
90° 1 mm 1/8 .003 1/8 1-1/2 4651M $34.80 4651M-C3 $39.40 00000002
90° 3/64 9/64 .004 1/8 1-1/2 46503 $32.30 46503-C3 $36.90 46503-C8 $39.10 00000003
90° 1/16 3/16 .005 1/8 1-1/2 46504 $32.30 46504-C3 $36.90 00000004
90° 5/64 1/4 .005 1/8 1-1/2 46505 $32.30 46505-C3 $36.90 00000005
90° 3/32 3/8 .005 1/8 1-1/2 46506 $32.30 46506-C3 $36.90 00000006
90° 7/64 3/8 .005 1/8 1-1/2 46507 $32.30 46507-C3 $36.90 00000007
90° 3 mm 3/8 .005 1/8 1-1/2 4653M $34.80 4653M-C3 $39.40 00000008
90° 1/8 1/2 .005 1/8 1-1/2 46508 $32.30 46508-C3 $36.90 46508-C8 $39.10 00000009
90° 9/64 9/16 .006 3/16 2 46509 $32.70 46509-C3 $37.70 00000010
90° 5/32 9/16 .006 3/16 2 46510 $32.70 46510-C3 $37.70 00000011
90° 3/16 5/8 .006 3/16 2 46512 $32.70 46512-C3 $37.70 00000012
90° 7/32 3/4 .006 1/4 2-1/2 46514 $45.90 46514-C3 $52.70 00000013
90° 1/4 3/4 .006 1/4 2-1/2 46516 $45.90 46516-C3 $52.70 46516-C8 $53.20 00000014
90° 5/16 13/16 .007 5/16 2-1/2 46520 $47.80 46520-C3 $55.70 00000015
90° 3/8 7/8 .008 3/8 2-1/2 46524 $56.90 46524-C3 $65.90 00000016
90° 7/16 1 .008 7/16 2-3/4 46528 $87.10 46528-C3 $98.30 00000017
90° 1/2 1 .008 1/2 3 46532 $88.90 46532-C3 $102.30 00000018
90° 5/8 1-1/4 .010 5/8 3-1/2 46540 $134.80 46540-C3 $148.20 00000019
90° 3/4 1-1/2 .012 3/4 4 46548 $203.70 46548-C3 $218.20 00000020
90° 1 2 .015 1 4 46564 $301.50 46564-C3 $323.60 00000021
100° 1/8 1/2 .005 1/8 1-1/2 849108 $33.40 849108-C3 $38.00 00000022
100° 3/16 5/8 .006 3/16 2 849112 $34.60 849112-C3 $39.60 00000023
100° 1/4 3/4 .006 1/4 2-1/2 849116 $48.20 849116-C3 $55.00 00000024
100° 3/8 7/8 .008 3/8 2-1/2 849124 $60.20 849124-C3 $69.20 00000025
120° 1/32 3/32 .003 1/8 1-1/2 12902 $32.30 12902-C3 $36.90 00000026
120° 1 mm 1/8 .003 1/8 1-1/2 1291M $34.80 1291M-C3 $39.40 00000027
120° 3/64 9/64 .004 1/8 1-1/2 12903 $32.30 12903-C3 $36.90 00000028
120° 1/16 3/16 .005 1/8 1-1/2 12904 $31.10 12904-C3 $35.70 00000029
120° 5/64 1/4 .005 1/8 1-1/2 12905 $31.10 12905-C3 $35.70 00000030
120° 3/32 3/8 .005 1/8 1-1/2 12906 $31.10 12906-C3 $35.70 00000031
120° 3 mm 3/8 .005 1/8 1-1/2 1293M $34.80 1293M-C3 $39.40 00000032
120° 1/8 1/2 .005 1/8 1-1/2 12908 $31.10 12908-C3 $35.70 12908-C8 $37.90 00000033
120° 9/64 9/16 .006 3/16 2 12909 $32.70 12909-C3 $37.70 00000034
120° 5/32 9/16 .006 3/16 2 12910 $32.70 12910-C3 $37.70 00000035
120° 3/16 5/8 .006 3/16 2 12912 $31.40 12912-C3 $36.40 00000036
120° 7/32 3/4 .006 1/4 2-1/2 12914 $45.90 12914-C3 $52.70 00000037
120° 1/4 3/4 .006 1/4 2-1/2 12916 $44.10 12916-C3 $50.90 12916-C8 $51.40 00000038
120° 5/16 13/16 .007 5/16 2-1/2 12920 $46.00 12920-C3 $53.90 00000039
120° 3/8 7/8 .008 3/8 2-1/2 12924 $54.70 12924-C3 $63.70 12924-C8 $73.50 00000040
120° 7/16 1 .008 7/16 2-3/4 12928 $87.10 12928-C3 $98.30 00000041
120° 1/2 1 .008 1/2 3 12932 $85.40 12932-C3 $98.80 00000042
120° 5/8 1-1/4 .010 5/8 3-1/2 12940 $129.60 12940-C3 $143.00 00000043
120° 3/4 1-1/2 .012 3/4 4 12948 $195.90 12948-C3 $210.40 00000044
120° 1 2 .015 1 4 12964 $301.50 12964-C3 $323.60 00000045
140° 1/16 3/16 .005 1/8 1-1/2 950504 $33.40 950504-C3 $38.00 00000046
140° 5/64 1/4 .005 1/8 1-1/2 950505 $33.40 950505-C3 $38.00 00000047
140° 3/32 3/8 .005 1/8 1-1/2 950506 $33.40 950506-C3 $38.00 00000048
140° 1/8 1/2 .005 1/8 1-1/2 950508 $33.40 950508-C3 $38.00 00000049
140° 3/16 5/8 .006 3/16 2 950512 $34.60 950512-C3 $39.60 00000050
140° 1/4 3/4 .006 1/4 2-1/2 950516 $48.20 950516-C3 $55.00 00000051
140° 5/16 13/16 .007 5/16 2-1/2 950520 $50.30 950520-C3 $58.20 00000052
140° 3/8 7/8 .008 3/8 2-1/2 950524 $60.20 950524-C3 $69.20 00000053
140° 1/2 1 .008 1/2 3 950532 $94.00 950532-C3 $107.40 00000054
140° 5/8 1-1/4 .010 5/8 3-1/2 950540 $142.30 950540-C3 $155.70 00000055
140° 3/4 1-1/2 .012 3/4 4 950548 $215.20 950548-C3 $229.70 00000056
