Engraving Cutters - Marking Cutters

Specialty Profiles
Engraving Cutters - Marking Cutters

Specialty Profiles

This selection of Harvey Tool solid carbide Engraving Cutters - Marking Cutters is designed for milling legible part numbers in difficult-to-machine materials, and features a burr-free, two flute cutting design for improved strength over single point engravers.

  • Designed for milling legible part numbers in difficult-to-machine materials
  • Burr free 2 flute cutting design has improved strength over single point engravers

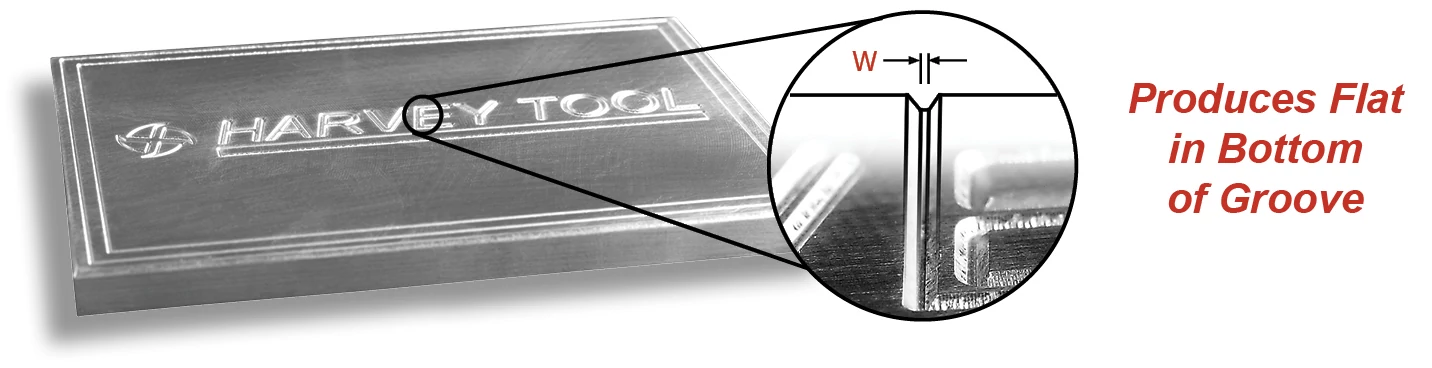

  • Produces flat in bottom of groove

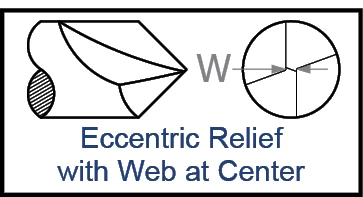

  • Eccentric relief improves durability over half round style engravers
  • Requires less RPM than half round engravers
  • Solid carbide
  • CNC ground in the USA

Advanced Search

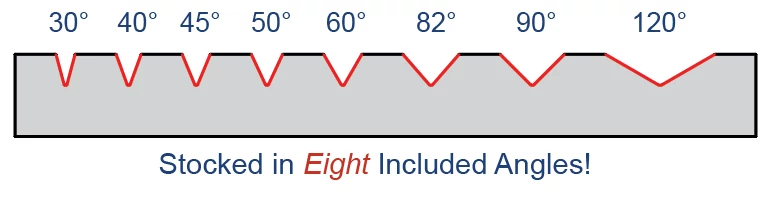

INCL. ANGLE DIA. WEB THICKNESS LOC OAL . UNCOATED AlTiN COATED AMORPHOUS DIAMOND COATED Add to Cart Default Sort
A
+1°-1°
 D2 W L2 L1 . 2FL PRICE 2FL PRICE 2 FL PRICE
30° 1/8 .003 .228 1-1/2 923908 $18.00 923908-C3 $22.60 00000001
30° 1/8 .005 .224 1-1/2 47708 $18.00 47708-C3 $22.60 47708-C4 $29.70 00000002
30° 1/8 .010 .215 1-1/2 996108 $18.00 996108-C3 $22.60 00000003
30° 1/8 .015 .205 1-1/2 954008 $18.00 954008-C3 $22.60 00000004
30° 3/16 .003 .344 2 923912 $22.40 923912-C3 $27.40 00000005
30° 3/16 .005 .341 2 47712 $22.40 47712-C3 $27.40 00000006
30° 3/16 .010 .331 2 996112 $22.40 996112-C3 $27.40 00000007
30° 1/4 .003 .461 2-1/2 923916 $31.40 923916-C3 $38.20 00000008
30° 1/4 .005 .457 2-1/2 47716 $31.40 47716-C3 $38.20 00000009
30° 1/4 .010 .448 2-1/2 996116 $31.40 996116-C3 $38.20 00000010
40° 1/8 .005 .165 1-1/2 995508 $19.30 995508-C3 $23.90 995508-C4 $31.00 00000011
40° 1/8 .010 .158 1-1/2 996708 $19.30 996708-C3 $23.90 00000012
40° 3/16 .005 .251 2 995512 $24.40 995512-C3 $29.40 00000013
40° 3/16 .010 .244 2 996712 $24.40 996712-C3 $29.40 00000014
40° 1/4 .005 .337 2-1/2 995516 $34.10 995516-C3 $40.90 00000015
40° 1/4 .010 .330 2-1/2 996716 $34.10 996716-C3 $40.90 00000016
45° 1/8 .005 .145 1-1/2 987408 $19.00 987408-C3 $23.60 00000017
45° 3/16 .005 .220 2 987412 $24.40 987412-C3 $29.40 00000018
45° 1/4 .005 .296 2-1/2 987416 $34.10 987416-C3 $40.90 00000019
50° 1/8 .005 .129 1-1/2 976608 $19.30 976608-C3 $23.90 00000020
50° 3/16 .005 .196 2 976612 $24.20 976612-C3 $29.20 00000021
50° 1/4 .005 .263 2-1/2 976616 $34.00 976616-C3 $40.80 00000022
60° 1/8 .003 .106 1-1/2 905708 $18.00 905708-C3 $22.60 00000023
60° 1/8 .005 .104 1-1/2 29608 $18.00 29608-C3 $22.60 29608-C4 $29.70 00000024
60° 1/8 .005 .104 3 LONG! 957808 $22.00 957808-C3 $26.60 00000025
60° 1/8 .010 .100 1-1/2 48308 $18.00 48308-C3 $22.60 48308-C4 $29.70 00000026
60° 1/8 .015 .095 1-1/2 948108 $18.00 948108-C3 $22.60 00000027
60° 3/16 .003 .160 2 905712 $22.40 905712-C3 $27.40 00000028
60° 3/16 .005 .158 2 29612 $22.40 29612-C3 $27.40 29612-C4 $38.50 00000029
60° 3/16 .010 .154 2 48312 $22.40 48312-C3 $27.40 00000030
60° 3/16 .015 .149 2 948112 $22.40 948112-C3 $27.40 00000031
60° 1/4 .003 .214 2-1/2 905716 $31.40 905716-C3 $38.20 00000032
60° 1/4 .005 .212 2-1/2 29616 $31.40 29616-C3 $38.20 29616-C4 $49.70 00000033
60° 1/4 .010 .208 2-1/2 48316 $31.40 48316-C3 $38.20 00000034
60° 1/4 .015 .204 2-1/2 948116 $31.40 948116-C3 $38.20 00000035
60° 3/8 .005 .320 2-1/2 29624 $39.80 29624-C3 $48.80 00000036
82° 1/8 .005 .069 1-1/2 974108 $19.30 974108-C3 $23.90 00000037
90° 1/8 .003 .061 1-1/2 914608 $18.00 914608-C3 $22.60 00000038
90° 1/8 .005 .060 1-1/2 23608 $18.00 23608-C3 $22.60 23608-C4 $29.70 00000039
90° 1/8 .005 .060 3 LONG! 968108 $22.00 968108-C3 $26.60 00000040
90° 1/8 .010 .058 1-1/2 50408 $18.00 50408-C3 $22.60 50408-C4 $29.70 00000041
90° 1/8 .015 .055 1-1/2 939708 $18.00 939708-C3 $22.60 00000042
90° 3/16 .003 .092 2 914612 $22.40 914612-C3 $27.40 00000043
90° 3/16 .005 .091 2 23612 $22.40 23612-C3 $27.40 23612-C4 $38.50 00000044
90° 3/16 .010 .089 2 50412 $22.40 50412-C3 $27.40 00000045
90° 3/16 .015 .086 2 939712 $22.40 939712-C3 $27.40 00000046
90° 1/4 .003 .124 2-1/2 914616 $31.40 914616-C3 $38.20 00000047
90° 1/4 .005 .123 2-1/2 23616 $31.40 23616-C3 $38.20 23616-C4 $49.70 00000048
90° 1/4 .010 .120 2-1/2 50416 $31.40 50416-C3 $38.20 00000049
90° 1/4 .015 .118 2-1/2 939716 $31.40 939716-C3 $38.20 00000050
90° 3/8 .005 .185 2-1/2 23600 $39.80 23600-C3 $48.80 00000051
120° 1/8 .003 .035 1-1/2 844808 $18.00 844808-C3 $22.60 00000052
120° 1/8 .005 .035 1-1/2 23708 $18.00 23708-C3 $22.60 23708-C4 $29.70 00000053
120° 1/8 .010 .033 1-1/2 998808 $18.00 998808-C3 $22.60 00000054
120° 3/16 .005 .053 2 23712 $22.40 23712-C3 $27.40 00000055
120° 3/16 .010 .051 2 998812 $22.40 998812-C3 $27.40 00000056
120° 1/4 .005 .071 2-1/2 23716 $31.40 23716-C3 $38.20 00000057
120° 1/4 .010 .069 2-1/2 998816 $31.40 998816-C3 $38.20 00000058
