Keyseat Cutters - Square - Reduced Shank

Specialty Profiles

Both sides of this Keyseat Cutter offering, which feature tools with a solid carbide head brazed onto a steel shank, are dished for clearance. Each tool in this offering features a Weldon flat for added tool holding security during slotting operations.

  • Solid Carbide Head Brazed onto a Steel Shank
  • Both Sides of Cutter are Dished for Clearance
  • Weldon Flat (not available on 1/4" shank)
  • CNC ground in the USA

Advanced Search

*No Weldon Flat

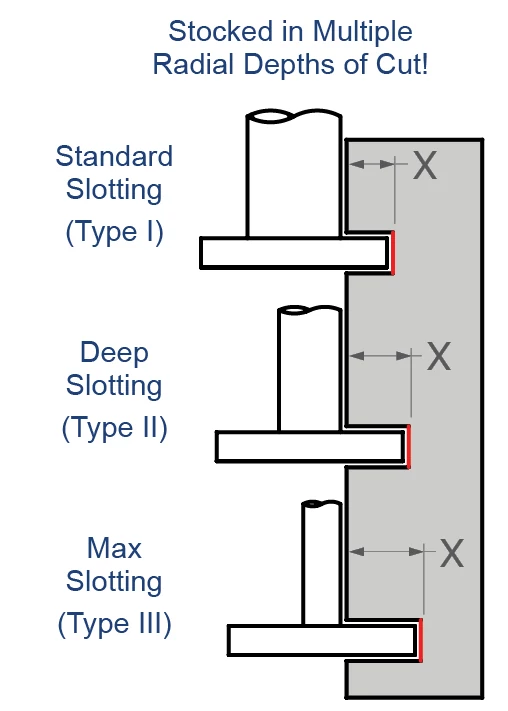

**Radial DOC Accounts for max transition radius at neck
CUTTER DIA. CUTTER WIDTH Radial DOC* TYPE FLUTES SHANK DIA. OAL UNCOATED AlTiN COATED Add to Cart Default Sort
D1
+.000"-.002"
L2
+.001"-.001"
X      D2 L1 TOOL # PRICE TOOL # PRICE
1/2 .031 (1/32) .115 I 8 1/4* 3-1/32 849305 $84.80 849305-C3 $98.20 00000001
1/2 .062 (1/16) .115 I 8 1/4* 3-1/16 849320 $84.80 849320-C3 $98.20 00000002
1/2 .093 (3/32) .115 I 8 1/4* 3-3/32 849340 $84.80 849340-C3 $98.20 00000003
1/2 .125 (1/8) .115 I 8 1/4* 3-1/8 849350 $84.80 849350-C3 $98.20 00000004
1/2 .187 (3/16) .115 I 8 1/4* 3-3/16 849360 $84.80 849360-C3 $98.20 00000005
1/2 .250 (1/4) .115 I 8 1/4* 3-1/4 849370 $84.80 849370-C3 $98.20 00000006
3/4 .031 (1/32) .240 III 10 1/4* 3-1/32 899805 $111.30 899805-C3 $125.80 00000007
3/4 .031 (1/32) .177 II 10 3/8 3-1/32 984505 $105.20 984505-C3 $119.70 00000008
3/4 .031 (1/32) .115 I 10 1/2 3-1/32 52005 $102.00 52005-C3 $116.50 00000009
3/4 .040 .177 II 10 3/8 3.040 984508 $105.20 984508-C3 $119.70 00000010
3/4 .040 .115 I 10 1/2 3.040 52008 $102.00 52008-C3 $116.50 00000011
3/4 .047 (3/64) .240 III 10 1/4* 3-3/64 899810 $111.30 899810-C3 $125.80 00000012
3/4 .047 (3/64) .177 II 10 3/8 3-3/64 984510 $105.20 984510-C3 $119.70 00000013
3/4 .047 (3/64) .115 I 10 1/2 3-3/64 52010 $102.00 52010-C3 $116.50 00000014
3/4 .050 .115 I 10 1/2 3.050 52011 $102.00 52011-C3 $116.50 00000015
3/4 .060 .115 I 10 1/2 3.060 52019 $102.00 52019-C3 $116.50 00000016
3/4 .062 (1/16) .240 III 10 1/4* 3-1/16 899820 $111.30 899820-C3 $125.80 00000017
3/4 .062 (1/16) .177 II 10 3/8 3-1/16 984520 $105.20 984520-C3 $119.70 00000018
3/4 .062 (1/16) .115 I 10 1/2 3-1/16 52020 $102.00 52020-C3 $116.50 00000019
3/4 .078 (5/64) .177 II 10 3/8 3-5/64 984530 $105.20 984530-C3 $119.70 00000020
3/4 .078 (5/64) .115 I 10 1/2 3-5/64 52030 $102.00 52030-C3 $116.50 00000021
3/4 .093 (3/32) .240 III 10 1/4* 3-3/32 899840 $111.30 899840-C3 $125.80 00000022
3/4 .093 (3/32) .177 II 10 3/8 3-3/32 984540 $105.20 984540-C3 $119.70 00000023
3/4 .093 (3/32) .115 I 10 1/2 3-3/32 52040 $102.00 52040-C3 $116.50 00000024
3/4 .100 .115 I 10 1/2 3.100 52045 $102.00 52045-C3 $116.50 00000025
3/4 .118 (3 mm) .115 I 10 1/2 3.118 52048 $102.00 52048-C3 $116.50 00000026
3/4 .125 (1/8) .177 II 10 3/8 3-1/8 984550 $105.20 984550-C3 $119.70 00000027
3/4 .125 (1/8) .115 I 10 1/2 3-1/8 52050 $102.00 52050-C3 $116.50 00000028
3/4 .156 (5/32) .177 II 10 3/8 3-5/32 984555 $105.20 984555-C3 $119.70 00000029
3/4 .156 (5/32) .115 I 10 1/2 3-5/32 52055 $102.00 52055-C3 $116.50 00000030
3/4 .187 (3/16) .177 II 10 3/8 3-3/16 984560 $105.20 984560-C3 $119.70 00000031
3/4 .187 (3/16) .115 I 10 1/2 3-3/16 52060 $102.00 52060-C3 $116.50 00000032
3/4 .236 (6 mm) .115 I 10 1/2 3.236 52066 $110.70 52066-C3 $125.20 00000033
3/4 .250 (1/4) .177 II 10 3/8 3-1/4 984570 $118.00 984570-C3 $132.50 00000034
3/4 .250 (1/4) .115 I 10 1/2 3-1/4 52070 $115.10 52070-C3 $129.60 00000035
3/4 .312 (5/16) .115 I 10 1/2 3-5/16 52080 $135.70 52080-C3 $157.80 00000036
3/4 .375 (3/8) .115 I 10 1/2 3-3/8 52090 $141.40 52090-C3 $163.50 00000037
7/8 .062 (1/16) .177 I 12 1/2 3-1/16 961020 $109.10 961020-C3 $123.60 00000038
7/8 .093 (3/32) .177 I 12 1/2 3-3/32 961040 $109.10 961040-C3 $123.60 00000039
7/8 .125 (1/8) .240 II 12 3/8 3-1/8 890650 $111.80 890650-C3 $126.30 00000040
7/8 .125 (1/8) .177 I 12 1/2 3-1/8 961050 $109.10 961050-C3 $123.60 00000041
7/8 .187 (3/16) .240 II 12 3/8 3-3/16 890660 $111.80 890660-C3 $126.30 00000042
7/8 .187 (3/16) .177 I 12 1/2 3-3/16 961060 $109.10 961060-C3 $123.60 00000043
7/8 .250 (1/4) .240 II 12 3/8 3-1/4 890670 $124.30 890670-C3 $138.80 00000044
7/8 .250 (1/4) .177 I 12 1/2 3-1/4 961070 $121.40 961070-C3 $135.90 00000045
7/8 .312 (5/16) .177 I 12 1/2 3-5/16 961080 $135.70 961080-C3 $157.80 00000046
7/8 .375 (3/8) .177 I 12 1/2 3-3/8 961090 $141.40 961090-C3 $163.50 00000047
1 .031 (1/32) .365 III 12 1/4* 3-1/32 914905 $129.70 914905-C3 $151.80 00000048
1 .031 (1/32) .302 II 12 3/8 3-1/32 982005 $117.60 982005-C3 $139.70 00000049
1 .031 (1/32) .240 I 12 1/2 3-1/32 55905 $114.70 55905-C3 $136.80 00000050
1 .040 .240 I 12 1/2 3.040 55908 $114.70 55908-C3 $136.80 00000051
1 .047 (3/64) .365 III 12 1/4* 3-3/64 914910 $129.70 914910-C3 $151.80 00000052
1 .047 (3/64) .302 II 12 3/8 3-3/64 982010 $117.60 982010-C3 $139.70 00000053
1 .047 (3/64) .240 I 12 1/2 3-3/64 55910 $114.70 55910-C3 $136.80 00000054
1 .062 (1/16) .365 III 12 1/4* 3-1/16 914920 $129.70 914920-C3 $151.80 00000055
1 .062 (1/16) .302 II 12 3/8 3-1/16 982020 $117.60 982020-C3 $139.70 00000056
1 .062 (1/16) .240 I 12 1/2 3-1/16 55920 $114.70 55920-C3 $136.80 00000057
1 .078 (5/64) .365 III 12 1/4* 3-5/64 914930 $129.70 914930-C3 $151.80 00000058
1 .078 (5/64) .302 II 12 3/8 3-5/64 982030 $117.60 982030-C3 $139.70 00000059
1 .078 (5/64) .240 I 12 1/2 3-5/64 55930 $114.70 55930-C3 $136.80 00000060
1 .093 (3/32) .365 III 12 1/4* 3-3/32 914940 $129.70 914940-C3 $151.80 00000061
1 .093 (3/32) .302 II 12 3/8 3-3/32 982040 $117.60 982040-C3 $139.70 00000062
1 .093 (3/32) .240 I 12 1/2 3-3/32 55940 $114.70 55940-C3 $136.80 00000063
1 .125 (1/8) .365 III 12 1/4* 3-1/8 914950 $129.70 914950-C3 $151.80 00000064
1 .125 (1/8) .302 II 12 3/8 3-1/8 982050 $117.60 982050-C3 $139.70 00000065
1 .125 (1/8) .240 I 12 1/2 3-1/8 55950 $114.70 55950-C3 $136.80 00000066
1 .156 (5/32) .302 II 12 3/8 3-5/32 982055 $117.60 982055-C3 $139.70 00000067
1 .156 (5/32) .240 I 12 1/2 3-5/32 55955 $114.70 55955-C3 $136.80 00000068
1 .187 (3/16) .302 II 12 3/8 3-3/16 982060 $117.60 982060-C3 $139.70 00000069
1 .187 (3/16) .240 I 12 1/2 3-3/16 55960 $114.70 55960-C3 $136.80 00000070
1 .250 (1/4) .302 II 12 3/8 3-1/4 982070 $130.40 982070-C3 $152.50 00000071
1 .250 (1/4) .240 I 12 1/2 3-1/4 55970 $127.30 55970-C3 $149.40 00000072
1 .312 (5/16) .302 II 12 3/8 3-5/16 982080 $139.10 982080-C3 $161.20 00000073
1 .312 (5/16) .240 I 12 1/2 3-5/16 55980 $135.70 55980-C3 $157.80 00000074
1 .375 (3/8) .302 II 12 3/8 3-3/8 982090 $131.70 982090-C3 $152.50 00000075
1 .375 (3/8) .240 I 12 1/2 3-3/8 55990 $141.40 55990-C3 $163.50 00000076
1 .500 (1/2) .240 I 12 1/2 3-1/2 55995 $147.10 55995-C3 $169.20 00000077
1-1/4 .093 (3/32) .240 I 14 3/4 3-11/32 973940 $142.50 973940-C3 $164.60 00000078
1-1/4 .125 (1/8) .365 II 14 1/2 3-1/8 879950 $146.00 879950-C3 $169.70 00000079
1-1/4 .125 (1/8) .240 I 14 3/4 3-3/8 973950 $142.50 973950-C3 $164.60 00000080
1-1/4 .250 (1/4) .365 II 14 1/2 3-1/4 879970 $147.40 879970-C3 $169.70 00000081
1-1/4 .250 (1/4) .240 I 14 3/4 3-1/2 973970 $158.50 973970-C3 $173.00 00000082
1-1/4 .375 (3/8) .240 I 14 3/4 3-5/8 973990 $170.90 973990-C3 $198.50 00000083
1-1/4 .500 (1/2) .240 I 14 3/4 3-3/4 973995 $170.90 973995-C3 $198.50 00000084
1-1/2 .062 (1/16) .490 II 16 1/2 3-1/16 887020 $155.40 887020-C3 $183.00 00000085
1-1/2 .062 (1/16) .365 I 16 3/4 3-5/16 962020 $151.80 962020-C3 $179.40 00000086
1-1/2 .093 (3/32) .365 I 16 3/4 3-11/32 962040 $151.80 962040-C3 $179.40 00000087
1-1/2 .125 (1/8) .552 III 16 3/8 3-1/8 868750 $160.00 868750-C3 $187.60 00000088
1-1/2 .125 (1/8) .490 II 16 1/2 3-1/8 887050 $155.40 887050-C3 $183.00 00000089
1-1/2 .125 (1/8) .365 I 16 3/4 3-3/8 962050 $151.80 962050-C3 $179.40 00000090
1-1/2 .187 (3/16) .552 III 16 3/8 3-3/16 868760 $160.00 868760-C3 $187.60 00000091
1-1/2 .187 (3/16) .490 II 16 1/2 3-3/16 887060 $155.40 887060-C3 $183.00 00000092
1-1/2 .187 (3/16) .365 I 16 3/4 3-7/16 962060 $151.80 962060-C3 $179.40 00000093
1-1/2 .250 (1/4) .490 II 16 1/2 3-1/4 887070 $167.20 887070-C3 $194.80 00000094
1-1/2 .250 (1/4) .365 I 16 3/4 3-1/2 962070 $163.20 962070-C3 $190.80 00000095
1-1/2 .312 (5/16) .365 I 16 3/4 3-9/16 962080 $184.10 962080-C3 $211.70 00000096
1-1/2 .375 (3/8) .365 I 16 3/4 3-5/8 962090 $210.70 962090-C3 $238.30 00000097
1-1/2 .437 (7/16) .365 I 16 3/4 3-11/16 962093 $228.00 962093-C3 $255.60 00000098
1-1/2 .500 (1/2) .365 I 16 3/4 3-3/4 962095 $245.00 962095-C3 $272.60 00000099
