Miniature Drills - Spotting Drills

Holemaking & Threading
Miniature Drills - Spotting Drills

Holemaking & Threading

Harvey Tool's comprehensive selection of Spotting Drills are ready to ship the same day of purchase, and are offered in included angles ranging from 60° to 170°, in both uncoated and AlTiN Coated styles. Explore this tool's two distinct styles: on center and ahead of center designs.

  • 90° available in long length!
  • Thinned Web to Reduce Walking
  • Self-Centering Point Geometry
  • 2 Flutes
  • Solid Carbide
  • CNC ground in the USA

Advanced Search

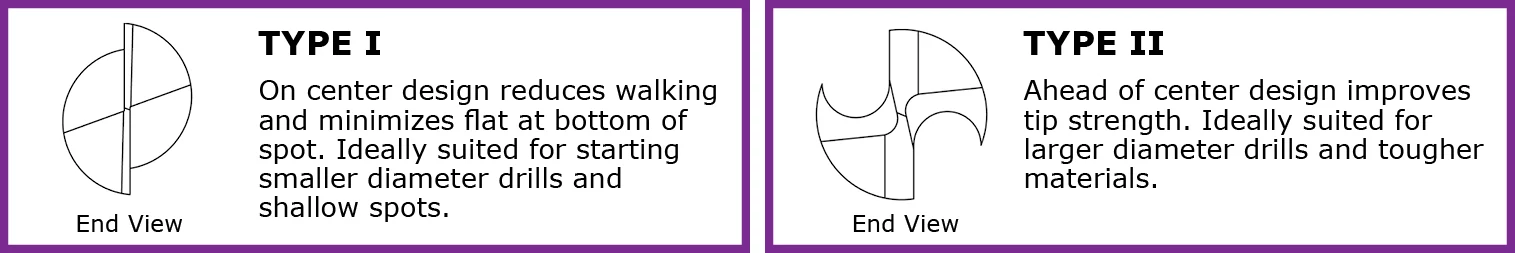

INCL. ANGLE DRILL DIA. FLUTE LENGTH WEB THICKNESS TYPE SHANK DIA. OAL . UNCOATED AlTiN COATED Add to Cart Default Sort
A
+1°-1°
 D1 L2   # . D2 L1    2 FL PRICE 2 FL PRICE
60° .020 .060 (3x) .0020 I 1/8 1-1/2 932720 $29.20 932720-C3 $33.80 00000001
60° .030 .090 (3x) .0030 I 1/8 1-1/2 932730 $28.60 932730-C3 $33.20 00000002
60° .031 (1/32) .093 (3x) .0030 I 1/8 1-1/2 932731 $28.60 932731-C3 $33.20 00000003
60° .045 .135 (3x) .0030 I 1/8 1-1/2 932745 $24.80 932745-C3 $29.40 00000004
60° .060 .180 (3x) .0050 I 1/8 1-1/2 932760 $28.60 932760-C3 $33.20 00000005
60° .062 (1/16) .186 (3x) .0050 I 1/8 1-1/2 932762 $28.60 932762-C3 $33.20 00000006
60° .090 .270 (3x) .0050 I 1/8 1-1/2 932790 $28.60 932790-C3 $33.20 00000007
60° .093 (3/32) .279 (3x) .0060 I 1/8 1-1/2 932793 $28.60 932793-C3 $33.20 00000008
60° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 932808 $28.60 932808-C3 $33.20 00000009
60° .125 (1/8) .375 (3x) .0100 II 1/8 1-1/2 932811 $28.60 932811-C3 $33.20 00000010
60° .187 (3/16) .625 (3x) .0130 II 3/16 2 932812 $25.70 932812-C3 $30.70 00000011
60° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 932816 $31.00 932816-C3 $37.80 00000012
82° .010 .030 (3x) .0015 I 1/8 1-1/2 983110 $34.20 983110-C3 $38.80 00000013
82° .020 .060 (3x) .0020 I 1/8 1-1/2 983120 $29.20 983120-C3 $33.80 00000014
82° .030 .090 (3x) .0030 I 1/8 1-1/2 983130 $27.60 983130-C3 $32.20 00000015
82° .045 .135 (3x) .0030 I 1/8 1-1/2 983145 $24.80 983145-C3 $29.40 00000016
82° .060 .180 (3x) .0050 I 1/8 1-1/2 983160 $24.50 983160-C3 $29.10 00000017
82° .090 .270 (3x) .0050 I 1/8 1-1/2 983190 $23.40 983190-C3 $28.00 00000018
82° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 983208 $22.20 983208-C3 $26.80 00000019
82° .125 (1/8) .375 (3x) .0100 II 1/8 1-1/2 965208 $22.20 965208-C3 $26.80 00000020
82° .187 (3/16) .625 (3x) .0130 II 3/16 2 965212 $25.70 965212-C3 $30.70 00000021
82° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 965216 $31.90 965216-C3 $38.70 00000022
90° .008 .024 (3x) .0015 I 1/8 1-1/2 11408 $41.60 11408-C3 $46.20 00000023
90° .010 .030 (3x) .0015 I 1/8 1-1/2 11410 $33.10 11410-C3 $37.70 00000024
90° .010 .030 (3x) .0015 I 1/8 3 LONG! 987910 $39.70 987910-C3 $44.30 00000025
90° .012 .036 (3x) .0015 I 1/8 1-1/2 11412 $41.60 11412-C3 $46.20 00000026
90° .015 (1/64) .045 (3x) .0015 I 1/8 1-1/2 11415 $33.10 11415-C3 $37.70 00000027
90° .020 .030 (1.5x) .0020 I 1/8 1-1/2 816020 $28.60 816020-C3 $33.20 00000028
90° .020 .060 (3x) .0020 I 1/8 1-1/2 11420 $28.60 11420-C3 $33.20 00000029
90° .020 .060 (3x) .0020 I 1/8 3 LONG! 987920 $35.20 987920-C3 $39.80 00000030
90° .025 .075 (3x) .0020 I 1/8 1-1/2 11425 $28.60 11425-C3 $33.20 00000031
90° .030 .045 (1.5x) .0030 I 1/8 1-1/2 816030 $26.40 816030-C3 $33.20 00000032
90° .030 .090 (3x) .0030 I 1/8 1-1/2 11430 $26.40 11430-C3 $31.00 00000033
90° .030 .090 (3x) .0030 I 1/8 3 LONG! 987930 $33.40 987930-C3 $38.00 00000034
90° .031 (1/32) .093 (3x) .0030 I 1/8 1-1/2 11431 $26.40 11431-C3 $31.00 00000035
90° .035 .105 (3x) .0030 I 1/8 1-1/2 11435 $26.40 11435-C3 $31.00 00000036
90° .039 (1 mm) .117 (3x) .0030 I 1/8 1-1/2 11439 $26.40 11439-C3 $31.00 00000037
90° .040 .120 (3x) .0030 I 1/8 1-1/2 11440 $24.20 11440-C3 $28.80 00000038
90° .045 .068 (1.5x) .0030 I 1/8 1-1/2 816045 $24.20 816045-C3 $28.80 00000039
90° .045 .135 (3x) .0030 I 1/8 1-1/2 11445 $24.20 11445-C3 $28.80 00000040
90° .045 .135 (3x) .0030 I 1/8 3 LONG! 987945 $31.00 987945-C3 $35.60 00000041
90° .047 (3/64) .141 (3x) .0040 I 1/8 1-1/2 11447 $24.20 11447-C3 $28.80 00000042
90° .050 .150 (3x) .0040 I 1/8 1-1/2 11450 $24.20 11450-C3 $28.80 00000043
90° .055 .165 (3x) .0040 I 1/8 1-1/2 11455 $24.20 11455-C3 $28.80 00000044
90° .060 .090 (1.5x) .0050 I 1/8 1-1/2 816060 $23.90 816060-C3 $28.90 00000045
90° .060 .180 (3x) .0050 I 1/8 1-1/2 11460 $23.90 11460-C3 $28.50 00000046
90° .060 .180 (3x) .0050 I 1/8 3 LONG! 987960 $30.60 987960-C3 $35.20 00000047
90° .062 (1/16) .093 (1.5x) .0050 I 1/8 1-1/2 816062 $23.90 816062-C3 $28.50 00000048
90° .062 (1/16) .186 (3x) .0050 I 1/8 1-1/2 11462 $23.90 11462-C3 $28.50 00000049
90° .070 .210 (3x) .0050 I 1/8 1-1/2 11470 $23.90 11470-C3 $28.50 00000050
90° .075 .225 (3x) .0050 I 1/8 1-1/2 11475 $23.90 11475-C3 $28.50 00000051
90° .078 (5/64) .234 (3x) .0050 I 1/8 1-1/2 11478 $23.90 11478-C3 $28.50 00000052
90° .080 .240 (3x) .0050 I 1/8 1-1/2 11480 $23.90 11480-C3 $28.50 00000053
90° .090 .135 (1.5x) .0050 I 1/8 1-1/2 816090 $22.50 816090-C3 $27.50 00000054
90° .090 .270 (3x) .0050 I 1/8 1-1/2 11490 $22.50 11490-C3 $27.10 00000055
90° .090 .270 (3x) .0050 I 1/8 3 LONG! 987990 $29.40 987990-C3 $34.00 00000056
90° .093 (3/32) .279 (3x) .0060 I 1/8 1-1/2 11493 $22.50 11493-C3 $27.10 00000057
90° .100 .300 (3x) .0060 I 1/8 1-1/2 11500 $22.50 11500-C3 $27.10 00000058
90° .109 (7/64) .327 (3x) .0080 I 1/8 1-1/2 11509 $22.50 11509-C3 $27.10 00000059
90° .118 (3 mm) .354 (3x) .0080 I 1/8 1-1/2 1153M $22.50 1153M-C3 $27.10 00000060
90° .125 (1/8) .188 (1.5x) .0100 I 1/8 1-1/2 816108 $21.00 816108-C3 $26.00 00000061
90° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 11525 $21.00 11525-C3 $25.60 00000062
90° .125 (1/8) .375 (3x) .0100 I 1/8 3 LONG! 988008 $28.60 988008-C3 $33.20 00000063
90° .125 (1/8) .188 (1.5x) .0100 II 1/8 1-1/2 787708 $21.00 787708-C3 $25.60 00000064
90° .125 (1/8) .375 (3x) .0100 II 1/8 1-1/2 37508 $21.00 37508-C3 $25.60 00000065
90° .125 (1/8) .375 (3x) .0100 II 1/8 4 LONG! 55808 $30.40 55808-C3 $35.40 00000066
90° .140 (9/64) .375 (2.5x) .0100 II 3/16 2 37509 $30.00 37509-C3 $35.00 00000067
90° .156 (5/32) .375 (2.5x) .0110 II 3/16 2 37510 $25.00 37510-C3 $30.00 00000068
90° .187 (3/16) .625 (3.5x) .0130 I 3/16 2 803912 $24.20 803912-C3 $29.20 00000069
90° .187 (3/16) .312 (1.5x) .0130 II 3/16 2 787712 $24.20 787712-C3 $29.20 00000070
90° .187 (3/16) .625 (3.5x) .0130 II 3/16 2 37512 $24.20 37512-C3 $29.20 00000071
90° .187 (3/16) .625 (3.5x) .0130 II 3/16 4 LONG! 55812 $37.30 55812-C3 $44.10 00000072
90° .218 (7/32) .750 (3.5x) .0150 II 1/4 2-1/2 37514 $38.40 37514-C3 $45.20 00000073
90° .236 (6 mm) .750 (3x) .0160 II 1/4 2-1/2 37515 $38.40 37515-C3 $45.20 00000074
90° .250 (1/4) .750 (3x) .0180 I 1/4 2-1/2 803916 $30.10 803916-C3 $36.90 00000075
90° .250 (1/4) .375 (1.5x) .0180 II 1/4 2-1/2 787716 $30.10 787716-C3 $36.90 00000076
90° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 37516 $30.10 37516-C3 $36.90 00000077
90° .250 (1/4) .750 (3x) .0180 II 1/4 6 LONG! 55816 $50.50 55816-C3 $59.50 00000078
90° .312 (5/16) .750 (2.5x) .0220 II 5/16 2-1/2 37520 $51.60 37520-C3 $59.50 00000079
90° .375 (3/8) .500 (1.5x) .0270 II 3/8 2-1/2 787724 $54.70 787724-C3 $63.70 00000080
90° .375 (3/8) 1.000 (2.5x) .0270 II 3/8 2-1/2 37524 $54.70 37524-C3 $63.70 00000081
90° .500 (1/2) 1.000 (2x) .0350 II 1/2 3 37532 $94.50 37532-C3 $107.90 00000082
100° .030 .090 (3x) .0030 I 1/8 1-1/2 975830 $27.60 975830-C3 $32.20 00000083
100° .060 .180 (3x) .0050 I 1/8 1-1/2 975860 $24.50 975860-C3 $29.10 00000084
100° .090 .270 (3x) .0050 I 1/8 1-1/2 975890 $24.80 975890-C3 $29.40 00000085
100° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 975908 $22.20 975908-C3 $26.80 00000086
100° .125 (1/8) .375 (3x) .0100 II 1/8 1-1/2 955908 $22.20 955908-C3 $26.80 00000087
100° .187 (3/16) .625 (3x) .0130 II 3/16 2 955912 $25.70 955912-C3 $30.70 00000088
100° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 955916 $31.90 955916-C3 $38.70 00000089
120° .010 .030 (3x) .0015 I 1/8 1-1/2 11610 $33.10 11610-C3 $37.70 00000090
120° .015 (1/64) .045 (3x) .0015 I 1/8 1-1/2 11615 $33.10 11615-C3 $37.70 00000091
120° .020 .060 (3x) .0020 I 1/8 1-1/2 11620 $28.60 11620-C3 $33.20 00000092
120° .025 .075 (3x) .0020 I 1/8 1-1/2 11625 $28.60 11625-C3 $33.20 00000093
120° .030 .090 (3x) .0030 I 1/8 1-1/2 11630 $26.40 11630-C3 $31.00 00000094
120° .031 (1/32) .093 (3x) .0030 I 1/8 1-1/2 11631 $26.40 11631-C3 $31.00 00000095
120° .040 .120 (3x) .0030 I 1/8 1-1/2 11640 $24.20 11640-C3 $28.80 00000096
120° .045 .135 (3x) .0030 I 1/8 1-1/2 11645 $24.20 11645-C3 $28.80 00000097
120° .047 (3/64) .141 (3x) .0040 I 1/8 1-1/2 11647 $24.20 11647-C3 $28.80 00000098
120° .050 .150 (3x) .0040 I 1/8 1-1/2 11650 $24.20 11650-C3 $28.80 00000099
120° .055 .165 (3x) .0040 I 1/8 1-1/2 11655 $24.20 11655-C3 $28.80 00000100
120° .060 .180 (3x) .0050 I 1/8 1-1/2 11660 $23.90 11660-C3 $28.50 00000101
120° .062 (1/16) .186 (3x) .0050 I 1/8 1-1/2 11662 $23.90 11662-C3 $28.50 00000102
120° .070 .210 (3x) .0050 I 1/8 1-1/2 11670 $23.90 11670-C3 $28.50 00000103
120° .078 (5/64) .234 (3x) .0050 I 1/8 1-1/2 11678 $23.90 11678-C3 $28.50 00000104
120° .090 .270 (3x) .0050 I 1/8 1-1/2 11690 $22.50 11690-C3 $27.10 00000105
120° .093 (3/32) .279 (3x) .0060 I 1/8 1-1/2 11693 $22.50 11693-C3 $27.10 00000106
120° .100 .300 (3x) .0060 I 1/8 1-1/2 11700 $22.50 11700-C3 $27.10 00000107
120° .118 (3 mm) .354 (3x) .0080 I 1/8 1-1/2 1173M $22.50 1173M-C3 $27.10 00000108
120° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 11725 $21.00 11725-C3 $25.60 00000109
120° .125 (1/8) .375 (3x) .0100 II 1/8 1-1/2 38208 $21.00 38208-C3 $25.60 00000110
120° .156 (5/32) .375 (2.5x) .0110 II 3/16 2 38210 $46.80 38210-C3 $51.80 00000111
120° .187 (3/16) .625 (3.5x) .0130 I 3/16 2 804012 $24.20 804012-C3 $29.20 00000112
120° .187 (3/16) .625 (3.5x) .0130 II 3/16 2 38212 $24.20 38212-C3 $29.20 00000113
120° .250 (1/4) .750 (3x) .0180 I 1/4 2-1/2 804016 $30.10 804016-C3 $36.90 00000114
120° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 38216 $30.10 38216-C3 $36.90 00000115
120° .375 (3/8) 1.000 (2.5x) .0270 II 3/8 2-1/2 38224 $54.70 38224-C3 $63.70 00000116
130° .030 .090 (3x) .0030 I 1/8 1-1/2 839530 $30.40 839530-C3 $34.90 00000117
130° .060 .180 (3x) .0050 I 1/8 1-1/2 839560 $30.40 839560-C3 $34.90 00000118
130° .090 .270 (3x) .0050 I 1/8 1-1/2 839590 $30.40 839590-C3 $34.90 00000119
130° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 839608 $31.90 839608-C3 $36.30 00000120
130° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 847016 $33.30 847016-C3 $40.10 00000121
140° .010 .030 (3x) .0015 I 1/8 1-1/2 39810 $34.20 39810-C3 $38.80 00000122
140° .015 (1/64) .045 (3x) .0015 I 1/8 1-1/2 39815 $34.20 39815-C3 $38.80 00000123
140° .020 .030 (1.5x) .0020 I 1/8 1-1/2 815820 $29.20 815820-C3 $33.80 00000124
140° .020 .060 (3x) .0020 I 1/8 1-1/2 39820 $29.20 39820-C3 $33.80 00000125
140° .025 .075 (3x) .0020 I 1/8 1-1/2 39825 $29.20 39825-C3 $33.80 00000126
140° .030 .045 (1.5x) .0030 I 1/8 1-1/2 815830 $27.60 815830-C3 $32.60 00000127
140° .030 .090 (3x) .0030 I 1/8 1-1/2 39830 $27.60 39830-C3 $32.20 00000128
140° .031 (1/32) .093 (3x) .0030 I 1/8 1-1/2 39831 $27.60 39831-C3 $32.20 00000129
140° .040 .060 (1.5x) .0030 I 1/8 1-1/2 815840 $24.80 815840-C3 $29.40 00000130
140° .040 .120 (3x) .0030 I 1/8 1-1/2 39840 $24.80 39840-C3 $29.40 00000131
140° .045 .135 (3x) .0030 I 1/8 1-1/2 39845 $24.80 39845-C3 $29.40 00000132
140° .047 (3/64) .141 (3x) .0040 I 1/8 1-1/2 39847 $24.80 39847-C3 $29.40 00000133
140° .050 .150 (3x) .0040 I 1/8 1-1/2 39850 $24.80 39850-C3 $29.40 00000134
140° .055 .165 (3x) .0040 I 1/8 1-1/2 39855 $24.80 39855-C3 $29.40 00000135
140° .060 .090 (1.5x) .0050 I 1/8 1-1/2 815860 $24.50 815860-C3 $29.10 00000136
140° .060 .180 (3x) .0050 I 1/8 1-1/2 39860 $24.50 39860-C3 $29.10 00000137
140° .062 (1/16) .186 (3x) .0050 I 1/8 1-1/2 39862 $24.50 39862-C3 $29.10 00000138
140° .070 .210 (3x) .0050 I 1/8 1-1/2 39870 $24.50 39870-C3 $29.10 00000139
140° .075 .225 (3x) .0050 I 1/8 1-1/2 39875 $24.50 39875-C3 $29.10 00000140
140° .078 (5/64) .234 (3x) .0050 I 1/8 1-1/2 39878 $24.50 39878-C3 $29.10 00000141
140° .090 .135 (1.5x) .0050 I 1/8 1-1/2 815890 $23.40 815890-C3 $28.00 00000142
140° .090 .270 (3x) .0050 I 1/8 1-1/2 39890 $23.40 39890-C3 $28.00 00000143
140° .093 (3/32) .279 (3x) .0060 I 1/8 1-1/2 39893 $23.40 39893-C3 $28.00 00000144
140° .100 .300 (3x) .0060 I 1/8 1-1/2 39900 $23.40 39900-C3 $28.00 00000145
140° .118 (3mm) .354 (3x) .0080 I 1/8 1-1/2 3993M $23.40 3993M-C3 $28.00 00000146
140° .125 (1/8) .188 (1.5x) .0100 I 1/8 1-1/2 815908 $22.20 815908-C3 $26.80 00000147
140° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 39925 $22.20 39925-C3 $26.80 00000148
140° .125 (1/8) .375 (3x) .0100 II 1/8 1-1/2 41008 $22.20 41008-C3 $26.80 00000149
140° .140 (9/64) .375 (2.5x) .0100 II 3/16 2 41009 $25.70 41009-C3 $30.70 00000150
140° .156 (5/32) .375 (2.5x) .0110 II 3/16 2 41010 $25.70 41010-C3 $30.70 00000151
140° .187 (3/16) .625 (3x) .0130 I 3/16 2 804112 $25.70 804112-C3 $30.70 00000152
140° .187 (3/16) .625 (3x) .0130 II 3/16 2 41012 $25.70 41012-C3 $30.70 00000153
140° .250 (1/4) .750 (3x) .0180 I 1/4 2-1/2 804116 $31.90 804116-C3 $38.70 00000154
140° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 41016 $31.90 41016-C3 $38.70 00000155
140° .375 (3/8) 1.000 (2.5x) .0270 II 3/8 2-1/2 41024 $56.30 41024-C3 $65.30 00000156
150° .020 .060 (3x) .0020 I 1/8 1-1/2 961120 $27.60 961120-C3 $32.20 00000157
150° .030 .090 (3x) .0030 I 1/8 1-1/2 961130 $27.60 961130-C3 $32.20 00000158
150° .040 .120 (3x) .0030 I 1/8 1-1/2 961140 $24.80 961140-C3 $29.40 00000159
150° .045 .135 (3x) .0030 I 1/8 1-1/2 961145 $24.80 961145-C3 $29.40 00000160
150° .047 .141 (3x) .0040 I 1/8 1-1/2 961147 $24.80 961147-C3 $29.40 00000161
150° .060 .180 (3x) .0050 I 1/8 1-1/2 961160 $24.50 961160-C3 $29.10 00000162
150° .062 (1/16) .186 (3x) .0050 I 1/8 1-1/2 961162 $24.80 961162-C3 $29.40 00000163
150° .078 (5/64) .234 (3x) .0050 I 1/8 1-1/2 961178 $24.80 961178-C3 $29.40 00000164
150° .090 .270 (3x) .0050 I 1/8 1-1/2 961190 $24.80 961190-C3 $29.40 00000165
150° .093 (3/32) .279 (3x) .0060 I 1/8 1-1/2 961193 $24.80 961193-C3 $29.40 00000166
150° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 961208 $22.20 961208-C3 $26.80 00000167
150° .125 (1/8) .375 (3x) .0100 II 1/8 1-1/2 949508 $22.20 949508-C3 $26.80 00000168
150° .187 (3/16) .625 (3x) .0130 II 3/16 2 949512 $25.70 949512-C3 $30.70 00000169
150° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 949516 $31.90 949516-C3 $38.70 00000170
170° .060 .180 (3x) .0050 I 1/8 1-1/2 893660 $24.80 893660-C3 $29.40 00000171
170° .125 (1/8) .375 (3x) .0100 I 1/8 1-1/2 893708 $24.80 893708-C3 $29.40 00000172
170° .250 (1/4) .750 (3x) .0180 II 1/4 2-1/2 893716 $31.90 893716-C3 $38.70 00000173

Write A Review

Thank you for your review. It has been submitted to the website administrator for approval

Please select a rating.

Write A Review

Thank you for your review. It has been submitted to the website administrator for approval

Please select a rating.

Customers Also Viewed
Miniature Drills
Miniature Drills

Harvey Tool's vast, fully stocked offering of Miniature Drills is the industry's best. Browse from sizes as miniature as .002. . .
