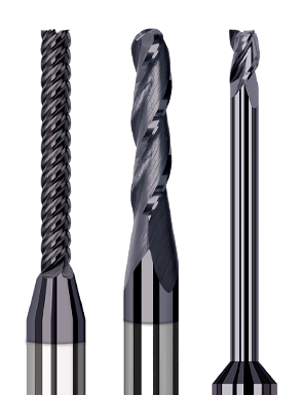

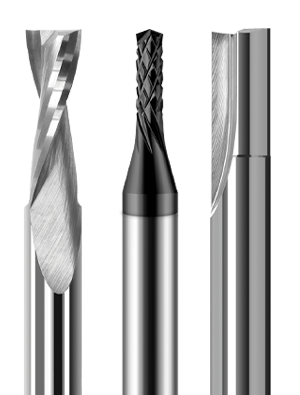

Using the data tables and the milling formulas below, you can calculate the speeds and feeds of any carbide end mills and diamond end mills. Are you using a Harvey tool? Click here for speeds and feeds specific to your tool.
NON-FERROUS | CHIP LOAD (IPT, BASED ON CUTTER DIAMETER) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
MATERIAL | GRADE | SFM | 1/8" | 3/16" | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" |
Aluminum | 440, 356, 380, C61300 | 500-1000 | .001 | .002 | .002 | .003 | .004 | .005 | .006 | .007 |
Aluminum | 2024-T4/T6, 2014, 6061-T6/T651, 7075-T6 | 800-1500 | .001 | .002 | .002 | .003 | .004 | .005 | .006 | .007 |
Copper | Navel Brass, High Silicon Bronze, A-17, C-17200 | 600-1000 | .001 | .001 | .002 | .0025 | .003 | .004 | .004 | .005 |
Copper | Yellow Brass, High Lead Brass, Red Brass | 800-1500 | .001 | .001 | .002 | .0025 | .003 | .004 | .004 | .005 |
Copper Alloys | Nickel Silver, Beryllium Copper, Oxygen-Free Copper | 700-1000 | .001 | .001 | .002 | .0025 | .003 | .004 | .004 | .005 |
Copper Alloys | Alum/Bronze, Low Silicon Bronze | 800-1000 | .001 | .001 | .002 | .0025 | .003 | .004 | .004 | .005 |
Magnesium | Die-Cast, Extruded | 1000 min | .001 | .002 | .002 | .003 | .004 | .006 | .008 | .009 |
Plastics | Polycarbonate | 200-500 | .001 | .002 | .003 | .004 | .006 | .008 | .010 | .015 |
Plastics | Acrylics, Phenolics, Polysulfone | 200-600 | .001 | .002 | .003 | .004 | .006 | .008 | .010 | .015 |
Carbon | Carbon, Graphites | 500-1000 | .004 | .004 | .006 | .008 | .010 | .010 | .015 | .020 |
Milling Formulas & Glossary | ||
---|---|---|
FORMULAS | GLOSSARY | |
RPM = (3.82 x SFM) / D IPM = RPM x IPR IPM = RPM x IPT x T |
SFM - Surface Feet per Minute RPM - Revolutions per Minute (Speed) IPT - Inches Per Tooth (Chip Load) IPR - Inches Per Revolution |
IPM = Inches Per Minute (Feed) D - Cutter Diameter T - Number of Teeth |
IRON - STEEL - STAINLESS | CHIP LOAD (IPT, BASED ON CUTTER DIAMETER) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
MATERIAL | GRADE | SFM | 1/8" | 3/16" | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" |
Ductile Iron | Gray Cast Iron | 100-400 | .0005 | .001 | .002 | .003 | .004 | .005 | .006 | .008 |
Ductile Iron | Ductile Cast Iron - Soft | 80-140 | .0005 | .001 | .0015 | .002 | .002 | .003 | .004 | .005 |
Ductile Iron | Ductile Cast Iron - Hard | 100-400 | .0005 | .001 | .0015 | .002 | .002 | .003 | .004 | .005 |
Ductile Iron | Malleable, Chilled | 90-2500 | .0005 | .001 | .002 | .003 | .004 | .005 | .006 | .008 |
Low Alloy | 23XX, 31XX | 100-150 | .0005 | .001 | .0015 | .002 | .003 | .004 | .005 | .006 |
Low Alloy | 10XX, 11XX, 13XX | 100-300 | .0005 | .001 | .0015 | .002 | .003 | .004 | .005 | .006 |
Medium Alloy | 200, 250, 301 | 100-350 | .0005 | .0005 | .001 | .002 | .0025 | .0035 | .004 | .005 |
Medium Alloy | 200, 250, 300 | 60-120 | .0005 | .0005 | .001 | .002 | .0025 | .0035 | .004 | .005 |
High Alloy | Hy-Tugg, Stressproof, AmorPlate | 50-150 | .0005 | .0005 | .001 | .001 | .001 | .0015 | .002 | .004 |
High Alloy | A-2/6/10, P-3/10, 01, 02, 06 | 100-250 | .0005 | .0005 | .001 | .001 | .001 | .0015 | .002 | .004 |
High Strength | 4340M, EDT-150, HP9-430, 300M, D6-Ac, 11-10 | 80-180 | .0005 | .0005 | .001 | .001 | .001 | .0015 | .002 | .004 |
High Strength | 4340, 6150, 52100, H-11, H-13 | 50-250 | .0005 | .0005 | .001 | .001 | .001 | .0015 | .002 | .004 |
Austenic | 304, 310, 314, 316, 321, 330, 347, 348, 21-6-9 | 100-250 | .0001 | .0002 | .0005 | .001 | .0015 | .002 | .003 | .004 |
Austenic | 200 Series, 302, 303, 304L, 316L | 100-350 | .0001 | .0002 | .0005 | .001 | .0015 | .002 | .003 | .004 |
Precipitation | 17/4, 17/7, AF-71, Custom 450/636, 15/7 Mo, 21-6-9 | 90-250 | .0005 | .0005 | .001 | .001 | .002 | .002 | .004 | .006 |
Precipitation | 13/8, 15/5, AM-350/355 | 100-250 | .0005 | .0005 | .001 | .001 | .002 | .002 | .004 | .006 |
Martensitic | 420, 430F, 440C, 446 | 90-250 | .0001 | .0002 | .0005 | .0005 | .001 | .001 | .003 | .004 |
Martensitic | 403, 410, 416 | 100-250 | .0001 | .0002 | .0005 | .0005 | .001 | .001 | .003 | .004 |
Milling Formulas & Glossary | ||
---|---|---|
FORMULAS | GLOSSARY | |
RPM = (3.82 x SFM) / D IPM = RPM x IPR IPM = RPM x IPT x T |
SFM - Surface Feet per Minute RPM - Revolutions per Minute (Speed) IPT - Inches Per Tooth (Chip Load) IPR - Inches Per Revolution |
IPM = Inches Per Minute (Feed) D - Cutter Diameter T - Number of Teeth |
HIGH TEMPERATURE ALLOYS - TITANIUM | CHIP LOAD (IPT, BASED ON CUTTER DIAMETER) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
MATERIAL | GRADE | SFM | 1/8" | 3/16" | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 1" |
Cobalt Base | Air-Resist 13/213/215, Haynes 21/36, NASA CO-W-RE | 40-80 | .0004 | .0005 | .001 | .001 | .001 | .001 | .0015 | .002 |
Cobalt Base | Stellite, HS-21, HAYNES25/188, X-40, L-605 | 60-100 | .0004 | .0005 | .001 | .001 | .001 | .001 | .0015 | .002 |
Iron Base | A-286, Haynes 556, Discoly, V57 | 50-80 | .0005 | .0005 | .001 | .0015 | .002 | .0025 | .003 | .004 |
Iron Base | Incoly 600-802, Multimet N-155, Timkin 16-25-6 | 80-100 | .0005 | .0005 | .001 | .0015 | .002 | .0025 | .003 | .004 |
Nickel Base | Hastalloy-C/B/X, INCONEL 718/X/W, Waspalloy, Rene 41-95 | 40-60 | .0005 | .0005 | .001 | .001 | .002 | .0025 | .003 | .004 |
Nickel Base | INCONEL 600/625, Nickel 200-270, Monel 400-405 | 45-100 | .0005 | .0005 | .001 | .001 | .002 | .0025 | .003 | .004 |
Titanium Alloy | 5AL-2.5Sn-Eli, 8Al-1 Mo-1V | 90-120 | .0005 | .0005 | .0005 | .001 | .001 | .0015 | .002 | .004 |
Titanium Alloy | Commercially, Pure, 6AL-4V, Astm 1/2/3, 6AL-25N-4Zr-2Mo-Si | 50-250 | .0005 | .0005 | .0005 | .001 | .001 | .0015 | .002 | .004 |
Milling Formulas & Glossary | ||
---|---|---|
FORMULAS | GLOSSARY | |
RPM = (3.82 x SFM) / D IPM = RPM x IPR IPM = RPM x IPT x T |
SFM - Surface Feet per Minute RPM - Revolutions per Minute (Speed) IPT - Inches Per Tooth (Chip Load) IPR - Inches Per Revolution |
IPM = Inches Per Minute (Feed) D - Cutter Diameter T - Number of Teeth |

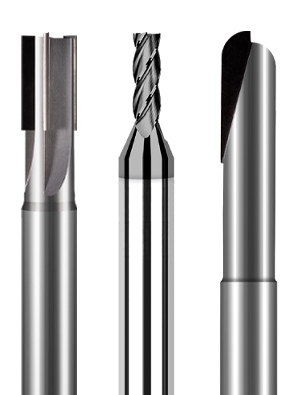

NON-FERROUS ONLY | CHIP LOAD OF GRAPHITE ONLY (IPT, BASED ON CUTTER DIAMETER) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
MATERIAL | SFM | CHIP LOAD (IPT) | DIAMETER | SOFT | MEDIUM | HARD | ||||
Aluminum (5%-8% Si) | 2000 - 6000 | .005 - .010 | 1/32" | .0005-.0006 | .0004-.0005 | .0003-.0004 | ||||
Aluminum (8%-12% Si) | 1500 - 5000 | .004 - .008 | 1/16" | .0010-.0013 | .0008-.0010 | .0005-.0008 | ||||
Aluminum (14%-18% Si) | 1000 - 3000 | .002 - .006 | 3/32" | .0015-.0019 | .0011-.0015 | .0008-.0011 | ||||
Copper | 750 - 1500 | .001 - .008 | 1/8" | .0020-.0025 | .0015-.0020 | .0010-.0015 | ||||
Bronze | 900 - 1350 | .003 - .008 | 3/16" | .0030-.0038 | .0023-.0030 | .0015-.0023 | ||||
Brass | 2000 - 4000 | .001 - .008 | 1/4" | .0040-.0050 | .0030-.0040 | .0020-.0030 | ||||
Babbit | 700 - 1000 | .003 - .010 | 5/16" | .0050-.0063 | .0038-.0050 | .0025-.0038 | ||||
Unfilled Plastic | 1000 - 4000 | .003 - .020 | 3/8" | .0006-.0075 | .0045-.0060 | .0030-.0045 | ||||
Glass Fiber Materials | 750 - 1500 | .001 - .010 | 7/16" | .0070-.0088 | .0053-.0070 | .0035-.0053 | ||||
Ceramic Materials (Green) | 500 - 1500 | .002 - .010 | 1/2" | .0080-.0100 | .0060-.0080 | .0040-.0060 | ||||
Carbon Composites | 500 - 2000 | .003 - .015 | ||||||||
Carbon (Graphite) | 500 - 2000 | see right |
Milling Formulas & Glossary | ||
---|---|---|
FORMULAS | GLOSSARY | |
RPM = (3.82 x SFM) / D IPM = RPM x IPR IPM = RPM x IPT x T |
SFM - Surface Feet per Minute RPM - Revolutions per Minute (Speed) IPT - Inches Per Tooth (Chip Load) IPR - Inches Per Revolution |
IPM = Inches Per Minute (Feed) D - Cutter Diameter T - Number of Teeth |
