Chamfer Cutters - Deburring Chamfer Cutters

Specialty Profiles
Chamfer Cutters - Deburring Chamfer Cutters

Specialty Profiles

Harvey Tool's Deburring Chamfer Cutters allow machinists to deburr in their CNC machine with high precision burs held to end mill tolerances, which allows use of standard programming and tool paths, and results in a better finish and increased feed rates.

  • End mill tolerances with burr-style geometry
  • Deburr in your CNC machine with these high precision burs held to end mill tolerances
  • Stop scrapping expensive parts due to handheld operator errors
  • High flute count allows for increased feeds which reduces cycle time
  • Achieve better finish than with milling type cutters
  • Tight end mill tolerances allow use of standard programming and tool paths
  • Cone shaped burs are effective in removing burrs and/or adding a small controlled edge break with superior finish
  • Double cut style flute pattern
  • Solid carbide
  • CNC ground in the USA

Advanced Search

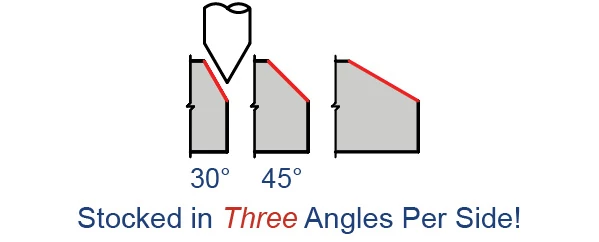

ANGLE PER SIDE LOC RIGHT
HAND TEETH
LEFT
HAND TEETH
MINOR
DIAMETER
SHANK DIA. OAL UNCOATED AlTiN COATED AMORPHOUS DIAMOND Add to Cart Default Sort
A
+0°30'-0°30'
L2          D2 L1 TOOL # PRICE TOOL # PRICE TOOL # PRICE
30° .099 12 6 .012 (Max.) 1/8 2-1/2 58130 $24.50 58130-C3 $29.10 00000001
30° .207 12 6 .012 (Max.) 1/4 2-1/2 994030 $34.80 994030-C3 $41.60 00000002
45° .057 12 6 .012 (Max.) 1/8 2-1/2 58145 $24.50 58145-C3 $29.10 58145-C4 $36.20 00000003
45° .088 12 6 .012 (Max.) 3/16 2-1/2 891145 $30.60 891145-C3 $35.60 891145-C4 $46.70 00000004
45° .120 12 6 .012 (Max.) 1/4 2-1/2 994045 $34.80 994045-C3 $41.60 994045-C4 $53.10 00000005
60° .033 12 6 .012 (Max.) 1/8 2-1/2 58160 $24.50 58160-C3 $29.10 00000006
