Harvey Tool's offering of solid carbide Double-Ended Deburring Chamfer Cutters have a double cut syle flute pattern with cone shaped, high precision burs, allowing machinists to deburr in their CNC machine efficiently, resulting in a superior part finish.

  • End mill tolerances with burr-style geometry
  • Deburr in your CNC machine with these high precision burs held to end mill tolerances
  • Stop scrapping expensive parts due to handheld operator errors
  • High number of flutes allows for faster speeds and feeds
  • Achieve better finish than with milling type cutters
  • Tight end mill tolerances allow use of standard programming and tool paths
  • Cone shaped burs are effective in removing burrs and/or adding a small controlled edge break with superior finish
  • Double cut style flute pattern
  • Solid carbide
  • CNC ground in the USA

Advanced Search

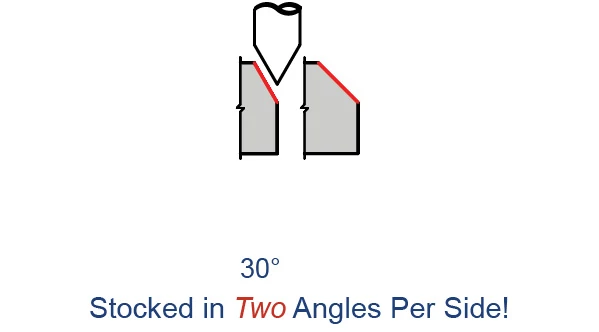

ANGLE PER SIDE LOC RIGHT HAND TEETH LEFT HAND TEETH MINOR DIAMETER SHANK DIA. OAL UNCOATED AlTiN COATED Add to Cart Default Sort
A
+0°30'-0°30'
L2   .    D2 L1 TOOL # PRICE TOOL # PRICE
30° .099 12 6 .012 (Max.) 1/8 2-1/2 898330 $36.80 898330-C3 $42.50 00000001
45° .057 12 6 .012 (Max.) 1/8 2-1/2 898345 $36.80 898345-C3 $42.50 00000002
45° .088 12 6 .012 (Max.) 3/16 2-1/2 879745 $44.20 879745-C3 $51.00 00000003
45° .120 12 6 .012 (Max.) 1/4 2-1/2 867545 $52.30 867545-C3 $61.30 00000004
45° .181 14 7 .012 (Max.) 3/8 2-1/2 788145 $66.70 788145-C3 $80.10 00000005
