Keyseat Cutters - Staggered Tooth - Corner Radius

Specialty Profiles
Keyseat Cutters - Staggered Tooth - Corner Radius

Specialty Profiles

The staggered tooth design featured on this product offering of Harvey Tool Keyseat Cutters with a corner radius profile is designed to improve shearing action and finish while minimizing chip dragging, recutting, and vibration during machining operations.

  • Staggered tooth design for freer cutting action
  • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
  • Alternating RH/LH shear flutes, RH cut
  • Relieved to allow cutting on both sides of head
  • Tool can be offset to increase width of groove
  • Solid carbide
  • CNC ground in the USA

Advanced Search

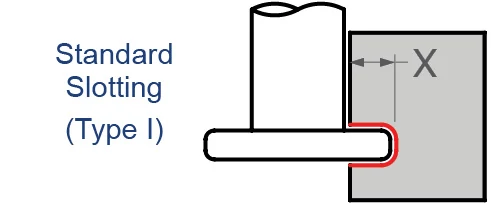

*Radial DOC accounts for max transition radius at neck
CUTTER DIA. CUTTER WIDTH CORNER RADIUS NECK DIA. NECK LENGTH Radial DOC* TYPE FLUTES SHANK DIA. OAL UNCOATED AlTiN COATED Add to Cart Default Sort
D1
+.000"-.002"
 L2
+.0005"-.0005"
 R
+.001"-.001"
   L3
+.020"-.000"
    " . # D2 L1 TOOL # PRICE TOOL # PRICE
1/8 .031 (1/32) .005 1/16 3/16 (1.5x) .022 I 6 1/8 1-1/2 43631 $60.20 43631-C3 $64.80 00000001
1/8 .031 (1/32) .005 1/16 3/8 (3x) .022 I 6 1/8 1-1/2 989931 $72.40 989931-C3 $77.00 00000002
1/8 .047 (3/64) .005 1/16 3/16 (1.5x) .022 I 6 1/8 1-1/2 43647 $60.20 43647-C3 $64.80 00000003
1/8 .062 (1/16) .005 1/16 3/16 (1.5x) .022 I 6 1/8 1-1/2 43662 $60.20 43662-C3 $64.80 00000004
1/8 .062 (1/16) .005 1/16 3/8 (3x) .022 I 6 1/8 1-1/2 989962 $72.40 989962-C3 $77.00 00000005
1/8 .062 (1/16) .010 1/16 3/16 (1.5x) .022 I 6 1/8 1-1/2 44462 $60.20 44462-C3 $64.80 00000006
3/16 .031 (1/32) .005 3/32 9/32 (1.5x) .037 I 6 3/16 2 943531 $66.70 943531-C3 $71.70 00000007
3/16 .047 (3/64) .005 3/32 9/32 (1.5x) .037 I 6 3/16 2 943547 $66.70 943547-C3 $71.70 00000008
3/16 .062 (1/16) .005 3/32 9/32 (1.5x) .037 I 6 3/16 2 943562 $66.70 943562-C3 $71.70 00000009
3/16 .062 (1/16) .010 3/32 9/32 (1.5x) .037 I 6 3/16 2 951762 $66.70 951762-C3 $71.70 00000010
1/4 .031 (1/32) .005 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 43831 $83.20 43831-C3 $90.00 00000011
1/4 .031 (1/32) .010 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 44531 $83.20 44531-C3 $90.00 00000012
1/4 .047 (3/64) .005 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 43847 $83.20 43847-C3 $90.00 00000013
1/4 .047 (3/64) .005 1/8 3/4 (3x) .053 I 6 1/4 2-1/2 958047 $96.20 958047-C3 $103.00 00000014
1/4 .062 (1/16) .005 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 43862 $83.20 43862-C3 $90.00 00000015
1/4 .062 (1/16) .005 1/8 3/4 (3x) .053 I 6 1/4 2-1/2 958062 $96.20 958062-C3 $103.00 00000016
1/4 .062 (1/16) .010 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 44562 $83.20 44562-C3 $90.00 00000017
1/4 .093 (3/32) .005 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 43893 $83.20 43893-C3 $90.00 00000018
1/4 .093 (3/32) .010 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 44593 $83.20 44593-C3 $90.00 00000019
1/4 .125 (1/8) .005 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 43895 $83.20 43895-C3 $90.00 00000020
1/4 .125 (1/8) .010 1/8 3/8 (1.5x) .053 I 6 1/4 2-1/2 44595 $83.20 44595-C3 $90.00 00000021
3/8 .031 (1/32) .005 3/16 9/16 (1.5x) .084 I 8 3/8 2-1/2 967210 $107.90 967210-C3 $116.90 00000022
3/8 .062 (1/16) .005 3/16 9/16 (1.5x) .084 I 8 3/8 2-1/2 967230 $107.90 967230-C3 $116.90 00000023
3/8 .062 (1/16) .010 3/16 9/16 (1.5x) .084 I 8 3/8 2-1/2 970930 $107.90 970930-C3 $116.90 00000024
3/8 .093 (3/32) .005 3/16 9/16 (1.5x) .084 I 8 3/8 2-1/2 967250 $107.90 967250-C3 $116.90 00000025
3/8 .093 (3/32) .010 3/16 9/16 (1.5x) .084 I 8 3/8 2-1/2 970950 $107.90 970950-C3 $116.90 00000026
3/8 .125 (1/8) 005 3/16 9/16 (1.5x) .084 I 8 3/8 2-1/2 967260 $107.90 967260-C3 $116.90 00000027
3/8 .125 (1/8) .010 3/16 9/16 (1.5x) .084 I 8 3/8 2-1/2 970960 $107.90 970960-C3 $116.90 00000028
1/2 .062 (1/16) .005 1/4 3/4 (1.5x) .115 I 8 1/2 3 44330 $133.60 44330-C3 $147.00 00000029
1/2 .062 (1/16) .005 1/4 1-1/2 (3x) .115 I 8 1/2 3 976730 $147.90 976730-C3 $161.30 00000030
1/2 .062 (1/16) .010 1/4 3/4 (1.5x) .115 I 8 1/2 3 44630 $133.60 44630-C3 $147.00 00000031
1/2 .062 (1/16) .015 1/4 3/4 (1.5x) .115 I 8 1/2 3 921330 $133.60 921330-C3 $147.00 00000032
1/2 .093 (3/32) .005 1/4 3/4 (1.5x) .115 I 8 1/2 3 44350 $133.60 44350-C3 $147.00 00000033
1/2 .093 (3/32) .005 1/4 1-1/2 (3x) .115 I 8 1/2 3 976750 $147.90 976750-C3 $161.30 00000034
1/2 .093 (3/32) .010 1/4 3/4 (1.5x) .115 I 8 1/2 3 44650 $133.60 44650-C3 $147.00 00000035
1/2 .093 (3/32) .015 1/4 3/4 (1.5x) .115 I 8 1/2 3 921350 $133.60 921350-C3 $147.00 00000036
1/2 .125 (1/8) .005 1/4 3/4 (1.5x) .115 I 8 1/2 3 44360 $133.60 44360-C3 $147.00 00000037
1/2 .125 (1/8) .005 1/4 1-1/2 (3x) .115 I 8 1/2 3 976760 $147.90 976760-C3 $161.30 00000038
1/2 .125 (1/8) .010 1/4 3/4 (1.5x) .115 I 8 1/2 3 44660 $133.60 44660-C3 $147.00 00000039
1/2 .125 (1/8) .015 1/4 3/4 (1.5x) .115 I 8 1/2 3 921360 $133.60 921360-C3 $147.00 00000040
1/2 .187 (3/16) .005 1/4 3/4 (1.5x) .115 I 8 1/2 3 44370 $133.60 44370-C3 $147.00 00000041
1/2 .187 (3/16) .010 1/4 3/4 (1.5x) .115 I 8 1/2 3 44670 $133.60 44670-C3 $147.00 00000042
1/2 .250 (1/4) .005 1/4 3/4 (1.5x) .115 I 8 1/2 3 44380 $133.60 44380-C3 $147.00 00000043
1/2 .250 (1/4) .010 1/4 3/4 (1.5x) .115 I 8 1/2 3 44680 $133.60 44680-C3 $147.00 00000044
1/2 .250 (1/4) .015 1/4 3/4 (1.5x) .115 I 8 1/2 3 921380 $133.60 921380-C3 $147.00 00000045
5/8 .125 (1/8) .005 5/16 15/16 (1.5x) .146 I 8 5/8 3-1/2 860460 $188.70 860460-C3 $202.10 00000046
5/8 .125 (1/8) .010 5/16 15/16 (1.5x) .146 I 8 5/8 3-1/2 872960 $188.70 872960-C3 $202.10 00000047
5/8 .187 (3/16) .005 5/16 15/16 (1.5x) .146 I 8 5/8 3-1/2 860470 $188.70 860470-C3 $202.10 00000048
5/8 .187 (3/16) .010 5/16 15/16 (1.5x) .146 I 8 5/8 3-1/2 872970 $188.70 872970-C3 $202.10 00000049
5/8 .250 (1/4) .005 5/16 15/16 (1.5x) .146 I 8 5/8 3-1/2 860480 $188.70 860480-C3 $202.10 00000050
5/8 .250 (1/4) .010 5/16 15/16 (1.5x) .146 I 8 5/8 3-1/2 872980 $188.70 872980-C3 $202.10 00000051
