Miniature High Performance Drills - Composites - Double Angle

Holemaking & Threading
Holemaking & Threading

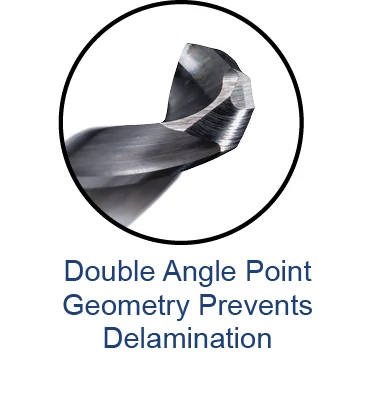

The double angle point geometry of Harvey Tool's fully stocked, solid carbide Miniature High Performance Drills - Composites - Double Angle results in superior performance in preventing push-out and delamination in layered composites.

  • Optimized for drilling layered composites with excellent performance in virgin plastics and other composite materials
  • Double angle geometry for superior performance in preventing push-out and delamination in layered composites
  • Amorphous diamond coating for increased abrasion resistance
  • h6 shank tolerance for high precision tool holders
  • Solid carbide
  • CNC ground in the USA

Advanced Search

DRILL
DIAMETER
FLUTE
LENGTH
SHANK
DIAMETER
OVERALL
LENGTH
AMORPHOUS DIAMOND COATED Add to Cart Default Sort
inch wire mm
D1 +.000mm/-.013mm
inch mm
L2 +.25mm/-.00mm
hole depth D2(h6) L1 2 FL PRICE
.0312 (1/32) .793 mm .213 5.40 mm (5x) 3 mm 50 mm DDA0312-C4 $54.40 00000001
.0314 .800 mm .213 5.40 mm (5x) 3 mm 50 mm DDA0315-C4 $54.40 00000002
.0320 #67 .812 mm .213 5.40 mm (5x) 3 mm 50 mm DDA0320-C4 $54.40 00000003
.0330 #66 .838 mm .220 5.60 mm (5x) 3 mm 50 mm DDA0330-C4 $54.40 00000004
.0350 #65 .889 mm .236 6.00 mm (5x) 3 mm 50 mm DDA0350-C4 $54.40 00000005
.0354 .900 mm .236 6.00 mm (5x) 3 mm 50 mm DDA0354-C4 $54.40 00000006
.0360 #64 .914 mm .244 6.20 mm (5x) 3 mm 50 mm DDA0360-C4 $54.40 00000007
.0370 #63 .939 mm .252 6.40 mm (5x) 3 mm 50 mm DDA0370-C4 $54.40 00000008
.0380 #62 .965 mm .260 6.60 mm (5x) 3 mm 50 mm DDA0380-C4 $54.40 00000009
.0390 #61 .990 mm .260 6.60 mm (5x) 3 mm 50 mm DDA0390-C4 $54.40 00000010
.0393 1.000 mm .268 6.80 mm (5x) 3 mm 50 mm DDA0393-C4 $55.80 00000011
.0400 #60 1.016 mm .268 6.80 mm (5x) 3 mm 50 mm DDA0400-C4 $55.80 00000012
.0410 #59 1.041 mm .276 7.00 mm (5x) 3 mm 50 mm DDA0410-C4 $55.80 00000013
.0420 #58 1.066 mm .283 7.20 mm (5x) 3 mm 50 mm DDA0420-C4 $55.80 00000014
.0430 #57 1.092 mm .291 7.40 mm (5x) 3 mm 50 mm DDA0430-C4 $55.80 00000015
.0450 1.143 mm .307 7.80 mm (5x) 3 mm 50 mm DDA0450-C4 $55.80 00000016
.0465 #56 1.181 mm .315 8.00 mm (5x) 3 mm 50 mm DDA0465-C4 $55.80 00000017
.0468 (3/64) 1.190 mm .315 8.00 mm (5x) 3 mm 50 mm DDA0468-C4 $55.80 00000018
.0492 1.250 mm .335 8.50 mm (5x) 3 mm 50 mm DDA0492-C4 $55.80 00000019
.0500 1.270 mm .335 8.50 mm (5x) 3 mm 50 mm DDA0500-C4 $55.80 00000020
.0520 #55 1.320 mm .354 9.00 mm (5x) 3 mm 50 mm DDA0520-C4 $55.80 00000021
.0550 #54 1.397 mm .374 9.50 mm (5x) 3 mm 50 mm DDA0550-C4 $55.80 00000022
.0590 1.500 mm .394 10.00 mm (5x) 3 mm 50 mm DDA0590-C4 $56.60 00000023
.0595 #53 1.511 mm .394 10.00 mm (5x) 3 mm 50 mm DDA0595-C4 $56.60 00000024
.0600 1.524 mm .413 10.50 mm (5x) 3 mm 50 mm DDA0600-C4 $56.60 00000025
.0625 (1/16) 1.587 mm .413 10.50 mm (5x) 3 mm 50 mm DDA0625-C4 $56.60 00000026
.0635 #52 1.612 mm .433 11.00 mm (5x) 3 mm 50 mm DDA0635-C4 $56.60 00000027
.0670 #51 1.701 mm .453 11.50 mm (5x) 3 mm 50 mm DDA0670-C4 $56.60 00000028
.0700 #50 1.778 mm .472 12.00 mm (5x) 3 mm 50 mm DDA0700-C4 $56.60 00000029
.0730 #49 1.854 mm .492 12.50 mm (5x) 3 mm 50 mm DDA0730-C4 $56.60 00000030
.0760 #48 1.930 mm .512 13.00 mm (5x) 3 mm 50 mm DDA0760-C4 $56.60 00000031
.0781 (5/64) 1.984 mm .531 13.50 mm (5x) 3 mm 50 mm DDA0781-C4 $56.60 00000032
.0785 #47 1.993 mm .531 13.50 mm (5x) 3 mm 50 mm DDA0785-C4 $56.60 00000033
.0787 2.000 mm .531 13.50 mm (5x) 4 mm 50 mm DDA0787-C4 $57.60 00000034
.0800 2.032 mm .531 13.50 mm (5x) 4 mm 50 mm DDA0800-C4 $57.60 00000035
.0810 #46 2.057 mm .551 14.00 mm (5x) 4 mm 50 mm DDA0810-C4 $57.60 00000036
.0820 #45 2.082 mm .551 14.00 mm (5x) 4 mm 50 mm DDA0820-C4 $57.60 00000037
.0860 #44 2.184 mm .571 14.50 mm (5x) 4 mm 50 mm DDA0860-C4 $57.60 00000038
.0890 #43 2.260 mm .591 15.00 mm (5x) 4 mm 50 mm DDA0890-C4 $57.60 00000039
.0900 2.286 mm .591 15.00 mm (5x) 4 mm 50 mm DDA0900-C4 $57.60 00000040
.0935 #42 2.374 mm .630 16.00 mm (5x) 4 mm 63 mm DDA0935-C4 $57.60 00000041
.0937 (3/32) 2.381 mm .630 16.00 mm (5x) 4 mm 63 mm DDA0937-C4 $57.60 00000042
.0937 (3/32) 2.381 mm .906 23.00 mm (8x) 4 mm 63 mm AWS0937-C4 $59.20 00000043
.0960 #41 2.438 mm .630 16.00 mm (5x) 4 mm 63 mm DDA0960-C4 $57.60 00000044
.0980 #40 2.489 mm .669 17.00 mm (5x) 4 mm 63 mm DDA0980-C4 $57.60 00000045
.0984 2.500 mm .669 17.00 mm (5x) 4 mm 63 mm DDA0984-C4 $58.00 00000046
.0995 #39 2.527 mm .669 17.00 mm (5x) 4 mm 63 mm DDA0995-C4 $58.00 00000047
.1000 2.540 mm .669 17.00 mm (5x) 4 mm 63 mm DDA1000-C4 $58.00 00000048
.1000 2.540 mm .984 25.00 mm (8x) 4 mm 63 mm AWS1000-C4 $59.20 00000049
.1015 #38 2.578 mm .669 17.00 mm (5x) 4 mm 63 mm DDA1015-C4 $58.00 00000050
.1040 #37 2.641 mm .709 18.00 mm (5x) 4 mm 63 mm DDA1040-C4 $58.00 00000051
.1065 #36 2.705 mm .709 18.00 mm (5x) 4 mm 63 mm DDA1065-C4 $58.00 00000052
.1093 (7/64) 2.778 mm .748 19.00 mm (5x) 4 mm 63 mm DDA1093-C4 $58.00 00000053
.1100 #35 2.794 mm .748 19.00 mm (5x) 4 mm 63 mm DDA1100-C4 $58.00 00000054
.1110 #34 2.819 mm .748 19.00 mm (5x) 4 mm 63 mm DDA1110-C4 $58.00 00000055
.1130 #33 2.870 mm .748 19.00 mm (5x) 4 mm 63 mm DDA1130-C4 $58.00 00000056
.1160 #32 2.946 mm .787 20.00 mm (5x) 4 mm 63 mm DDA1160-C4 $58.00 00000057
.1181 3.000 mm .787 20.00 mm (5x) 4 mm 63 mm DDA1181-C4 $59.40 00000058
.1181 3.000 mm 1.142 29.00 mm (8x) 4 mm 63 mm AWS1181-C4 $60.90 00000059
DRILL
DIAMETER
FLUTE
LENGTH
SHANK
DIAMETER
OVERALL
LENGTH
AMORPHOUS DIAMOND COATED Add to Cart Default Sort
     D1
+.000mm-.013mm
L2
+.75mm-.00mm
# . D2(h6) L1 2 FL PRICE
.1200 #31 3.048 mm .827 21.00 mm (5x) 6 mm 63 mm DDA1200-C4 $70.20 00000001
.1250 (1/8) 3.175 mm .590 15.00 mm (3x) 6 mm 63 mm BAA1250-C4 $69.00 00000002
.1250 (1/8) 3.175 mm .827 21.00 mm (5x) 6 mm 63 mm DDA1250-C4 $70.20 00000003
.1250 (1/8) 3.175 mm 1.220 31.00 mm (8x) 6 mm 75 mm AWS1250-C4 $72.10 00000004
.1285 #30 3.263 mm .866 22.00 mm (5x) 6 mm 63 mm DDA1285-C4 $70.20 00000005
.1360 #29 3.454 mm .906 23.00 mm (5x) 6 mm 63 mm DDA1360-C4 $70.20 00000006
.1406 (9/64) 3.571 mm .945 24.00 mm (5x) 6 mm 75 mm DDA1406-C4 $70.20 00000007
.1470 #26 3.733 mm 1.024 26.00 mm (5x) 6 mm 75 mm DDA1470-C4 $70.20 00000008
.1562 (5/32) 3.968 mm 1.024 26.00 mm (5x) 6 mm 75 mm DDA1562-C4 $70.20 00000009
.1574 4.000 mm 1.102 28.00 mm (5x) 6 mm 75 mm DDA1574-C4 $70.20 00000010
.1590 #21 4.038 mm 1.102 28.00 mm (5x) 6 mm 75 mm DDA1590-C4 $70.20 00000011
.1718 (11/64) 4.365 mm 1.181 30.00 mm (5x) 6 mm 75 mm DDA1718-C4 $70.20 00000012
.1770 #16 4.495 mm 1.181 30.00 mm (5x) 6 mm 75 mm DDA1770-C4 $70.20 00000013
.1800 #15 4.572 mm 1.181 30.00 mm (5x) 6 mm 75 mm DDA1800-C4 $70.20 00000014
.1875 (3/16) 4.762 mm 1.260 32.00 mm (5x) 6 mm 75 mm DDA1875-C4 $70.20 00000015
.1875 (3/16) 4.762 mm 1.811 46.00 mm (8x) 6 mm 100 mm AWS1875-C4 $72.10 00000016
.1968 5.000 mm 1.339 34.00 mm (5x) 6 mm 75 mm DDA1968-C4 $70.20 00000017
.2009 #7 5.105 mm 1.339 34.00 mm (5x) 6 mm 75 mm DDA2009-C4 $70.20 00000018
.2031 (13/64) 5.159 mm 1.339 34.00 mm (5x) 6 mm 75 mm DDA2031-C4 $70.20 00000019
.2129 #3 5.410 mm 1.417 36.00 mm (5x) 6 mm 75 mm DDA2129-C4 $70.20 00000020
.2187 (7/32) 5.556 mm 1.496 38.00 mm (5x) 6 mm 100 mm DDA2187-C4 $70.20 00000021
.2343 (15/64) 5.953 mm 1.575 40.00 mm (5x) 6 mm 100 mm DDA2343-C4 $70.20 00000022
.2362 6.000 mm 1.575 40.00 mm (5x) 6 mm 100 mm DDA2362-C4 $70.20 00000023
.2500 (1/4) E 6.350 mm 1.181 30.00 mm (3x) 8 mm 75 mm BAA2500-C4 $69.00 00000024
.2500 (1/4) E 6.350 mm 1.654 42.00 mm (5x) 8 mm 100 mm DDA2500-C4 $70.20 00000025
.2500 (1/4) E 6.350 mm 2.441 62.00 mm (8x) 8 mm 125 mm AWS2500-C4 $72.10 00000026
