Miniature High Performance Drills - Prehardened Steels

Holemaking & Threading
Miniature High Performance Drills - Prehardened Steels

Holemaking & Threading

This Harvey Tool product selection features a 140° point angle and a specialized flute shape for improved chip evacuation and maximum rigidity, and is fully stocked and ready to ship same day with AlTiN coating for improved lubricity and heat resistance.

  • 140° point angle

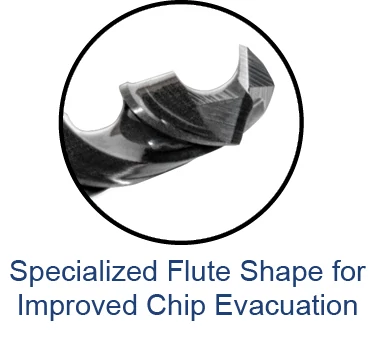

  • Specialized flute shape for improved chip evacuation and maximum rigidity
  • AlTiN coated for improved lubricity and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Solid carbide
  • CNC ground in the USA

Advanced Search

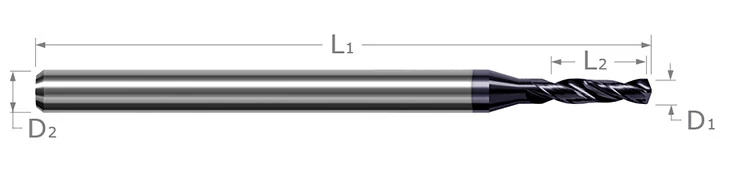

DRILL
DIAMETER		 FLUTE
LENGTH		 SHANK
DIAMETER		 OVERALL
LENGTH		 AlTiN COATED Add to Cart Default Sort
inch wire mm
D1 +.000mm/-.013mm		 inch mm
L2 +.25mm/-.00mm		 hole depth D2 (h6) L1 2 FL PRICE
.0078 .200 mm .037 .95 mm (3x) 3 mm 50 mm DHE0078-C3 $41.00 00000001
.0078 .200 mm .053 1.35 mm (5x) 3 mm 50 mm BVT0078-C3 $42.20 00000002
.0079 .201 mm .053 1.35 mm (5x) 3 mm 50 mm BVT0079-C3 $42.20 00000003
.0083 #91 .210 mm .039 1.00 mm (3x) 3 mm 50 mm DHE0083-C3 $41.00 00000004
.0083 #91 .210 mm .055 1.40 mm (5x) 3 mm 50 mm BVT0083-C3 $42.20 00000005
.0087 #90 .221 mm .041 1.05 mm (3x) 3 mm 50 mm DHE0087-C3 $41.00 00000006
.0087 #90 .221 mm .059 1.50 mm (5x) 3 mm 50 mm BVT0087-C3 $42.20 00000007
.0091 #89 .231 mm .043 1.10 mm (3x) 3 mm 50 mm DHE0091-C3 $41.00 00000008
.0091 #89 .231 mm .061 1.55 mm (5x) 3 mm 50 mm BVT0091-C3 $42.20 00000009
.0095 #88 .241 mm .045 1.15 mm (3x) 3 mm 50 mm DHE0095-C3 $41.00 00000010
.0095 #88 .241 mm .065 1.65 mm (5x) 3 mm 50 mm BVT0095-C3 $42.20 00000011
.0100 #87 .254 mm .047 1.20 mm (3x) 3 mm 50 mm DHE0100-C3 $40.00 00000012
.0100 #87 .254 mm .067 1.70 mm (5x) 3 mm 50 mm BVT0100-C3 $41.00 00000013
.0100 #87 .254 mm .098 2.50 mm (8x) 3 mm 50 mm ADS0100-C3 $44.00 00000014
.0100 #87 .254 mm .118 3.00 mm (10x) 3 mm 50 mm EXP0100-C3 $45.40 00000015
.0100 #87 .254 mm .138 3.50 mm (12x) 3 mm 50 mm CHT0100-C3 $47.00 00000016
.0105 #86 .266 mm .049 1.25 mm (3x) 3 mm 50 mm DHE0105-C3 $40.00 00000017
.0105 #86 .266 mm .071 1.80 mm (5x) 3 mm 50 mm BVT0105-C3 $41.00 00000018
.0105 #86 .266 mm .102 2.60 mm (8x) 3 mm 50 mm ADS0105-C3 $44.00 00000019
.0105 #86 .266 mm .146 3.70 mm (12x) 3 mm 50 mm CHT0105-C3 $47.00 00000020
.0110 #85 .279 mm .053 1.35 mm (3x) 3 mm 50 mm DHE0110-C3 $40.00 00000021
.0110 #85 .279 mm .075 1.90 mm (5x) 3 mm 50 mm BVT0110-C3 $41.00 00000022
.0110 #85 .279 mm .106 2.70 mm (8x) 3 mm 50 mm ADS0110-C3 $44.00 00000023
.0110 #85 .279 mm .130 3.30 mm (10x) 3 mm 50 mm EXP0110-C3 $45.40 00000024
.0110 #85 .279 mm .150 3.80 mm (12x) 3 mm 50 mm CHT0110-C3 $47.00 00000025
.0115 #84 .292 mm .055 1.40 mm (3x) 3 mm 50 mm DHE0115-C3 $40.00 00000026
.0115 #84 .292 mm .079 2.00 mm (5x) 3 mm 50 mm BVT0115-C3 $41.00 00000027
.0115 #84 .292 mm .110 2.80 mm (8x) 3 mm 50 mm ADS0115-C3 $44.00 00000028
.0115 #84 .292 mm .157 4.00 mm (12x) 3 mm 50 mm CHT0115-C3 $47.00 00000029
.0118 .300 mm .079 2.00 mm (5x) 3 mm 50 mm BVT0118-C3 $41.00 00000030
.0118 .300 mm .161 4.10 mm (12x) 3 mm 50 mm CHT0118-C3 $47.00 00000031
.0120 #83 .304 mm .057 1.45 mm (3x) 3 mm 50 mm DHE0120-C3 $40.00 00000032
.0120 #83 .304 mm .083 2.10 mm (5x) 3 mm 50 mm BVT0120-C3 $41.00 00000033
.0120 #83 .304 mm .118 3.00 mm (8x) 3 mm 50 mm ADS0120-C3 $44.00 00000034
.0120 #83 .304 mm .142 3.60 mm (10x) 3 mm 50 mm EXP0120-C3 $45.40 00000035
.0120 #83 .304 mm .165 4.20 mm (12x) 3 mm 50 mm CHT0120-C3 $47.00 00000036
.0125 #82 .317 mm .059 1.50 mm (3x) 3 mm 50 mm DHE0125-C3 $40.00 00000037
.0125 #82 .317 mm .083 2.10 mm (5x) 3 mm 50 mm BVT0125-C3 $41.00 00000038
.0125 #82 .317 mm .122 3.10 mm (8x) 3 mm 50 mm ADS0125-C3 $44.00 00000039
.0125 #82 .317 mm .173 4.40 mm (12x) 3 mm 50 mm CHT0125-C3 $47.00 00000040
.0130 #81 .330 mm .061 1.55 mm (3x) 3 mm 50 mm DHE0130-C3 $40.00 00000041
.0130 #81 .330 mm .087 2.20 mm (5x) 3 mm 50 mm BVT0130-C3 $41.00 00000042
.0130 #81 .330 mm .126 3.20 mm (8x) 3 mm 50 mm ADS0130-C3 $44.00 00000043
.0130 #81 .330 mm .154 3.90 mm (10x) 3 mm 50 mm EXP0130-C3 $45.40 00000044
.0130 #81 .330 mm .177 4.50 mm (12x) 3 mm 50 mm CHT0130-C3 $47.00 00000045
.0135 #80 .342 mm .065 1.65 mm (3x) 3 mm 50 mm DHE0135-C3 $40.00 00000046
.0135 #80 .342 mm .091 2.30 mm (5x) 3 mm 50 mm BVT0135-C3 $41.00 00000047
.0135 #80 .342 mm .130 3.30 mm (8x) 3 mm 50 mm ADS0135-C3 $44.00 00000048
.0135 #80 .342 mm .185 4.70 mm (12x) 3 mm 50 mm CHT0135-C3 $47.00 00000049
.0140 .355 mm .067 1.70 mm (3x) 3 mm 50 mm DHE0140-C3 $40.00 00000050
.0140 .355 mm .094 2.40 mm (5x) 3 mm 50 mm BVT0140-C3 $41.00 00000051
.0140 .355 mm .138 3.50 mm (8x) 3 mm 50 mm ADS0140-C3 $44.00 00000052
.0140 .355 mm .193 4.90 mm (12x) 3 mm 50 mm CHT0140-C3 $47.00 00000053
.0144 #79 .368 mm .069 1.75 mm (3x) 3 mm 50 mm DHE0144-C3 $40.00 00000054
.0144 #79 .368 mm .098 2.50 mm (5x) 3 mm 50 mm BVT0144-C3 $41.00 00000055
.0144 #79 .368 mm .142 3.60 mm (8x) 3 mm 50 mm ADS0144-C3 $44.00 00000056
.0144 #79 .368 mm .169 4.30 mm (10x) 3 mm 50 mm EXP0144-C3 $45.40 00000057
.0144 #79 .368 mm .197 5.00 mm (12x) 3 mm 50 mm CHT0144-C3 $47.00 00000058
.0150 .381 mm .071 1.80 mm (3x) 3 mm 50 mm DHE0150-C3 $40.00 00000059
.0150 .381 mm .102 2.60 mm (5x) 3 mm 50 mm BVT0150-C3 $41.00 00000060
.0150 .381 mm .146 3.70 mm (8x) 3 mm 50 mm ADS0150-C3 $44.00 00000061
.0150 .381 mm .205 5.20 mm (12x) 3 mm 50 mm CHT0150-C3 $47.00 00000062
.0156 (1/64) .396 mm .075 1.90 mm (3x) 3 mm 50 mm DHE0156-C3 $40.00 00000063
.0156 (1/64) .396 mm .106 2.70 mm (5x) 3 mm 50 mm BVT0156-C3 $41.00 00000064
.0156 (1/64) .396 mm .154 3.90 mm (8x) 3 mm 50 mm ADS0156-C3 $44.00 00000065
.0156 (1/64) .396 mm .185 4.70 mm (10x) 3 mm 50 mm EXP0156-C3 $45.40 00000066
.0156 (1/64) .396 mm .213 5.40 mm (12x) 3 mm 50 mm CHT0156-C3 $47.00 00000067
.0157 .400 mm .106 2.70 mm (5x) 3 mm 50 mm BVT0157-C3 $41.00 00000068
.0157 .400 mm .220 5.60 mm (12x) 3 mm 50 mm CHT0157-C3 $47.00 00000069
.0160 #78 .406 mm .079 2.00 mm (3x) 3 mm 50 mm DHE0160-C3 $40.00 00000070
.0160 #78 .406 mm .106 2.70 mm (5x) 3 mm 50 mm BVT0160-C3 $41.00 00000071
.0160 #78 .406 mm .157 4.00 mm (8x) 3 mm 50 mm ADS0160-C3 $44.00 00000072
.0160 #78 .406 mm .189 4.80 mm (10x) 3 mm 50 mm EXP0160-C3 $45.40 00000073
.0160 #78 .406 mm .220 5.60 mm (12x) 3 mm 50 mm CHT0160-C3 $47.00 00000074
.0170 .431 mm .083 2.10 mm (3x) 3 mm 50 mm DHE0170-C3 $40.00 00000075
.0170 .431 mm .114 2.90 mm (5x) 3 mm 50 mm BVT0170-C3 $41.00 00000076
.0170 .431 mm .165 4.20 mm (8x) 3 mm 50 mm ADS0170-C3 $44.00 00000077
.0170 .431 mm .236 6.00 mm (12x) 3 mm 50 mm CHT0170-C3 $47.00 00000078
.0180 #77 .457 mm .087 2.20 mm (3x) 3 mm 50 mm DHE0180-C3 $40.00 00000079
.0180 #77 .457 mm .122 3.10 mm (5x) 3 mm 50 mm BVT0180-C3 $41.00 00000080
.0180 #77 .457 mm .177 4.50 mm (8x) 3 mm 50 mm ADS0180-C3 $44.40 00000081
.0180 #77 .457 mm .213 5.40 mm (10x) 3 mm 50 mm EXP0180-C3 $45.40 00000082
.0180 #77 .457 mm .244 6.20 mm (12x) 3 mm 50 mm CHT0180-C3 $47.00 00000083
.0190 .482 mm .091 2.30 mm (3x) 3 mm 50 mm DHE0190-C3 $40.00 00000084
.0190 .482 mm .130 3.30 mm (5x) 3 mm 50 mm BVT0190-C3 $41.00 00000085
.0190 .482 mm .185 4.70 mm (8x) 3 mm 50 mm ADS0190-C3 $44.00 00000086
.0190 .482 mm .260 6.60 mm (12x) 3 mm 50 mm CHT0190-C3 $47.00 00000087
.0196 .500 mm .094 2.40 mm (3x) 3 mm 50 mm DHE0196-C3 $39.50 00000088
.0196 .500 mm .134 3.40 mm (5x) 3 mm 50 mm BVT0196-C3 $40.40 00000089
.0196 .500 mm .193 4.90 mm (8x) 3 mm 50 mm ADS0196-C3 $44.40 00000090
.0196 .500 mm .228 5.80 mm (10x) 3 mm 50 mm EXP0196-C3 $45.60 00000091
.0196 .500 mm .268 6.80 mm (12x) 3 mm 50 mm CHT0196-C3 $45.90 00000092
.0200 #76 .508 mm .094 2.40 mm (3x) 3 mm 50 mm DHE0200-C3 $39.50 00000093
.0200 #76 .508 mm .134 3.40 mm (5x) 3 mm 50 mm BVT0200-C3 $40.40 00000094
.0200 #76 .508 mm .197 5.00 mm (8x) 3 mm 50 mm ADS0200-C3 $44.40 00000095
.0200 #76 .508 mm .228 6.00 mm (10x) 3 mm 50 mm EXP0200-C3 $45.60 00000096
.0200 #76 .508 mm .276 7.00 mm (12x) 3 mm 50 mm CHT0200-C3 $45.90 00000097
.0210 #75 .533 mm .098 2.50 mm (3x) 3 mm 50 mm DHE0210-C3 $39.50 00000098
.0210 #75 .533 mm .142 3.60 mm (5x) 3 mm 50 mm BVT0210-C3 $40.40 00000099
.0210 #75 .533 mm .205 5.20 mm (8x) 3 mm 50 mm ADS0210-C3 $44.40 00000100
.0210 #75 .533 mm .244 6.20 mm (10x) 3 mm 50 mm EXP0210-C3 $45.60 00000101
.0210 #75 .533 mm .291 7.40 mm (12x) 3 mm 50 mm CHT0210-C3 $45.90 00000102
.0220 .558 mm .106 2.70 mm (3x) 3 mm 50 mm DHE0220-C3 $39.50 00000103
.0220 .558 mm .150 3.80 mm (5x) 3 mm 50 mm BVT0220-C3 $40.40 00000104
.0220 .558 mm .213 5.40 mm (8x) 3 mm 50 mm ADS0220-C3 $44.40 00000105
.0220 .558 mm .299 7.60 mm (12x) 3 mm 50 mm CHT0220-C3 $45.90 00000106
.0225 #74 .571 mm .106 2.70 mm (3x) 3 mm 50 mm DHE0225-C3 $39.50 00000107
.0225 #74 .571 mm .154 3.90 mm (5x) 3 mm 50 mm BVT0225-C3 $40.40 00000108
.0225 #74 .571 mm .220 5.60 mm (8x) 3 mm 50 mm ADS0225-C3 $44.40 00000109
.0225 #74 .571 mm .268 6.80 mm (10x) 3 mm 50 mm EXP0225-C3 $45.60 00000110
.0225 #74 .571 mm .307 7.80 mm (12x) 3 mm 50 mm CHT0225-C3 $45.90 00000111
.0230 .584 mm .110 2.80 mm (3x) 3 mm 50 mm DHE0230-C3 $39.50 00000112
.0230 .584 mm .154 3.90 mm (5x) 3 mm 50 mm BVT0230-C3 $40.40 00000113
.0230 .584 mm .220 5.60 mm (8x) 3 mm 50 mm ADS0230-C3 $44.40 00000114
.0230 .584 mm .315 8.00 mm (12x) 3 mm 50 mm CHT0230-C3 $45.90 00000115
.0236 .600 mm .157 4.00 mm (5x) 3 mm 50 mm BVT0236-C3 $40.40 00000116
.0236 .600 mm .323 8.20 mm (12x) 3 mm 50 mm CHT0236-C3 $45.90 00000117
.0240 #73 .609 mm .114 2.90 mm (3x) 3 mm 50 mm DHE0240-C3 $39.50 00000118
.0240 #73 .609 mm .165 4.20 mm (5x) 3 mm 50 mm BVT0240-C3 $40.40 00000119
.0240 #73 .609 mm .236 6.00 mm (8x) 3 mm 50 mm ADS0240-C3 $44.40 00000120
.0240 #73 .609 mm .283 7.20 mm (10x) 3 mm 50 mm EXP0240-C3 $45.60 00000121
.0240 #73 .609 mm .331 8.40 mm (12x) 3 mm 50 mm CHT0240-C3 $45.90 00000122
.0250 #72 .635 mm .118 3.00 mm (3x) 3 mm 50 mm DHE0250-C3 $39.50 00000123
.0250 #72 .635 mm .165 4.20 mm (5x) 3 mm 50 mm BVT0250-C3 $40.40 00000124
.0250 #72 .635 mm .244 6.20 mm (8x) 3 mm 50 mm ADS0250-C3 $44.40 00000125
.0250 #72 .635 mm .291 7.40 mm (10x) 3 mm 50 mm EXP0250-C3 $45.60 00000126
.0250 #72 .635 mm .346 8.80 mm (12x) 3 mm 50 mm CHT0250-C3 $45.90 00000127
.0260 #71 .660 mm .122 3.10 mm (3x) 3 mm 50 mm DHE0260-C3 $39.50 00000128
.0260 #71 .660 mm .173 4.40 mm (5x) 3 mm 50 mm BVT0260-C3 $40.40 00000129
.0260 #71 .660 mm .252 6.40 mm (8x) 3 mm 50 mm ADS0260-C3 $44.40 00000130
.0260 #71 .660 mm .307 7.80 mm (10x) 3 mm 50 mm EXP0260-C3 $45.60 00000131
.0260 #71 .660 mm .354 9.00 mm (12x) 3 mm 50 mm CHT0260-C3 $45.90 00000132
.0270 .685 mm .130 3.30 mm (3x) 3 mm 50 mm DHE0270-C3 $39.50 00000133
.0270 .685 mm .181 4.60 mm (5x) 3 mm 50 mm BVT0270-C3 $40.40 00000134
.0270 .685 mm .260 6.60 mm (8x) 3 mm 50 mm ADS0270-C3 $44.40 00000135
.0270 .685 mm .370 9.40 mm (12x) 3 mm 50 mm CHT0270-C3 $45.90 00000136
.0275 .700 mm .189 4.80 mm (5x) 3 mm 50 mm BVT0275-C3 $40.40 00000137
.0275 .700 mm .378 9.60 mm (12x) 3 mm 50 mm CHT0275-C3 $45.90 00000138
.0280 #70 .711 mm .134 3.40 mm (3x) 3 mm 50 mm DHE0280-C3 $39.50 00000139
.0280 #70 .711 mm .189 4.80 mm (5x) 3 mm 50 mm BVT0280-C3 $40.40 00000140
.0280 #70 .711 mm .276 7.00 mm (8x) 3 mm 50 mm ADS0280-C3 $44.40 00000141
.0280 #70 .711 mm .331 8.40 mm (10x) 3 mm 50 mm EXP0280-C3 $45.60 00000142
.0280 #70 .711 mm .386 9.80 mm (12x) 3 mm 50 mm CHT0280-C3 $45.90 00000143
.0292 #69 .741 mm .138 3.50 mm (3x) 3 mm 50 mm DHE0292-C3 $39.50 00000144
.0292 #69 .741 mm .197 5.00 mm (5x) 3 mm 50 mm BVT0292-C3 $40.40 00000145
.0292 #69 .741 mm .283 7.20 mm (8x) 3 mm 50 mm ADS0292-C3 $44.40 00000146
.0292 #69 .741 mm .346 8.80 mm (10x) 3 mm 50 mm EXP0292-C3 $45.60 00000147
.0292 #69 .741 mm .394 10.00 mm (12x) 3 mm 50 mm CHT0292-C3 $45.90 00000148
.0300 .762 mm .142 3.60 mm (3x) 3 mm 50 mm DHE0300-C3 $39.50 00000149
.0300 .762 mm .205 5.20 mm (5x) 3 mm 50 mm BVT0300-C3 $40.40 00000150
.0300 .762 mm .291 7.40 mm (8x) 3 mm 50 mm ADS0300-C3 $44.40 00000151
.0300 .762 mm .413 10.50 mm (12x) 3 mm 50 mm CHT0300-C3 $45.90 00000152
.0310 #68 .787 mm .146 3.70 mm (3x) 3 mm 50 mm DHE0310-C3 $40.00 00000153
.0310 #68 .787 mm .213 5.40 mm (5x) 3 mm 50 mm BVT0310-C3 $40.80 00000154
.0310 #68 .787 mm .299 7.60 mm (8x) 3 mm 50 mm ADS0310-C3 $44.40 00000155
.0310 #68 .787 mm .362 9.20 mm (10x) 3 mm 50 mm EXP0310-C3 $45.60 00000156
.0310 #68 .787 mm .433 11.00 mm (12x) 3 mm 50 mm CHT0310-C3 $47.10 00000157
.0312 (1/32) .793 mm .150 3.80 mm (3x) 3 mm 50 mm DHE0312-C3 $40.00 00000158
.0312 (1/32) .793 mm .213 5.40 mm (5x) 3 mm 50 mm BVT0312-C3 $40.80 00000159
.0312 (1/32) .793 mm .307 7.80 mm (8x) 3 mm 50 mm ADS0312-C3 $44.40 00000160
.0312 (1/32) .793 mm .370 9.40 mm (10x) 3 mm 50 mm EXP0312-C3 $45.60 00000161
.0312 (1/32) .793 mm .433 11.00 mm (12x) 3 mm 50 mm CHT0312-C3 $47.10 00000162
.0315 .800 mm .213 5.40 mm (5x) 3 mm 50 mm BVT0315-C3 $40.80 00000163
.0315 .800 mm .433 11.00 mm (12x) 3 mm 50 mm CHT0315-C3 $47.10 00000164
.0320 #67 .812 mm .154 3.90 mm (3x) 3 mm 50 mm DHE0320-C3 $40.00 00000165
.0320 #67 .812 mm .213 5.40 mm (5x) 3 mm 50 mm BVT0320-C3 $40.80 00000166
.0320 #67 .812 mm .315 8.00 mm (8x) 3 mm 50 mm ADS0320-C3 $44.40 00000167
.0320 #67 .812 mm .378 9.60 mm (10x) 3 mm 50 mm EXP0320-C3 $45.60 00000168
.0320 #67 .812 mm .433 11.00 mm (12x) 3 mm 50 mm CHT0320-C3 $47.10 00000169
.0330 #66 .838 mm .157 4.00 mm (3x) 3 mm 50 mm DHE0330-C3 $40.00 00000170
.0330 #66 .838 mm .220 5.60 mm (5x) 3 mm 50 mm BVT0330-C3 $40.80 00000171
.0330 #66 .838 mm .323 8.20 mm (8x) 3 mm 50 mm ADS0330-C3 $44.40 00000172
.0330 #66 .838 mm .386 9.80 mm (10x) 3 mm 50 mm EXP0330-C3 $45.60 00000173
.0330 #66 .838 mm .453 11.50 mm (12x) 3 mm 50 mm CHT0330-C3 $47.10 00000174
.0350 #65 .889 mm .165 4.20 mm (3x) 3 mm 50 mm DHE0350-C3 $40.00 00000175
.0350 #65 .889 mm .236 6.00 mm (5x) 3 mm 50 mm BVT0350-C3 $40.80 00000176
.0350 #65 .889 mm .339 8.60 mm (8x) 3 mm 50 mm ADS0350-C3 $44.40 00000177
.0350 #65 .889 mm .413 10.50 mm (10x) 3 mm 50 mm EXP0350-C3 $45.60 00000178
.0350 #65 .889 mm .472 12.00 mm (12x) 3 mm 50 mm CHT0350-C3 $47.10 00000179
.0354 .900 mm .236 6.00 mm (5x) 3 mm 50 mm BVT0354-C3 $38.90 00000180
.0354 .900 mm .492 12.50 mm (12x) 3 mm 50 mm CHT0354-C3 $47.10 00000181
.0360 #64 .914 mm .173 4.40 mm (3x) 3 mm 50 mm DHE0360-C3 $40.00 00000182
.0360 #64 .914 mm .244 6.20 mm (5x) 3 mm 50 mm BVT0360-C3 $40.80 00000183
.0360 #64 .914 mm .354 9.00 mm (8x) 3 mm 50 mm ADS0360-C3 $44.40 00000184
.0360 #64 .914 mm .413 10.50 mm (10x) 3 mm 50 mm EXP0360-C3 $45.60 00000185
.0360 #64 .914 mm .492 12.50 mm (12x) 3 mm 50 mm CHT0360-C3 $47.10 00000186
.0370 #63 .939 mm .173 4.40 mm (3x) 3 mm 50 mm DHE0370-C3 $40.00 00000187
.0370 #63 .939 mm .252 6.40 mm (5x) 3 mm 50 mm BVT0370-C3 $40.80 00000188
.0370 #63 .939 mm .362 9.20 mm (8x) 3 mm 50 mm ADS0370-C3 $44.40 00000189
.0370 #63 .939 mm .433 11.00 mm (10x) 3 mm 50 mm EXP0370-C3 $45.60 00000190
.0370 #63 .939 mm .512 13.00 mm (12x) 3 mm 50 mm CHT0370-C3 $47.10 00000191
.0380 #62 .965 mm .181 4.60 mm (3x) 3 mm 50 mm DHE0380-C3 $40.00 00000192
.0380 #62 .965 mm .260 6.60 mm (5x) 3 mm 50 mm BVT0380-C3 $40.80 00000193
.0380 #62 .965 mm .370 9.40 mm (8x) 3 mm 50 mm ADS0380-C3 $44.40 00000194
.0380 #62 .965 mm .453 11.50 mm (10x) 3 mm 50 mm EXP0380-C3 $45.60 00000195
.0380 #62 .965 mm .531 13.50 mm (12x) 3 mm 50 mm CHT0380-C3 $47.10 00000196
.0390 #61 .990 mm .189 4.80 mm (3x) 3 mm 50 mm DHE0390-C3 $40.00 00000197
.0390 #61 .990 mm .260 6.60 mm (5x) 3 mm 50 mm BVT0390-C3 $40.80 00000198
.0390 #61 .990 mm .378 9.60 mm (8x) 3 mm 50 mm ADS0390-C3 $44.40 00000199
.0390 #61 .990 mm .453 11.50 mm (10x) 3 mm 50 mm EXP0390-C3 $45.60 00000200
.0390 #61 .990 mm .531 13.50 mm (12x) 3 mm 50 mm CHT0390-C3 $47.10 00000201
.0393 1.000 mm .189 4.80 mm (3x) 3 mm 50 mm DHE0393-C3 $43.70 00000202
.0393 1.000 mm .268 6.80 mm (5x) 3 mm 50 mm BVT0393-C3 $44.80 00000203
.0393 1.000 mm .386 9.80 mm (8x) 3 mm 50 mm ADS0393-C3 $47.50 00000204
.0393 1.000 mm .472 12.00 mm (10x) 3 mm 50 mm EXP0393-C3 $48.90 00000205
.0393 1.000 mm .551 14.00 mm (12x) 3 mm 50 mm CHT0393-C3 $50.40 00000206
.0400 #60 1.016 mm .189 4.80 mm (3x) 3 mm 50 mm DHE0400-C3 $43.70 00000207
.0400 #60 1.016 mm .268 6.80 mm (5x) 3 mm 50 mm BVT0400-C3 $44.80 00000208
.0400 #60 1.016 mm .394 10.00 mm (8x) 3 mm 50 mm ADS0400-C3 $47.50 00000209
.0400 #60 1.016 mm .472 12.00 mm (10x) 3 mm 50 mm EXP0400-C3 $48.90 00000210
.0400 #60 1.016 mm .551 14.00 mm (12x) 3 mm 50 mm CHT0400-C3 $50.40 00000211
.0410 #59 1.041 mm .197 5.00 mm (3x) 3 mm 50 mm DHE0410-C3 $43.70 00000212
.0410 #59 1.041 mm .276 7.00 mm (5x) 3 mm 50 mm BVT0410-C3 $44.80 00000213
.0410 #59 1.041 mm .394 10.00 mm (8x) 3 mm 50 mm ADS0410-C3 $47.50 00000214
.0410 #59 1.041 mm .472 12.00 mm (10x) 3 mm 50 mm EXP0410-C3 $48.90 00000215
.0410 #59 1.041 mm .571 14.50 mm (12x) 3 mm 50 mm CHT0410-C3 $50.40 00000216
.0420 #58 1.066 mm .197 5.00 mm (3x) 3 mm 50 mm DHE0420-C3 $43.70 00000217
.0420 #58 1.066 mm .283 7.20 mm (5x) 3 mm 50 mm BVT0420-C3 $44.80 00000218
.0420 #58 1.066 mm .413 10.50 mm (8x) 3 mm 50 mm ADS0420-C3 $47.50 00000219
.0420 #58 1.066 mm .492 12.50 mm (10x) 3 mm 50 mm EXP0420-C3 $48.90 00000220
.0420 #58 1.066 mm .571 14.50 mm (12x) 3 mm 50 mm CHT0420-C3 $50.40 00000221
.0430 #57 1.092 mm .205 5.20 mm (3x) 3 mm 50 mm DHE0430-C3 $43.70 00000222
.0430 #57 1.092 mm .291 7.40 mm (5x) 3 mm 50 mm BVT0430-C3 $44.80 00000223
.0430 #57 1.092 mm .413 10.50 mm (8x) 3 mm 50 mm ADS0430-C3 $47.50 00000224
.0430 #57 1.092 mm .512 13.00 mm (10x) 3 mm 50 mm EXP0430-C3 $48.90 00000225
.0430 #57 1.092 mm .591 15.00 mm (12x) 3 mm 50 mm CHT0430-C3 $50.40 00000226
.0450 1.143 mm .307 7.80 mm (5x) 3 mm 50 mm BVT0450-C3 $44.80 00000227
.0450 1.143 mm .610 15.50 mm (12x) 3 mm 50 mm CHT0450-C3 $50.40 00000228
.0465 #56 1.181 mm .220 5.60 mm (3x) 3 mm 50 mm DHE0465-C3 $43.70 00000229
.0465 #56 1.181 mm .315 8.00 mm (5x) 3 mm 50 mm BVT0465-C3 $44.80 00000230
.0465 #56 1.181 mm .453 11.50 mm (8x) 3 mm 50 mm ADS0465-C3 $47.50 00000231
.0465 #56 1.181 mm .551 14.00 mm (10x) 3 mm 50 mm EXP0465-C3 $48.90 00000232
.0465 #56 1.181 mm .630 16.00 mm (12x) 3 mm 63 mm CHT0465-C3 $50.40 00000233
.0468 (3/64) 1.190 mm .220 5.60 mm (3x) 3 mm 50 mm DHE0468-C3 $43.70 00000234
.0468 (3/64) 1.190 mm .315 8.00 mm (5x) 3 mm 50 mm BVT0468-C3 $44.80 00000235
.0468 (3/64) 1.190 mm .453 11.50 mm (8x) 3 mm 50 mm ADS0468-C3 $47.50 00000236
.0468 (3/64) 1.190 mm .551 14.00 mm (10x) 3 mm 50 mm EXP0468-C3 $48.90 00000237
.0468 (3/64) 1.190 mm .650 16.50 mm (12x) 3 mm 63 mm CHT0468-C3 $50.40 00000238
.0492 1.250 mm .335 8.50 mm (5x) 3 mm 50 mm BVT0492-C3 $44.80 00000239
.0492 1.250 mm .669 17.00 mm (12x) 3 mm 63 mm CHT0492-C3 $50.40 00000240
.0500 1.270 mm .236 6.00 mm (3x) 3 mm 50 mm DHE0500-C3 $43.70 00000241
.0500 1.270 mm .335 8.50 mm (5x) 3 mm 50 mm BVT0500-C3 $44.80 00000242
.0500 1.270 mm .492 12.50 mm (8x) 3 mm 50 mm ADS0500-C3 $47.50 00000243
.0500 1.270 mm .591 15.00 mm (10x) 3 mm 50 mm EXP0500-C3 $48.90 00000244
.0500 1.270 mm .689 17.50 mm (12x) 3 mm 63 mm CHT0500-C3 $50.40 00000245
.0520 #55 1.320 mm .244 6.20 mm (3x) 3 mm 50 mm DHE0520-C3 $43.70 00000246
.0520 #55 1.320 mm .354 9.00 mm (5x) 3 mm 50 mm BVT0520-C3 $44.80 00000247
.0520 #55 1.320 mm .512 13.00 mm (8x) 3 mm 50 mm ADS0520-C3 $47.50 00000248
.0520 #55 1.320 mm .610 15.50 mm (10x) 3 mm 50 mm EXP0520-C3 $48.90 00000249
.0520 #55 1.320 mm .709 18.00 mm (12x) 3 mm 63 mm CHT0520-C3 $50.40 00000250
.0550 #54 1.397 mm .260 6.60 mm (3x) 3 mm 50 mm DHE0550-C3 $43.70 00000251
.0550 #54 1.397 mm .374 9.50 mm (5x) 3 mm 50 mm BVT0550-C3 $44.80 00000252
.0550 #54 1.397 mm .531 13.50 mm (8x) 3 mm 50 mm ADS0550-C3 $47.50 00000253
.0550 #54 1.397 mm .650 16.50 mm (10x) 3 mm 63 mm EXP0550-C3 $48.90 00000254
.0550 #54 1.397 mm .748 19.00 mm (12x) 3 mm 63 mm CHT0550-C3 $50.40 00000255
.0590 1.500 mm .283 7.20 mm (3x) 3 mm 50 mm DHE0590-C3 $47.40 00000256
.0590 1.500 mm .394 10.00 mm (5x) 3 mm 50 mm BVT0590-C3 $48.20 00000257
.0590 1.500 mm .571 14.50 mm (8x) 3 mm 50 mm ADS0590-C3 $51.00 00000258
.0590 1.500 mm .689 17.50 mm (10x) 3 mm 63 mm EXP0590-C3 $52.50 00000259
.0590 1.500 mm .827 21.00 mm (12x) 3 mm 63 mm CHT0590-C3 $54.00 00000260
.0595 #53 1.511 mm .283 7.20 mm (3x) 3 mm 50 mm DHE0595-C3 $47.40 00000261
.0595 #53 1.511 mm .394 10.00 mm (5x) 3 mm 50 mm BVT0595-C3 $48.20 00000262
.0595 #53 1.511 mm .571 14.50 mm (8x) 3 mm 50 mm ADS0595-C3 $51.00 00000263
.0595 #53 1.511 mm .709 18.00 mm (10x) 3 mm 63 mm EXP0595-C3 $52.50 00000264
.0595 #53 1.511 mm .827 21.00 mm (12x) 3 mm 63 mm CHT0595-C3 $54.00 00000265
.0600 1.524 mm .413 10.50 mm (5x) 3 mm 50 mm BVT0600-C3 $48.20 00000266
.0600 1.524 mm .827 21.00 mm (12x) 3 mm 63 mm CHT0600-C3 $54.00 00000267
.0625 (1/16) 1.587 mm .299 7.60 mm (3x) 3 mm 50 mm DHE0625-C3 $47.40 00000268
.0625 (1/16) 1.587 mm .413 10.50 mm (5x) 3 mm 50 mm BVT0625-C3 $48.20 00000269
.0625 (1/16) 1.587 mm .610 15.50 mm (8x) 3 mm 50 mm ADS0625-C3 $51.00 00000270
.0625 (1/16) 1.587 mm .728 18.50 mm (10x) 3 mm 63 mm EXP0625-C3 $52.50 00000271
.0625 (1/16) 1.587 mm .866 22.00 mm (12x) 3 mm 63 mm CHT0625-C3 $54.00 00000272
.0635 #52 1.612 mm .299 7.60 mm (3x) 3 mm 50 mm DHE0635-C3 $47.40 00000273
.0635 #52 1.612 mm .433 11.00 mm (5x) 3 mm 50 mm BVT0635-C3 $48.20 00000274
.0635 #52 1.612 mm .610 15.50 mm (8x) 3 mm 50 mm ADS0635-C3 $51.00 00000275
.0635 #52 1.612 mm .748 19.00 mm (10x) 3 mm 63 mm EXP0635-C3 $52.50 00000276
.0635 #52 1.612 mm .866 22.00 mm (12x) 3 mm 63 mm CHT0635-C3 $54.00 00000277
.0670 #51 1.701 mm .315 8.00 mm (3x) 3 mm 50 mm DHE0670-C3 $47.40 00000278
.0670 #51 1.701 mm .453 11.50 mm (5x) 3 mm 50 mm BVT0670-C3 $48.20 00000279
.0670 #51 1.701 mm .650 16.50 mm (8x) 3 mm 63 mm ADS0670-C3 $51.00 00000280
.0670 #51 1.701 mm .787 20.00 mm (10x) 3 mm 63 mm EXP0670-C3 $52.50 00000281
.0670 #51 1.701 mm .906 23.00 mm (12x) 3 mm 63 mm CHT0670-C3 $54.00 00000282
.0700 #50 1.778 mm .335 8.50 mm (3x) 3 mm 50 mm DHE0700-C3 $47.40 00000283
.0700 #50 1.778 mm .472
