Miniature High Performance Drills - Hardened Steels

Holemaking & Threading
Miniature High Performance Drills - Hardened Steels

Holemaking & Threading

Optimized for drilling hardened tool, die, and mold steels 46Rc to 68Rc with outstanding performance in high temperature alloys and difficult-to-machine steels, this offering of High Performance Miniature Drills are available for 3x, 5x, 8x, 10x, and 12x hole depths.

  • 140° point angle
  • Specialized flute shape for improved chip evacuation and maximum rigidity

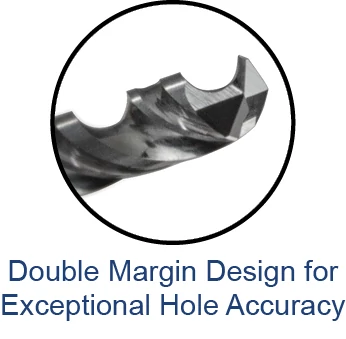

  • Double margin design for exceptional hole accuracy and finish
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Select carbide grade for improved tool life
  • CNC ground in the USA

Advanced Search

DRILL
DIAMETER		 FLUTE
LENGTH		 SHANK
DIAMETER		 OVERALL
LENGTH		 AlTiN NANO COATED Add to Cart Default Sort
inch wire mm
D1 +.000mm/-.013mm		 inch mm
L2 +.25mm/-.00mm		 hole depth D2 (h6) L1 2 FL PRICE
.0100 #87 .254 mm .047 1.20 mm (3x) 3 mm 50 mm CSG0100-C6 $39.70 00000001
.0110 #85 .279 mm .053 1.35 mm (3x) 3 mm 50 mm CSG0110-C6 $39.70 00000002
.0120 #83 .304 mm .057 1.45 mm (3x) 3 mm 50 mm CSG0120-C6 $39.70 00000003
.0130 #81 .330 mm .061 1.55 mm (3x) 3 mm 50 mm CSG0130-C6 $39.70 00000004
.0144 #79 .368 mm .069 1.75 mm (3x) 3 mm 50 mm CSG0144-C6 $39.70 00000005
.0150 .381 mm .071 1.80 mm (3x) 3 mm 50 mm CSG0150-C6 $39.70 00000006
.0150 .381 mm .102 2.60 mm (5x) 3 mm 50 mm BGN0150-C6 $41.00 00000007
.0150 .381 mm .146 3.70 mm (8x) 3 mm 50 mm ARY0150-C6 $41.60 00000008
.0156 (1/64) .396 mm .075 1.90 mm (3x) 3 mm 50 mm CSG0156-C6 $39.70 00000009
.0156 (1/64) .396 mm .106 2.70 mm (5x) 3 mm 50 mm BGN0156-C6 $41.00 00000010
.0156 (1/64) .396 mm .154 3.90 mm (8x) 3 mm 50 mm ARY0156-C6 $41.60 00000011
.0156 (1/64) .396 mm .185 4.70 mm (10x) 3 mm 50 mm DXT0156-C6 $42.80 00000012
.0156 (1/64) .396 mm .213 5.40 mm (12x) 3 mm 50 mm EFG0156-C6 $44.10 00000013
.0160 #78 .406 mm .079 2.00 mm (3x) 3 mm 50 mm CSG0160-C6 $39.70 00000014
.0160 #78 .406 mm .106 2.70 mm (5x) 3 mm 50 mm BGN0160-C6 $41.00 00000015
.0160 #78 .406 mm .157 4.00 mm (8x) 3 mm 50 mm ARY0160-C6 $41.60 00000016
.0160 #78 .406 mm .220 5.60 mm (12x) 3 mm 50 mm EFG0160-C6 $44.10 00000017
.0170 .431 mm .083 2.10 mm (3x) 3 mm 50 mm CSG0170-C6 $39.70 00000018
.0170 .431 mm .165 4.20 mm (8x) 3 mm 50 mm ARY0170-C6 $41.60 00000019
.0180 #77 .457 mm .087 2.20 mm (3x) 3 mm 50 mm CSG0180-C6 $39.70 00000020
.0180 #77 .457 mm .122 3.10 mm (5x) 3 mm 50 mm BGN0180-C6 $41.00 00000021
.0180 #77 .457 mm .177 4.50 mm (8x) 3 mm 50 mm ARY0180-C6 $41.60 00000022
.0180 #77 .457 mm .244 6.20 mm (12x) 3 mm 50 mm EFG0180-C6 $44.10 00000023
.0190 .482 mm .091 2.30 mm (3x) 3 mm 50 mm CSG0190-C6 $38.40 00000024
.0190 .482 mm .185 4.70 mm (8x) 3 mm 50 mm ARY0190-C6 $40.20 00000025
.0196 .500 mm .094 2.40 mm (3x) 3 mm 50 mm CSG0196-C6 $38.40 00000026
.0196 .500 mm .134 3.40 mm (5x) 3 mm 50 mm BGN0196-C6 $39.20 00000027
.0196 .500 mm .193 4.90 mm (8x) 3 mm 50 mm ARY0196-C6 $40.20 00000028
.0196 .500 mm .228 5.80 mm (10x) 3 mm 50 mm DXT0196-C6 $41.50 00000029
.0196 .500 mm .268 6.80 mm (12x) 3 mm 50 mm EFG0196-C6 $42.80 00000030
.0200 #76 .508 mm .094 2.40 mm (3x) 3 mm 50 mm CSG0200-C6 $38.40 00000031
.0200 #76 .508 mm .134 3.40 mm (5x) 3 mm 50 mm BGN0200-C6 $39.20 00000032
.0200 #76 .508 mm .197 5.00 mm (8x) 3 mm 50 mm ARY0200-C6 $40.20 00000033
.0200 #76 .508 mm .276 7.00 mm (12x) 3 mm 50 mm EFG0200-C6 $42.80 00000034
.0210 #75 .533 mm .098 2.50 mm (3x) 3 mm 50 mm CSG0210-C6 $38.40 00000035
.0210 #75 .533 mm .142 3.60 mm (5x) 3 mm 50 mm BGN0210-C6 $39.20 00000036
.0210 #75 .533 mm .205 5.20 mm (8x) 3 mm 50 mm ARY0210-C6 $40.20 00000037
.0210 #75 .533 mm .291 7.40 mm (12x) 3 mm 50 mm EFG0210-C6 $42.80 00000038
.0220 .558 mm .106 2.70 mm (3x) 3 mm 50 mm CSG0220-C6 $38.40 00000039
.0220 .558 mm .213 5.40 mm (8x) 3 mm 50 mm ARY0220-C6 $40.20 00000040
.0225 #74 .571 mm .106 2.70 mm (3x) 3 mm 50 mm CSG0225-C6 $38.40 00000041
.0225 #74 .571 mm .154 3.90 mm (5x) 3 mm 50 mm BGN0225-C6 $39.20 00000042
.0225 #74 .571 mm .220 5.60 mm (8x) 3 mm 50 mm ARY0225-C6 $40.20 00000043
.0225 #74 .571 mm .307 7.80 mm (12x) 3 mm 50 mm EFG0225-C6 $42.80 00000044
.0230 .584 mm .110 2.80 mm (3x) 3 mm 50 mm CSG0230-C6 $38.40 00000045
.0230 .584 mm .220 5.60 mm (8x) 3 mm 50 mm ARY0230-C6 $40.20 00000046
.0236 .600 mm .114 2.90 mm (3x) 3 mm 50 mm CSG0236-C6 $38.40 00000047
.0236 .600 mm .228 5.80 mm (8x) 3 mm 50 mm ARY0236-C6 $40.20 00000048
.0240 #73 .609 mm .114 2.90 mm (3x) 3 mm 50 mm CSG0240-C6 $38.40 00000049
.0240 #73 .609 mm .165 4.20 mm (5x) 3 mm 50 mm BGN0240-C6 $39.20 00000050
.0240 #73 .609 mm .236 6.00 mm (8x) 3 mm 50 mm ARY0240-C6 $40.20 00000051
.0240 #73 .609 mm .331 8.40 mm (12x) 3 mm 50 mm EFG0240-C6 $42.80 00000052
.0250 #72 .635 mm .118 3.00 mm (3x) 3 mm 50 mm CSG0250-C6 $38.40 00000053
.0250 #72 .635 mm .165 4.20 mm (5x) 3 mm 50 mm BGN0250-C6 $39.20 00000054
.0250 #72 .635 mm .244 6.20 mm (8x) 3 mm 50 mm ARY0250-C6 $40.20 00000055
.0250 #72 .635 mm .346 8.80 mm (12x) 3 mm 50 mm EFG0250-C6 $42.80 00000056
.0260 #71 .660 mm .122 3.10 mm (3x) 3 mm 50 mm CSG0260-C6 $38.40 00000057
.0260 #71 .660 mm .173 4.40 mm (5x) 3 mm 50 mm BGN0260-C6 $39.20 00000058
.0260 #71 .660 mm .252 6.40 mm (8x) 3 mm 50 mm ARY0260-C6 $40.20 00000059
.0260 #71 .660 mm .354 9.00 mm (12x) 3 mm 50 mm EFG0260-C6 $42.80 00000060
.0270 .685 mm .130 3.30 mm (3x) 3 mm 50 mm CSG0270-C6 $38.40 00000061
.0270 .685 mm .260 6.60 mm (8x) 3 mm 50 mm ARY0270-C6 $40.20 00000062
.0275 .700 mm .130 3.30 mm (3x) 3 mm 50 mm CSG0275-C6 $38.40 00000063
.0275 .700 mm .268 6.80 mm (8x) 3 mm 50 mm ARY0275-C6 $40.20 00000064
.0280 #70 .711 mm .134 3.40 mm (3x) 3 mm 50 mm CSG0280-C6 $38.40 00000065
.0280 #70 .711 mm .189 4.80 mm (5x) 3 mm 50 mm BGN0280-C6 $39.20 00000066
.0280 #70 .711 mm .276 7.00 mm (8x) 3 mm 50 mm ARY0280-C6 $40.20 00000067
.0280 #70 .711 mm .386 9.80 mm (12x) 3 mm 50 mm EFG0280-C6 $42.80 00000068
.0292 #69 .741 mm .138 3.50 mm (3x) 3 mm 50 mm CSG0292-C6 $38.40 00000069
.0292 #69 .741 mm .197 5.00 mm (5x) 3 mm 50 mm BGN0292-C6 $39.20 00000070
.0292 #69 .741 mm .283 7.20 mm (8x) 3 mm 50 mm ARY0292-C6 $40.20 00000071
.0292 #69 .741 mm .394 10.00 mm (12x) 3 mm 50 mm EFG0292-C6 $42.80 00000072
.0300 .762 mm .142 3.60 mm (3x) 3 mm 50mm CSG0300-C6 $38.90 00000073
.0300 .762 mm .205 5.20 mm (5x) 3 mm 50 mm BGN0300-C6 $39.90 00000074
.0300 .762 mm .291 7.40 mm (8x) 3 mm 50 mm ARY0300-C6 $40.20 00000075
.0310 #68 .787 mm .146 3.70 mm (3x) 3 mm 50 mm CSG0310-C6 $38.90 00000076
.0310 #68 .787 mm .213 5.40 mm (5x) 3 mm 50 mm BGN0310-C6 $39.90 00000077
.0310 #68 .787 mm .299 7.60 mm (8x) 3 mm 50 mm ARY0310-C6 $40.20 00000078
.0310 #68 .787 mm .433 11.00 mm (12x) 3 mm 50 mm EFG0310-C6 $43.60 00000079
.0312 (1/32) .793 mm .150 3.80 mm (3x) 3 mm 50 mm CSG0312-C6 $38.90 00000080
.0312 (1/32) .793 mm .213 5.40 mm (5x) 3 mm 50 mm BGN0312-C6 $39.90 00000081
.0312 (1/32) .793 mm .307 7.80 mm (8x) 3 mm 50 mm ARY0312-C6 $41.00 00000082
.0312 (1/32) .793 mm .370 9.40 mm (10x) 3 mm 50 mm DXT0312-C6 $42.30 00000083
.0312 (1/32) .793 mm .433 11.00 mm (12x) 3 mm 50 mm EFG0312-C6 $43.60 00000084
.0315 .800 mm .150 3.80 mm (3x) 3 mm 50 mm CSG0315-C6 $38.90 00000085
.0315 .800 mm .307 7.80 mm (8x) 3 mm 50 mm ARY0315-C6 $41.00 00000086
.0320 #67 .812 mm .154 3.90 mm (3x) 3 mm 50 mm CSG0320-C6 $38.90 00000087
.0320 #67 .812 mm .213 5.40 mm (5x) 3 mm 50 mm BGN0320-C6 $39.90 00000088
.0320 #67 .812 mm .315 8.00 mm (8x) 3 mm 50 mm ARY0320-C6 $41.00 00000089
.0320 #67 .812 mm .433 11.00 mm (12x) 3 mm 50 mm EFG0320-C6 $43.60 00000090
.0330 #66 .838 mm .157 4.00 mm (3x) 3 mm 50 mm CSG0330-C6 $38.90 00000091
.0330 #66 .838 mm .220 5.60 mm (5x) 3 mm 50 mm BGN0330-C6 $39.90 00000092
.0330 #66 .838 mm .323 8.20 mm (8x) 3 mm 50 mm ARY0330-C6 $41.00 00000093
.0330 #66 .838 mm .453 11.50 mm (12x) 3 mm 50 mm EFG0330-C6 $43.60 00000094
.0350 #65 .889 mm .165 4.20 mm (3x) 3 mm 50 mm CSG0350-C6 $38.90 00000095
.0350 #65 .889 mm .236 6.00 mm (5x) 3 mm 50 mm BGN0350-C6 $39.90 00000096
.0350 #65 .889 mm .339 8.60 mm (8x) 3 mm 50 mm ARY0350-C6 $41.00 00000097
.0350 #65 .889 mm .472 12.00 mm (12x) 3 mm 50 mm EFG0350-C6 $43.60 00000098
.0354 .900 mm .165 4.20 mm (3x) 3 mm 50 mm CSG0354-C6 $38.90 00000099
.0354 .900 mm .346 8.80 mm (8x) 3 mm 50 mm ARY0354-C6 $41.00 00000100
.0360 #64 .914 mm .173 4.40 mm (3x) 3 mm 50 mm CSG0360-C6 $38.90 00000101
.0360 #64 .914 mm .244 6.20 mm (5x) 3 mm 50 mm BGN0360-C6 $39.90 00000102
.0360 #64 .914 mm .354 9.00 mm (8x) 3 mm 50 mm ARY0360-C6 $41.00 00000103
.0360 #64 .914 mm .492 12.50 mm (12x) 3 mm 50 mm EFG0360-C6 $43.60 00000104
.0370 #63 .939 mm .173 4.40 mm (3x) 3 mm 50 mm CSG0370-C6 $38.90 00000105
.0370 #63 .939 mm .252 6.40 mm (5x) 3 mm 50 mm BGN0370-C6 $39.90 00000106
.0370 #63 .939 mm .362 9.20 mm (8x) 3 mm 50 mm ARY0370-C6 $41.00 00000107
.0370 #63 .939 mm .512 13.00 mm (12x) 3 mm 50 mm EFG0370-C6 $43.60 00000108
.0380 #62 .965 mm .181 4.60 mm (3x) 3 mm 50 mm CSG0380-C6 $38.90 00000109
.0380 #62 .965 mm .260 6.60 mm (5x) 3 mm 50 mm BGN0380-C6 $39.90 00000110
.0380 #62 .965 mm .370 9.40 mm (8x) 3 mm 50 mm ARY0380-C6 $41.00 00000111
.0380 #62 .965 mm .531 13.50 mm (12x) 3 mm 50 mm EFG0380-C6 $43.60 00000112
.0390 #61 .990 mm .189 4.80 mm (3x) 3 mm 50 mm CSG0390-C6 $38.90 00000113
.0390 #61 .990 mm .260 6.60 mm (5x) 3 mm 50 mm BGN0390-C6 $39.90 00000114
.0390 #61 .990 mm .378 9.60 mm (8x) 3 mm 50 mm ARY0390-C6 $41.00 00000115
.0390 #61 .990 mm .531 13.50 mm (12x) 3 mm 50 mm EFG0390-C6 $43.60 00000116
.0393 1.000 mm .189 4.80 mm (3x) 3 mm 50 mm CSG0393-C6 $42.30 00000117
.0393 1.000 mm .268 6.80 mm (5x) 3 mm 50 mm BGN0393-C6 $43.30 00000118
.0393 1.000 mm .386 9.80 mm (8x) 3 mm 50 mm ARY0393-C6 $43.90 00000119
.0393 1.000 mm .472 12.00 mm (10x) 3 mm 50 mm DXT0393-C6 $45.50 00000120
.0393 1.000 mm .551 14.00 mm (12x) 3 mm 50 mm EFG0393-C6 $46.80 00000121
.0400 #60 1.016 mm .189 4.80 mm (3x) 3 mm 50 mm CSG0400-C6 $42.30 00000122
.0400 #60 1.016 mm .268 6.80 mm (5x) 3 mm 50 mm BGN0400-C6 $43.30 00000123
.0400 #60 1.016 mm .394 10.00 mm (8x) 3 mm 50 mm ARY0400-C6 $43.90 00000124
.0400 #60 1.016 mm .551 14.00 mm (12x) 3 mm 50 mm EFG0400-C6 $46.80 00000125
.0410 #59 1.041 mm .197 5.00 mm (3x) 3 mm 50 mm CSG0410-C6 $42.30 00000126
.0410 #59 1.041 mm .276 7.00 mm (5x) 3 mm 50 mm BGN0410-C6 $43.30 00000127
.0410 #59 1.041 mm .394 10.00 mm (8x) 3 mm 50 mm ARY0410-C6 $43.90 00000128
.0410 #59 1.041 mm .571 14.50 mm (12x) 3 mm 50 mm EFG0410-C6 $46.80 00000129
.0420 #58 1.066 mm .197 5.00 mm (3x) 3 mm 50 mm CSG0420-C6 $42.30 00000130
.0420 #58 1.066 mm .283 7.20 mm (5x) 3 mm 50 mm BGN0420-C6 $43.30 00000131
.0420 #58 1.066 mm .413 10.50 mm (8x) 3 mm 50 mm ARY0420-C6 $43.90 00000132
.0420 #58 1.066 mm .571 14.50 mm (12x) 3 mm 50 mm EFG0420-C6 $46.80 00000133
.0430 #57 1.092 mm .205 5.20 mm (3x) 3 mm 50 mm CSG0430-C6 $42.30 00000134
.0430 #57 1.092 mm .291 7.40 mm (5x) 3 mm 50 mm BGN0430-C6 $43.30 00000135
.0430 #57 1.092 mm .413 10.50 mm (8x) 3 mm 50 mm ARY0430-C6 $43.90 00000136
.0430 #57 1.092 mm .591 15.00 mm (12x) 3 mm 50 mm EFG0430-C6 $46.80 00000137
.0450 1.143 mm .213 5.40 mm (3x) 3 mm 50 mm CSG0450-C6 $42.30 00000138
.0450 1.143 mm .307 7.80 mm (5x) 3 mm 50 mm BGN0450-C6 $43.30 00000139
.0450 1.143 mm .433 11.00 mm (8x) 3 mm 50 mm ARY0450-C6 $43.90 00000140
.0465 #56 1.181 mm .220 5.60 mm (3x) 3 mm 50 mm CSG0465-C6 $42.30 00000141
.0465 #56 1.181 mm .315 8.00 mm (5x) 3 mm 50 mm BGN0465-C6 $43.30 00000142
.0465 #56 1.181 mm .453 11.50 mm (8x) 3 mm 50 mm ARY0465-C6 $43.90 00000143
.0465 #56 1.181 mm .630 16.00 mm (12x) 3 mm 63 mm EFG0465-C6 $46.80 00000144
.0468 (3/64) 1.190 mm .220 5.60 mm (3x) 3 mm 50 mm CSG0468-C6 $42.30 00000145
.0468 (3/64) 1.190 mm .315 8.00 mm (5x) 3 mm 50 mm BGN0468-C6 $43.30 00000146
.0468 (3/64) 1.190 mm .453 11.50 mm (8x) 3 mm 50 mm ARY0468-C6 $43.90 00000147
.0468 (3/64) 1.190 mm .551 14.00 mm (10x) 3 mm 50 mm DXT0468-C6 $45.50 00000148
.0468 (3/64) 1.190 mm .650 16.50 mm (12x) 3 mm 63 mm EFG0468-C6 $46.80 00000149
.0492 1.250 mm .236 6.00 mm (3x) 3 mm 50 mm CSG0492-C6 $42.30 00000150
.0492 1.250 mm .472 12.00 mm (8x) 3 mm 50 mm ARY0492-C6 $47.10 00000151
.0500 1.270 mm .236 6.00 mm (3x) 3 mm 50 mm CSG0500-C6 $42.30 00000152
.0500 1.270 mm .335 8.50 mm (5x) 3 mm 50 mm BGN0500-C6 $43.30 00000153
.0500 1.270 mm .492 12.50 mm (8x) 3 mm 50 mm ARY0500-C6 $43.90 00000154
.0500 1.270 mm .689 17.50 mm (12x) 3 mm 63 mm EFG0500-C6 $46.80 00000155
.0520 #55 1.320 mm .244 6.20 mm (3x) 3 mm 50 mm CSG0520-C6 $42.30 00000156
.0520 #55 1.320 mm .354 9.00 mm (5x) 3 mm 50 mm BGN0520-C6 $43.30 00000157
.0520 #55 1.320 mm .512 13.00 mm (8x) 3 mm 50 mm ARY0520-C6 $43.90 00000158
.0520 #55 1.320 mm .709 18.00 mm (12x) 3 mm 63 mm EFG0520-C6 $46.80 00000159
.0550 #54 1.397 mm .260 6.60 mm (3x) 3 mm 50 mm CSG0550-C6 $42.30 00000160
.0550 #54 1.397 mm .374 9.50 mm (5x) 3 mm 50 mm BGN0550-C6 $43.30 00000161
.0550 #54 1.397 mm .531 13.50 mm (8x) 3 mm 50 mm ARY0550-C6 $43.90 00000162
.0550 #54 1.397 mm .748 19.00 mm (12x) 3 mm 63 mm EFG0550-C6 $46.80 00000163
.0590 1.500 mm .283 7.20 mm (3x) 3 mm 50 mm CSG0590-C6 $45.60 00000164
.0590 1.500 mm .394 10.00 mm (5x) 3 mm 50 mm BGN0590-C6 $46.50 00000165
.0590 1.500 mm .571 14.50 mm (8x) 3 mm 50 mm ARY0590-C6 $47.10 00000166
.0590 1.500 mm .689 17.50 mm (10x) 3 mm 63 mm DXT0590-C6 $48.40 00000167
.0590 1.500 mm .827 21.00 mm (12x) 3 mm 63 mm EFG0590-C6 $49.80 00000168
.0595 #53 1.511 mm .283 7.20 mm (3x) 3 mm 50 mm CSG0595-C6 $45.60 00000169
.0595 #53 1.511 mm .394 10.00 mm (5x) 3 mm 50 mm BGN0595-C6 $46.50 00000170
.0595 #53 1.511 mm .571 14.50 mm (8x) 3 mm 50 mm ARY0595-C6 $47.10 00000171
.0595 #53 1.511 mm .827 21.00 mm (12x) 3 mm 63 mm EFG0595-C6 $49.80 00000172
.0600 1.524 mm .283 7.20 mm (3x) 3 mm 50 mm CSG0600-C6 $45.60 00000173
.0600 1.524 mm .591 15.00 mm (8x) 3 mm 50 mm ARY0600-C6 $47.10 00000174
.0625 (1/16) 1.587 mm .299 7.60 mm (3x) 3 mm 50 mm CSG0625-C6 $45.60 00000175
.0625 (1/16) 1.587 mm .413 10.50 mm (5x) 3 mm 50 mm BGN0625-C6 $46.50 00000176
.0625 (1/16) 1.587 mm .610 15.50 mm (8x) 3 mm 50 mm ARY0625-C6 $47.10 00000177
.0625 (1/16) 1.587 mm .728 18.50 mm (10x) 3 mm 63 mm DXT0625-C6 $48.40 00000178
.0625 (1/16) 1.587 mm .866 22.00 mm (12x) 3 mm 63 mm EFG0625-C6 $49.80 00000179
.0635 #52 1.612 mm .299 7.60 mm (3x) 3 mm 50 mm CSG0635-C6 $45.60 00000180
.0635 #52 1.612 mm .433 11.00 mm (5x) 3 mm 50 mm BGN0635-C6 $46.50 00000181
.0635 #52 1.612 mm .610 15.50 mm (8x) 3 mm 50 mm ARY0635-C6 $47.10 00000182
.0635 #52 1.612 mm .866 22.00 mm (12x) 3 mm 63 mm EFG0635-C6 $49.80 00000183
.0670 #51 1.701 mm .315 8.00 mm (3x) 3 mm 50 mm CSG0670-C6 $45.60 00000184
.0670 #51 1.701 mm .453 11.50 mm (5x) 3 mm 50 mm BGN0670-C6 $46.50 00000185
.0670 #51 1.701 mm .650 16.50 mm (8x) 3 mm 63 mm ARY0670-C6 $47.10 00000186
.0670 #51 1.701 mm .906 23.00 mm (12x) 3 mm 63 mm EFG0670-C6 $49.80 00000187
.0700 #50 1.778 mm .335 8.50 mm (3x) 3 mm 50 mm CSG0700-C6 $45.60 00000188
.0700 #50 1.778 mm .472 12.00 mm (5x) 3 mm 50 mm BGN0700-C6 $46.50 00000189
.0700 #50 1.778 mm .689 17.50 mm (8x) 3 mm 63 mm ARY0700-C6 $47.10 00000190
.0700 #50 1.778 mm .945 24.00 mm (12x) 3 mm 63 mm EFG0700-C6 $49.80 00000191
.0730 #49 1.854 mm .354 9.00 mm (3x) 3 mm 50 mm CSG0730-C6 $45.60 00000192
.0730 #49 1.854 mm .492 12.50 mm (5x) 3 mm 50 mm BGN0730-C6 $46.50 00000193
.0730 #49 1.854 mm .709 18.00 mm (8x) 3 mm 63 mm ARY0730-C6 $47.10 00000194
.0730 #49 1.854 mm .984 25.00 mm (12x) 3 mm 63 mm EFG0730-C6 $49.80 00000195
.0760 #48 1.930 mm .354 9.00 mm (3x) 3 mm 50 mm CSG0760-C6 $45.60 00000196
.0760 #48 1.930 mm .512 13.00 mm (5x) 3 mm 50 mm BGN0760-C6 $46.50 00000197
.0760 #48 1.930 mm .748 19.00 mm (8x) 3 mm 63 mm ARY0760-C6 $47.10 00000198
.0760 #48 1.930 mm 1.063 27.00 mm (12x) 3 mm 63 mm EFG0760-C6 $49.80 00000199
.0781 (5/64) 1.984 mm .374 9.50 mm (3x) 3 mm 50 mm CSG0781-C6 $45.60 00000200
.0781 (5/64) 1.984 mm .531 13.50 mm (5x) 3 mm 50 mm BGN0781-C6 $46.50 00000201
.0781 (5/64) 1.984 mm .768 19.50 mm (8x) 3 mm 63 mm ARY0781-C6 $47.10 00000202
.0781 (5/64) 1.984 mm .906 23.00 mm (10x) 3 mm 63 mm DXT0781-C6 $48.40 00000203
.0781 (5/64) 1.984 mm 1.063 27.00 mm (12x) 3 mm 63 mm EFG0781-C6 $49.80 00000204
.0785 #47 1.993 mm .374 9.50 mm (3x) 3 mm 50 mm CSG0785-C6 $48.70 00000205
.0785 #47 1.993 mm .531 13.50 mm (5x) 3 mm 50 mm BGN0785-C6 $50.10 00000206
.0785 #47 1.993 mm .768 19.50 mm (8x) 3 mm 63 mm ARY0785-C6 $47.10 00000207
.0785 #47 1.993 mm 1.063 27.00 mm (12x) 3 mm 63 mm EFG0785-C6 $54.00 00000208
.0787 2.000 mm .374 9.50 mm (3x) 4 mm 50 mm CSG0787-C6 $48.70 00000209
.0787 2.000 mm .531 13.50 mm (5x) 4 mm 50 mm BGN0787-C6 $50.10 00000210
.0787 2.000 mm .768 19.50 mm (8x) 4 mm 63 mm ARY0787-C6 $51.30 00000211
.0787 2.000 mm .945 24.00 mm (10x) 4 mm 63 mm DXT0787-C6 $52.60 00000212
.0787 2.000 mm 1.102 28.00 mm (12x) 4 mm 63 mm EFG0787-C6 $54.00 00000213
.0800 2.032 mm .374 9.50 mm (3x) 4 mm 50 mm CSG0800-C6 $48.70 00000214
.0800 2.032 mm .787 20.00 mm (8x) 4 mm 63 mm ARY0800-C6 $51.30 00000215
.0810 #46 2.057 mm .394 10.00 mm (3x) 4 mm 50 mm CSG0810-C6 $48.70 00000216
.0810 #46 2.057 mm .551 14.00 mm (5x) 4 mm 50 mm BGN0810-C6 $50.10 00000217
.0810 #46 2.057 mm .787 20.00 mm (8x) 4 mm 63 mm ARY0810-C6 $51.30 00000218
.0810 #46 2.057 mm 1.102 28.00 mm (12x) 4 mm 63 mm EFG0810-C6 $54.00 00000219
.0820 #45 2.082 mm .394 10.00 mm (3x) 4 mm 50 mm CSG0820-C6 $48.70 00000220
.0820 #45 2.082 mm .551 14.00 mm (5x) 4 mm 50 mm BGN0820-C6 $50.10 00000221
.0820 #45 2.082 mm .787 20.00 mm (8x) 4 mm 63 mm ARY0820-C6 $51.30 00000222
.0820 #45 2.082 mm 1.142 29.00 mm (12x) 4 mm 75 mm EFG0820-C6 $54.00 00000223
.0860 #44 2.184 mm .413 10.50 mm (3x) 4 mm 50 mm CSG0860-C6 $48.70 00000224
.0860 #44 2.184 mm .571 14.50 mm (5x) 4 mm 50 mm BGN0860-C6 $50.10 00000225
.0860 #44 2.184 mm .827 21.00 mm (8x) 4 mm 63 mm ARY0860-C6 $51.30 00000226
.0860 #44 2.184 mm 1.181 30.00 mm (12x) 4 mm 75 mm EFG0860-C6 $54.00 00000227
.0890 #43 2.260 mm .413 10.50 mm (3x) 4 mm 50 mm CSG0890-C6 $48.70 00000228
.0890 #43 2.260 mm .591 15.00 mm (5x) 4 mm 50 mm BGN0890-C6 $50.10 00000229
.0890 #43 2.260 mm .866 22.00 mm (8x) 4 mm 63 mm ARY0890-C6 $51.30 00000230
.0890 #43 2.260 mm 1.220 31.00 mm (12x) 4 mm 75 mm EFG0890-C6 $54.00 00000231
.0900 2.286 mm .433 11.00 mm (3x) 4 mm 50 mm CSG0900-C6 $48.70 00000232
.0900 2.286 mm .866 22.00 mm (8x) 4 mm 63 mm ARY0900-C6 $51.30 00000233
.0935 #42 2.374 mm .453 11.50 mm (3x) 4 mm 50 mm CSG0935-C6 $48.70 00000234
.0935 #42 2.374 mm .630 16.00 mm (5x) 4 mm 63 mm BGN0935-C6 $50.10 00000235
.0935 #42 2.374 mm .906 23.00 mm (8x) 4 mm 63 mm ARY0935-C6 $51.30 00000236
.0935 #42 2.374 mm 1.299 33.00 mm (12x) 4 mm 75 mm EFG0935-C6 $54.00 00000237
.0937 (3/32) 2.381 mm .453 11.50 mm (3x) 4 mm 50 mm CSG0937-C6 $48.70 00000238
.0937 (3/32) 2.381 mm .630 16.00 mm (5x) 4 mm 63 mm BGN0937-C6 $50.10 00000239
.0937 (3/32) 2.381 mm .906 23.00 mm (8x) 4 mm 63 mm ARY0937-C6 $51.30 00000240
.0937 (3/32) 2.381 mm 1.102 28.00 mm (10x) 4 mm 63 mm DXT0937-C6 $52.60 00000241
.0937 (3/32) 2.381 mm 1.299 33.00 mm (12x) 4 mm 75 mm EFG0937-C6 $54.00 00000242
.0960 #41 2.438 mm .453 11.50 mm (3x) 4 mm 50 mm CSG0960-C6 $48.70 00000243
.0960 #41 2.438 mm .630 16.00 mm (5x) 4 mm 63 mm BGN0960-C6 $50.10 00000244
.0960 #41 2.438 mm .945 24.00 mm (8x) 4 mm 63 mm ARY0960-C6 $51.30 00000245
.0960 #41 2.438 mm 1.339 34.00 mm (12x) 4 mm 75 mm EFG0960-C6 $54.00 00000246
.0980 #40 2.489 mm .472 12.00 mm (3x) 4 mm 50 mm CSG0980-C6 $48.70 00000247
.0980 #40 2.489 mm .669 17.00 mm (5x) 4 mm 63 mm BGN0980-C6 $50.10 00000248
.0980 #40 2.489 mm .945 24.00 mm (8x) 4 mm 63 mm ARY0980-C6 $51.30 00000249
.0980 #40 2.489 mm 1.339 34.00 mm (12x) 4 mm 75 mm EFG0980-C6 $54.00 00000250
.0984 2.500 mm .472 12.00 mm (3x) 4 mm 50 mm CSG0984-C6 $51.60 00000251
.0984 2.500 mm .669 17.00 mm (5x) 4 mm 63 mm BGN0984-C6 $53.20 00000252
.0984 2.500 mm .945 24.00 mm (8x) 4 mm 63 mm ARY0984-C6 $54.50 00000253
.0984 2.500 mm 1.339 34.00 mm (12x) 4 mm 75 mm EFG0984-C6 $55.80 00000254
.0995 #39 2.527 mm .472 12.00 mm (3x) 4 mm 50 mm CSG0995-C6 $51.60 00000255
.0995 #39 2.527 mm .669 17.00 mm (5x) 4 mm 63 mm BGN0995-C6 $53.20 00000256
.0995 #39 2.527 mm .984 25.00 mm (8x) 4 mm 63 mm ARY0995-C6 $54.50 00000257
.0995 #39 2.527 mm 1.378 35.00 mm (12x) 4 mm 75 mm EFG0995-C6 $57.20 00000258
.1000 2.540 mm .472 12.00 mm (3x) 4 mm 50 mm CSG1000-C6 $51.60 00000259
.1000 2.540 mm .669 17.00 mm (5x) 4 mm 63 mm BGN1000-C6 $53.20 00000260
.1000 2.540 mm .984 25.00 mm (8x) 4 mm 63 mm ARY1000-C6 $54.50 00000261
.1015 #38 2.578 mm .472 12.00 mm (3x) 4 mm 50 mm CSG1015-C6 $51.60 00000262
.1015 #38 2.578 mm .669 17.00 mm (5x) 4 mm 63 mm BGN1015-C6 $53.20 00000263
.1015 #38 2.578 mm .984 25.00 mm (8x) 4 mm 63 mm ARY1015-C6 $54.50 00000264
.1015 #38 2.578 mm 1.378 35.00 mm (12x) 4 mm 75 mm EFG1015-C6 $57.20 00000265
.1040 #37 2.641 mm .492 12.50 mm (3x) 4 mm 50 mm CSG1040-C6 $51.60 00000266
.1040 #37 2.641 mm .709 18.00 mm (5x) 4 mm 63 mm BGN1040-C6 $53.20 00000267
.1040 #37 2.641 mm 1.024 26.00 mm (8x) 4 mm 63 mm ARY1040-C6 $54.50 00000268
.1040 #37 2.641 mm 1.417 36.00 mm (12x) 4 mm 75 mm EFG1040-C6 $57.20 00000269
.1065 #36 2.705 mm .512 13.00 mm (3x) 4 mm 50 mm CSG1065-C6 $51.60 00000270
.1065 #36 2.705 mm .709 18.00 mm (5x) 4 mm 63 mm BGN1065-C6 $53.20 00000271
.1065 #36 2.705 mm 1.024 26.00 mm (8x) 4 mm 63 mm ARY1065-C6 $54.50 00000272
.1065 #36 2.705 mm 1.457 37.00 mm (12x) 4 mm 75 mm EFG1065-C6 $57.20 00000273
.1093 (7/64) 2.778 mm .512 13.00 mm (3x) 4 mm 50 mm CSG1093-C6 $51.60 00000274
.1093 (7/64) 2.778 mm .748 19.00 mm (5x) 4 mm 63 mm BGN1093-C6 $53.20 00000275
.1093 (7/64) 2.778 mm 1.063 27.00 mm (8x) 4 mm 63 mm ARY1093-C6 $54.50 00000276
.1093 (7/64) 2.778 mm 1.299 33.00 mm (10x) 4 mm 75 mm DXT1093-C6 $55.80 00000277
.1093 (7/64) 2.778 mm 1.496 38.00 mm (12x) 4 mm 75 mm EFG1093-C6 $57.20 00000278
.1100 #35 2.794 mm .531 13.50 mm (3x) 4 mm 50 mm CSG1100-C6 $51.60 00000279
.1100 #35 2.794 mm .748 19.00 mm (5x) 4 mm 63 mm BGN1100-C6 $53.20 00000280
.1100 #35 2.794 mm 1.063 27.00 mm (8x) 4 mm 63 mm ARY1100-C6 $54.50 00000281
.1100 #35 2.794 mm 1.496 38.00 mm (12x) 4 mm 75 mm EFG1100-C6 $57.20 00000282
.1110 #34 2.819 mm .531 13.50 mm (3x) 4 mm 50 mm CSG1110-C6 $51.60 00000283
.1110 #34 2.819 mm .748 19.00 mm (5x) 4 mm 63 mm BGN1110-C6 $53.20 00000284
.1110 #34 2.819 mm 1.063 27.00 mm (8x) 4 mm 63 mm ARY1110-C6 $54.50 00000285
.1110 #34 2.819 mm 1.535 39.00 mm (12x) 4 mm 75 mm EFG1110-C6 $57.20 00000286
.1130 #33 2.870 mm .531 13.50 mm (3x) 4 mm 50 mm CSG1130-C6 $51.60 00000287
.1130 #33 2.870 mm .748 19.00 mm (5x) 4 mm 63 mm BGN1130-C6 $53.20 00000288
.1130 #33 2.870 mm 1.102 28.00 mm (8x) 4 mm 63 mm ARY1130-C6 $54.50
